Product Description

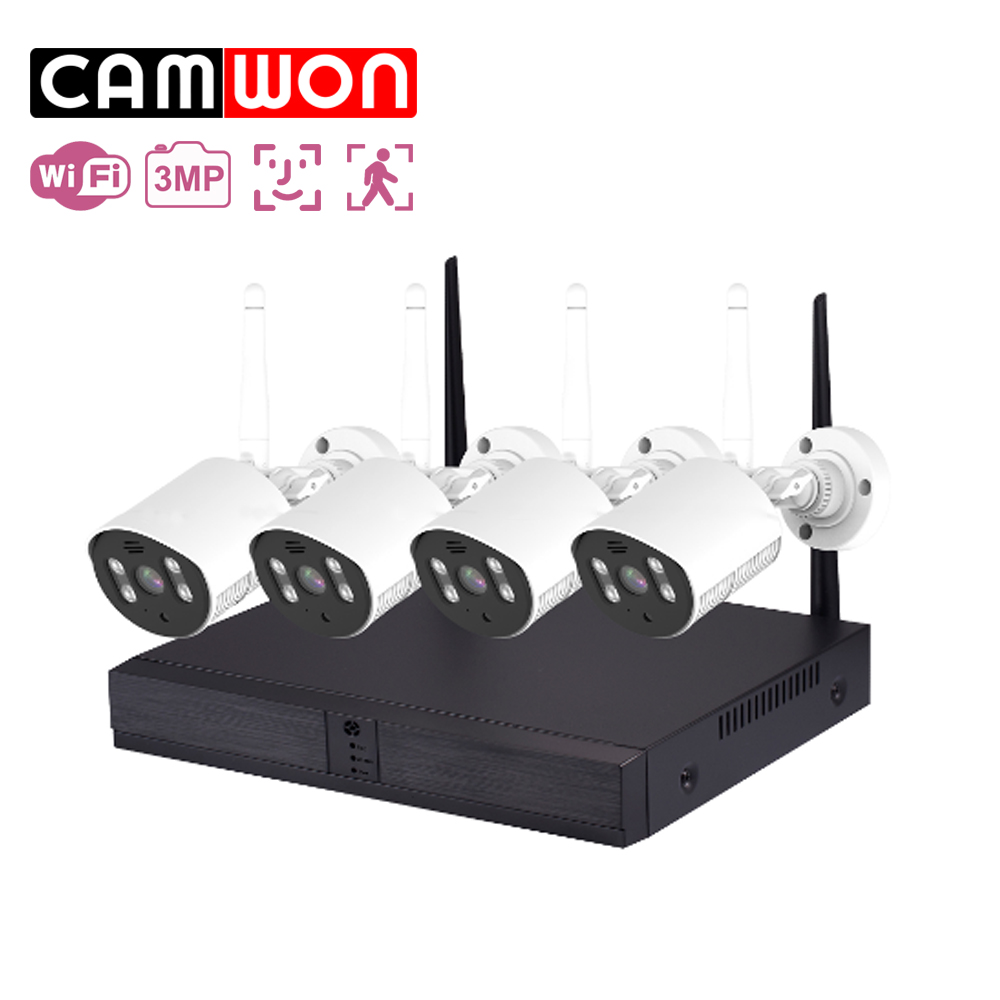

▪ 4CH Wireless IP NVR Kit
▪ The app is XMeye
▪ Built in MIC and Speaker
▪ Support AI Face Detection
▪ Support HDD and TF card Storage
▪ Colorful Night Vision
Package:
▪ 4CH H.265 NVR x 1
▪ 3Mp IP Cameras x 4
▪ DC 12V 1A Power Adapter x 5
▪ USB Mouse x 1
▪ User Manual x 1
▪ Screw Bag x 4
| System | Main processor | 3536D |
| Operating System | Embedded Linux | |
| System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
| Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
| Preview | 1/4/8/9 | |
| Video input (IP) | 8*1080P | |
| Access bandwidth | 24Mbps | |
| Forwarding bandwidth | 24Mbps | |
| Video compression | H.265+ | |
| Display quality | Max 3MP | |
| Playback quality | 3MP | |
| Decode | 4*3MP | |
| Face Detection | Support(depend on camera) | |
| Human Detection | Support(depend on camera) | |
| Audio | Audio compression | G.711A |
| Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
| Local payback | 4*3MP | |
| Search mode | Search by Time/Calendar/Event/Channel | |
| Record storage | HDD,Network | |
| Backup mode | Network backup, USB hard disk | |
| External Interface | Video output | 1ch VGA,1ch HDMI output |
| Audio I/O | 0/1 | |
| Network interface | 1*RJ45 10M/100M Adaptive Ethernet port+8ch WIFI | |
| USB interface | 2*USB2.0 ports | |
| HDD | 1* SATA(Up to 4TB for each disk) | |
| Other | ONVIF | YES |
| Power supply | 12V/2A | |
| Power Consumption | <10W(Without HDD) | |
| Working Environment | Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp | |
| Dimension | 254mm*215mm*42mm | |
| Weight | 1.05KG | |
| WiFi Camera Specification | ||
| To configure | Processor | XM530Ai |
| Low illumination | Color: 0.1 Lux; B/W: 0.01 Lux | |
| Effective pixel | HD 3MP | |
| Lens | 3.6MM | |
| Infrared Leds | 4pcs | |
| Infrared distance | 15~25m | |
| Day&night | IR cut filter with auto switch | |
| General | setting | Saturation, brightness and contrast ; are adjustable through IE browser or client software. |
| Video compression | H.265+ | |
| temperature | -10℃-＋60℃ | |
| humidity | 10%-90% RH | |
| Power supply | DC12V 1A | |
| Consumption | MAX 6W | |
| Waterproof grade | IP66 | |
| Weight | 0.35 kg | |
| Box size(mm)/weight | 1pcs/CTN: 315*175*270mm ; 2.7KG | |
| Carton size(mm)/weight | 6pcs/CTN: 565*340*560mm ; 17KG | |
