Product Description

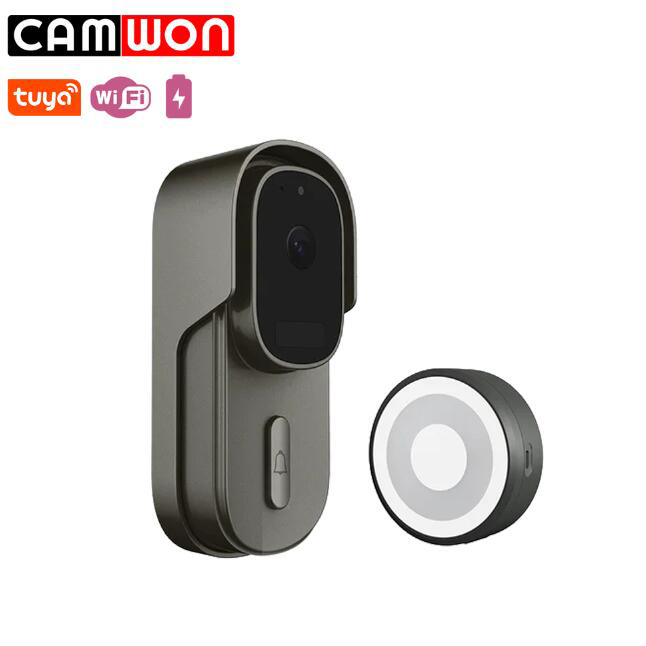

Doorbell Wi-Fi Camera
▪ 3-4 Month's endurence
(Will Need 2pcs Battery Model 18650)
▪ Support Local SD Card & Cloud Storage
▪ 130° wide-angle, 6pcs Infra-Red LED Lights, IR Range: 8-15m
▪ PIR motion detection
▪ High Quality Dual-Way Audio
| Model No. | WIP-TY400H | ||||||
| APP | Tuya | ||||||
| Image Sensor | Sensor | 1/3" color CMOS Sensor, 2-Mega pixel | |||||
| Viewing Angle | 130° | ||||||
| Minimum Illumination | 0.01 Lux | ||||||
| Audio | Input/Output | Two-way voice intercom available (built-in Microphone and speaker) | |||||
| Video | Video Compressing Method | H.265 (support H.264, H.265) | |||||
| Image Frame Rate | 1/25~1/100,000 per second | ||||||
| Maximum Image Resolution | 1920*1080P | ||||||
| Light Source for Night Vision | IRCUT double optical filter automatic switching, and 4pcs 850nm LED Light IR Distance: 7M | ||||||
| Network | Wireless Network | 2.4G Wi-Fi (IEEE802.11b/g/n) | |||||
| Protocol Supported | TCP/IP, HTTP, DHCP, DNS | ||||||
| Alarm Notification | Alarm Methods | Alarm push by mobile APP | |||||
| Wake-up | Wake-up Method | PIR motion detection wake-up, ringing doorbell wake-up, remote APP live wake-up | |||||
| Video Recording | Recording Method | Alarm triggered recording and manual recording | |||||
| Video Storage | Cloud & local Micro SD card storage (max. 128G) | ||||||
| Battery | Capacity | 2*18650 battery, 5200mAh | |||||
| Removability | removable | ||||||
| Battery Life | around 3 months ( If trigger 20 times everyday) | ||||||
| Standby Time | 1 year | ||||||
| Charging Voltage | DC5V/2A(USB-Type C Port) | ||||||
| Charge Time | < 8 hours | ||||||
| Power Consumption | Working Current | 200mA | |||||
| Standby Current | 1.5mA | ||||||
| Interfaces | Power Supply | 1 USB-Type C Port | |||||
| SD Card | 1 Micro SD card (up to 128GB supported) | ||||||
| Button | 1 Reset button, 1 Doorbell Button | ||||||
| Power Supply | Power Supply | AC12-24V/DC12-24V (optional) | |||||
| Installation Method | Installation Method | Screw installation & Double-sided tape installation | |||||
| Environment | Dustproof and waterproof | IP65 | |||||
| Operating Environment | -20° ~ 50°C / less than 90% (no condensation) | ||||||
| Specification | Size (LxWxH) | 61*38*135mm | |||||
| Material + Process | PC+ABS | ||||||
| Color | White/Grey/Black | ||||||
| Door Chime Spec. | Working Frequency | 433Mhz | |||||
| Receiveing Range | 150M (open space) | ||||||
| Ringtones | 58 for choosen | ||||||
| Volume | 4 grade volume adjusting, 25dB ~ 85dB | ||||||
| Power Supply | DC5V, 1A (by micro usb port) | ||||||
| LED Night | * Flash blue light when doorbell ringing * White light work as a PIR night light in the night | ||||||
| Material + Process | ABS | ||||||
