Product Description

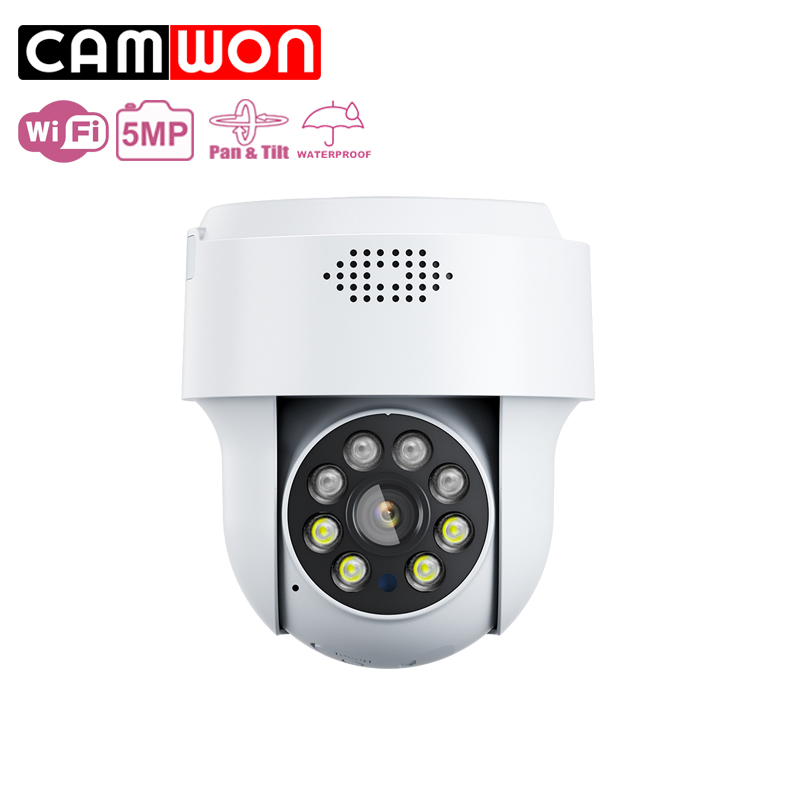

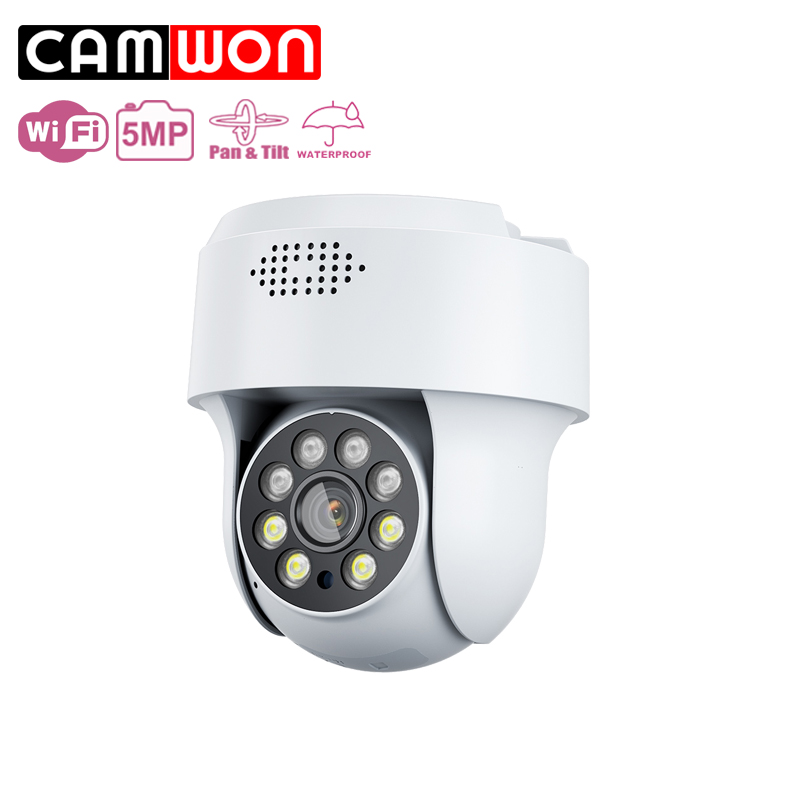

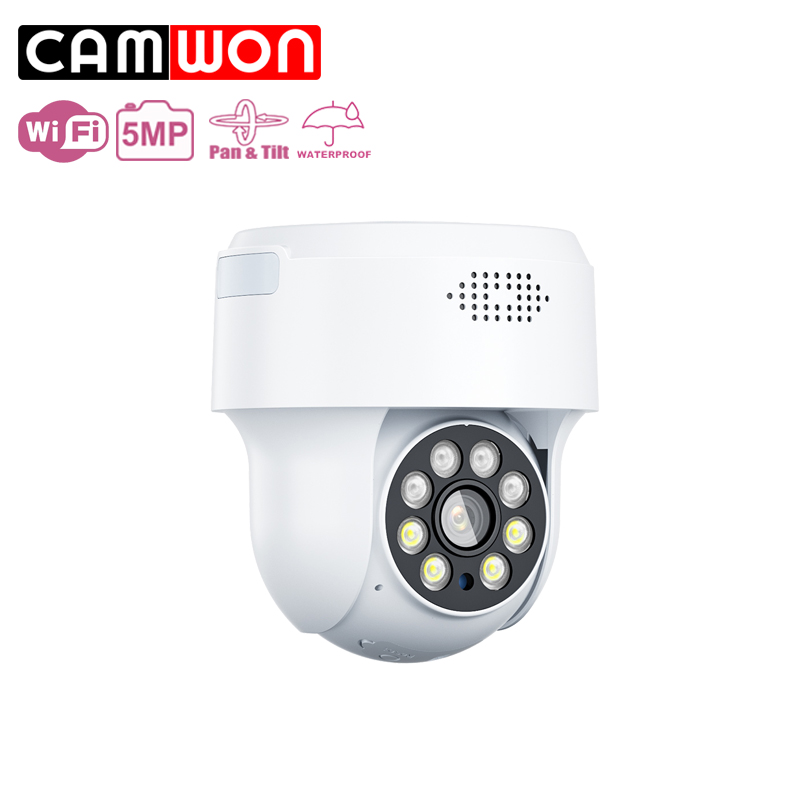

▪ 5MP Pan Tilt Dome Camera
• 5MP, 3.6mm Lens
• AI Human Tracking
▪ Support 2.4GHz & 5GHz (5Mp Series)
• Smart Dual Light Source LED (IR & Warm White)
• Night vision: Range: 25m
• Pan Range: 0°~360° endless; Tilt: 0°~90°
• Support two way audio
| Model No.: | WIP-D200K | WIP-D400K | WIP-D500K | |
| APP | Camhi Pro | |||
| Pixel | 2MP | 4MP | 5MP | |
| Chipset | T31L+GC2083 | T31X+GC4023 | T31X+SC5238 | |
| Focal Length | Fixed focus | |||
| Function | Two-way voice, humanoid tracking | |||
| Compression standard | Video compression standard | H.265 | ||
| Video compression rate | 32Kpbs-8Mpbs | |||
| Audio and video compression algorithm | G.711A | |||
| Audio input and output | Built-in pickup and speaker | |||
| Features | Memory card | Support 8G-128G TF card | ||
| Supporting agreement | Support TCP/IP, HTTP, UDP, SMTP, DNS, DDNS, NTP and other protocols | |||
| Subtitle overlay | Support channel name, date and time, superimposed subtitles can be customized by users | |||
| Motion Detection | 4 independent areas can be set | |||
| Communication Interface | 1 RJ45 10M/100M Ethernet port | |||
| Wireless standard | IEEE802.11b/g/n | |||
| WIFI performance index | Frequency Range | 2MP/4MP: 2.4 GHz | ||
| 5MP: 2.4 GHz /5.8GHz | ||||
| Channel bandwidth | 20M | |||
| Safety | WPA/WPA2, WPA-PSK/WPA2-PSK, WPS | |||
| Transmission distance | 20 meters (without obstacles) | |||
| AP（ hot port） | The camera is not connected to the network cable or is in hotspot mode before configuring the wireless function | |||
| General specification | Stand-by power consumption | Less than 4W | ||
| Working temperature | -10℃-55℃ | |||
| Control speed | Horizontal speed 0.01°～15°/S, vertical speed 0.01°～10°/S | |||
| Rotation range | 320° horizontal rotation, vertical 0°～90° automatic flip | |||
| Communication protocol | PELCO-D | |||
| Baud rate | 9600bps | |||
| Tracking function | Motion detection or humanoid tracking | |||
| Installation method | Ceiling mounted | |||
| power supply | DC12V 1A waterproof power supply | |||
| Package Size | 190*126*135MM | |||
| product weight | About 0.35kg/set (including power supply) | |||
| Turnover box size | 648*420*403MM(30PCS/box) | |||
