Product Description

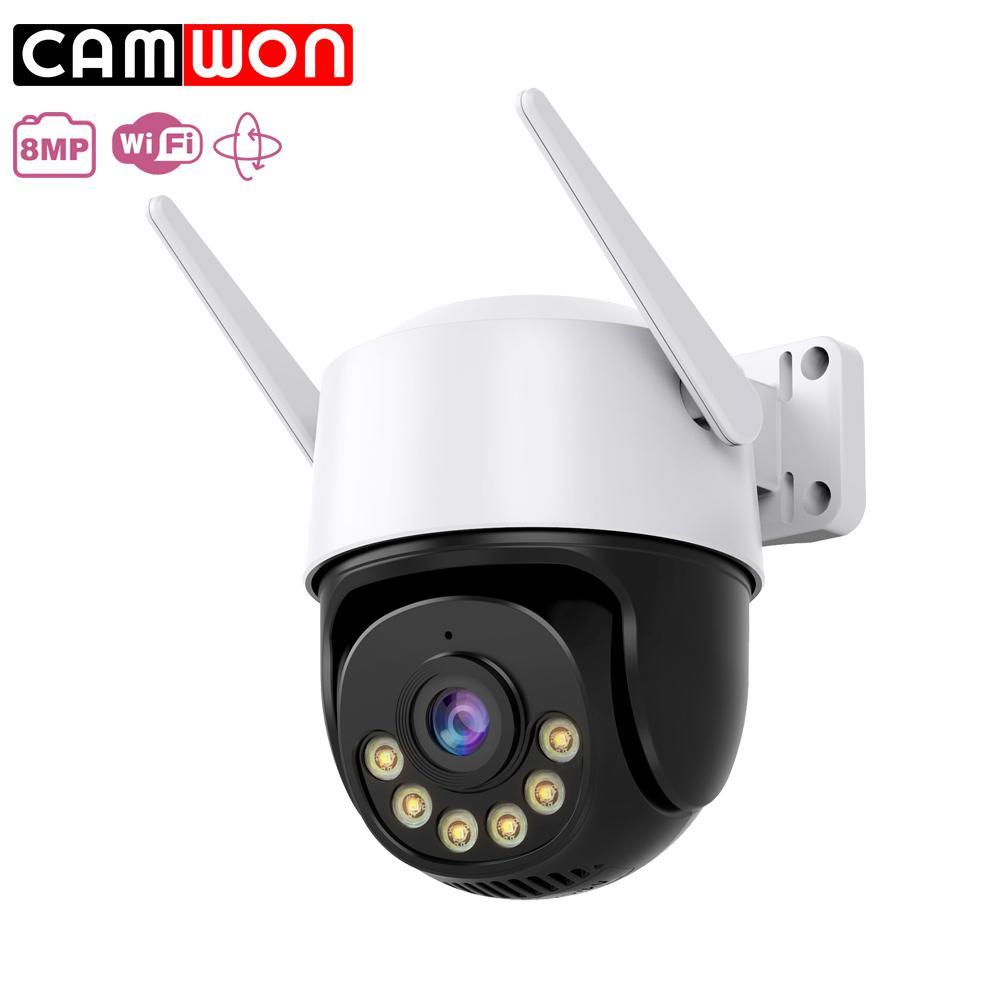

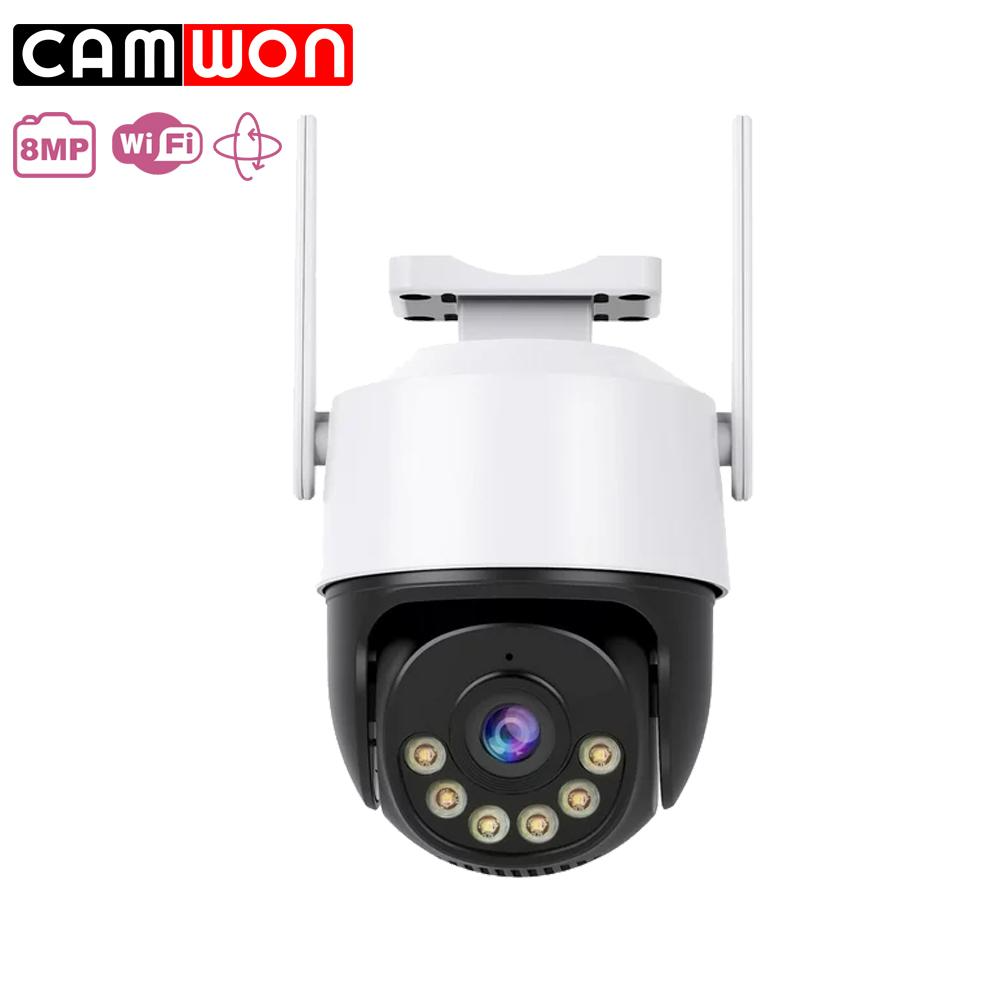

▪ 4K WiFi Pan Tilt Camera
▪ 8MP (2MP/4MP Optional)
▪ AI Human Detection
▪ Night Vision: 10-20m (IR+White Lights)
▪ Rotation angle: level 0°-355°, vertical 0°-90°
▪ IP65 Waterproof
▪ ONVIF & CMS Surveillance
▪ Power: DC12V (not included)
| APP: | ICSee | ||
| Model No.: | WIP-D200P | WIP-D400P | WIP-D800P |
| Resolution: | 2Mp, 1920*1080 | 4Mp, 2560*1440 | 8Mp, 3840x2160 |
| System structure | Dual-core 32-bit DSP (XM530V200), pure hard compression, watchdog | ||
| Sensor | 1/3.2" high performance CMOS sensor | ||
| Minimum illumination | Color: 0.01Lux @(F1.2,AGC ON); 0 Lux with IR; Black and white: 0.001 Lux @ (F1.2,AGC ON),0 Lux with IR | ||
| video processing | H.265AI encoding, dual streams, AVI format; code stream 0.1M~10Mpbs adjustable; frame rate 1~30 frames/second adjustable | ||
| Shutter | 1/50 (1/60) second to 1/10000 second | ||
| LED light | 6pcs IR + 6pcs White Lights | ||
| Day and night switching mode | Support IR-CUT | ||
| Noise reduction | Support 2D/3D noise reduction | ||
| Wide dynamic range | Support wide dynamic range | ||
| Auto iris | none | ||
| Audio processing | G.711A codec standard, supports two-way voice intercom function, supports audio and video synchronization | ||
| Audio port | 1 input, level 2Vp-p, impedance 1kΩ; 1 output, impedance 16Ω, 30mw output power | ||
| Network Interface | 1 RJ45 Ethernet interface, 10/100M adaptive | ||
| Extension ports | none | ||
| Signal interface | 1 photoresistor interface, 1 IR-CUT drive interface, supporting linkage of photoresistor input signal with IR-CUT and infrared light | ||
| PTZ interface | 1 horizontal motor interface, 1 vertical motor interface | ||
| Alarm I/O | none | ||
| Network Interface | Dual WIFI antennas, support wireless network connection | ||
| Reset key interface | Support one-key reset function | ||
| Storage method | Local TF card, maximum 128G; cloud storage | ||
| Reliability | Comprehensive lightning protection, in line with national and international standards; 7*24 hours 65℃ high temperature test is stable and reliable | ||
| Insight | Supports humanoid detection and customization of other intelligent functions | ||
| Business functions | Supports mobile client remote monitoring; supports humanoid detection and message push after alarm; supports MJPEG capture; | ||
| ONVIF | support | ||
| Power Port | DC12V | ||
