Product Description

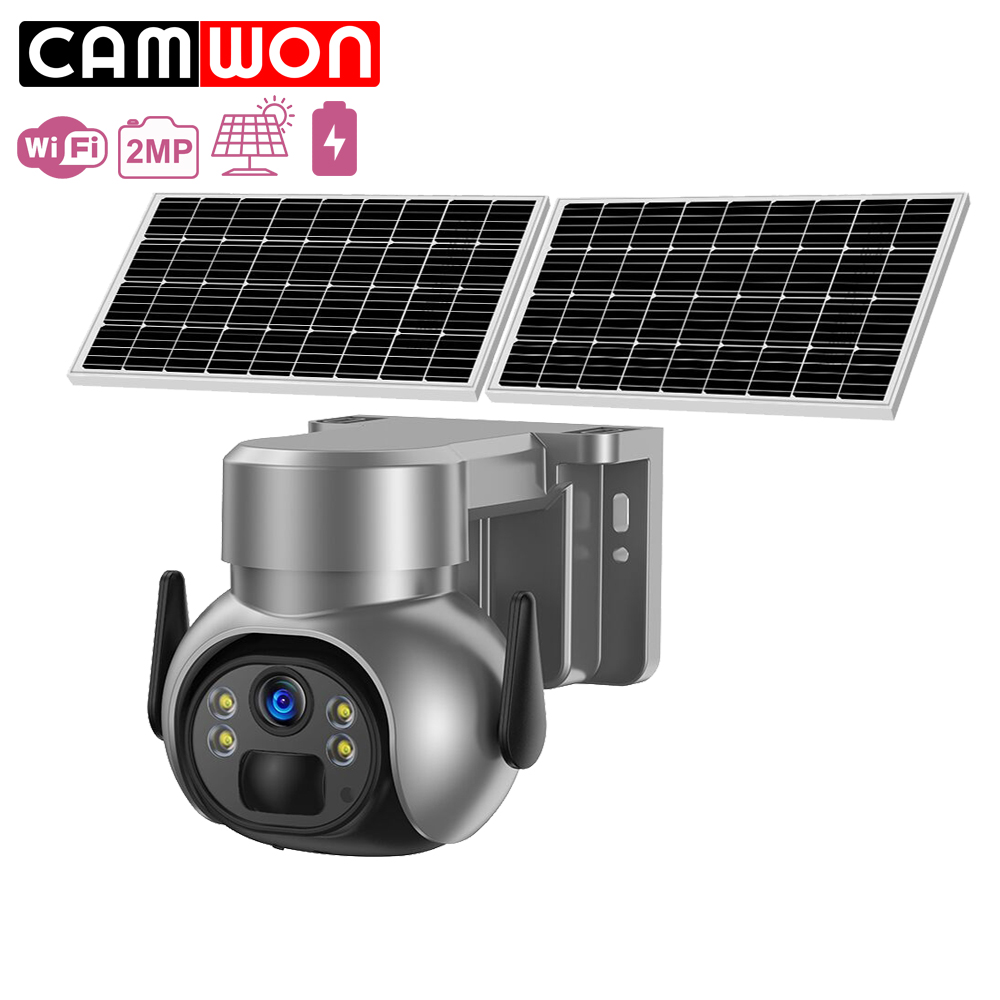

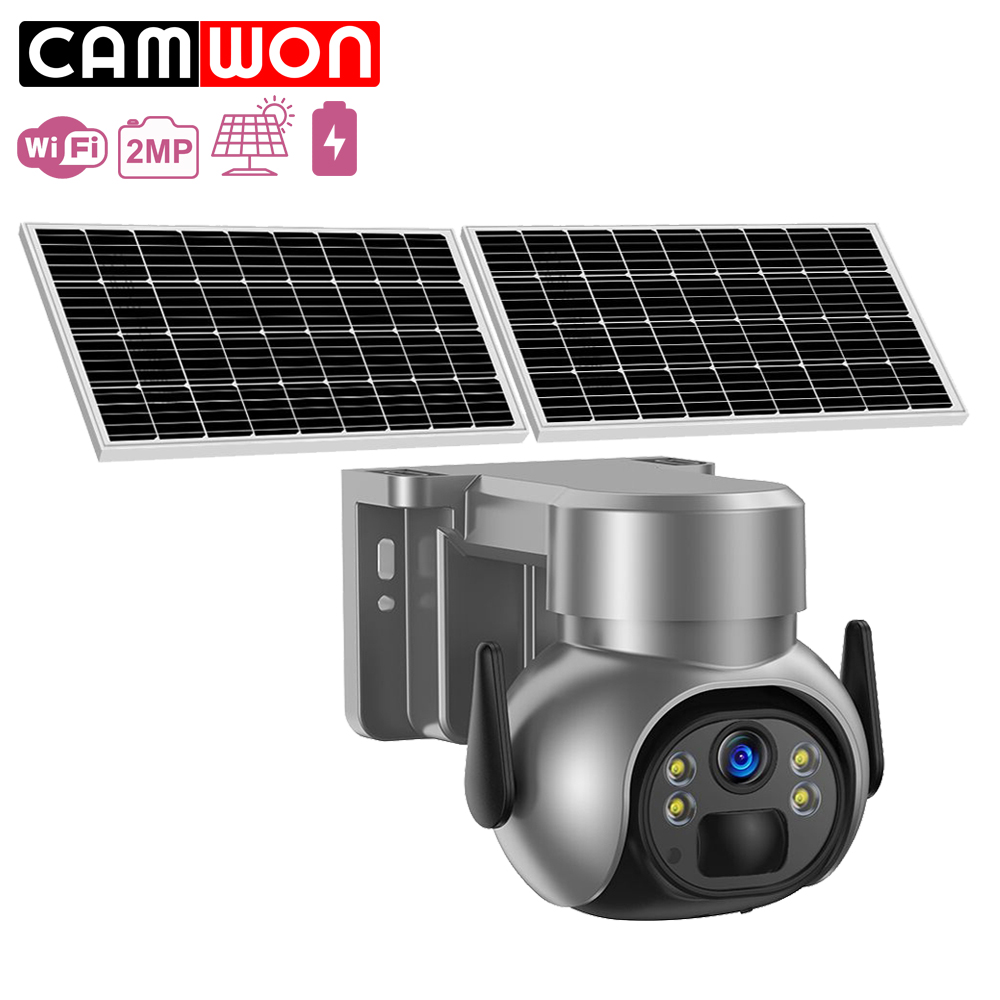

WiFi Solar PTZ Camera
▪ 15W Solar Panel & 14400mAh Battery
▪ Resolution: 2.0 Megapixe
▪ Night vision: 4pcs IR+4pcs White Lights, IR Range: 30M
▪ PIR Motion Detection
▪ Smart Dual Light Source (IR & Warm White)
▪ Material: ABS Housing, Waterproof IP66
▪ PTZ angle: horizontal: 355°; Vertical: 120°
| Model No. | WIP-B200Q | |
| APP | Camhi Pro | |
| General | Main processor | Ingenic-T31ZL |
| Operating system | LiteOS | |
| Image Senor | 1/2.8”SC2335 CMOS Sensor | |
| IR CUT | Support | |
| Compression Standard | Video compression | H.265 Main Profile |
| Audio compression | G.711 | |
| Compressed transport stream | Default 1536Kbps | |
| Image | Maximum image size | 1080P(1920x1080) |
| Video resolution | Main stream: 1080P（1920x1080） Sub stream: （640x360） | |
| Video frame rate | 1080P 20fps | |
| Character Overlay | Support OSD time and date information overlay | |
| Image setting | Adjustable brightness, contrast, saturation, up-down inversion, left-right mirroring | |
| Camera Funtion | Cloud Storage | Support alarm video storage cloud storage server (the camera needs to be connected to the Internet, and the cloud storage has been purchased) |
| Local Storage | Micro SD Card Max 128G, support alarm recording and plan recording storage | |
| Alarm linkage | Support alarm video record to SD card | |
| Alarm video duration | Support alarm recording duration setting (15 seconds and 30 seconds can be set, the default is 15 seconds) Long-term power supply dual mode | |
| PIR sensitivity | Support PIR sensitivity setting (high, medium and low levels) | |
| Leds | Support infrared light and white light dual light function | |
| Solar Panel | 15W/5V(Sufficient light for more than 10 hours can fully charge 4pcs batteries) Size: 238*172*8mm | |
| Camera wake up | Support mobile phone remote wake-up and PIR alarm wake-up (full power state, an average of 6000 wake-up times, each working time is 15 seconds) When the battery is fully charged, it can stand by for 90 days in sleep mode | |
| Internet protocol | Support TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP | |
| Interface | Audio input | Microphone input |
| Built-in microphone (output) | Speaker output | |
| Internet interface | WiFi 802.11b/g/n | |
| Others | Power | Power supply DC5V 1A, built-in four 18650 batteries, battery voltage: 3.76 ~ 4.2V |
| Power consumption | 3.3W | |
| Humidity | 0℃～+50℃ 10%～95%RH | |
| Package | Weight | 1.9KG/PCS |
| Giftbox size | 270*200*170mm | |
