Product Description

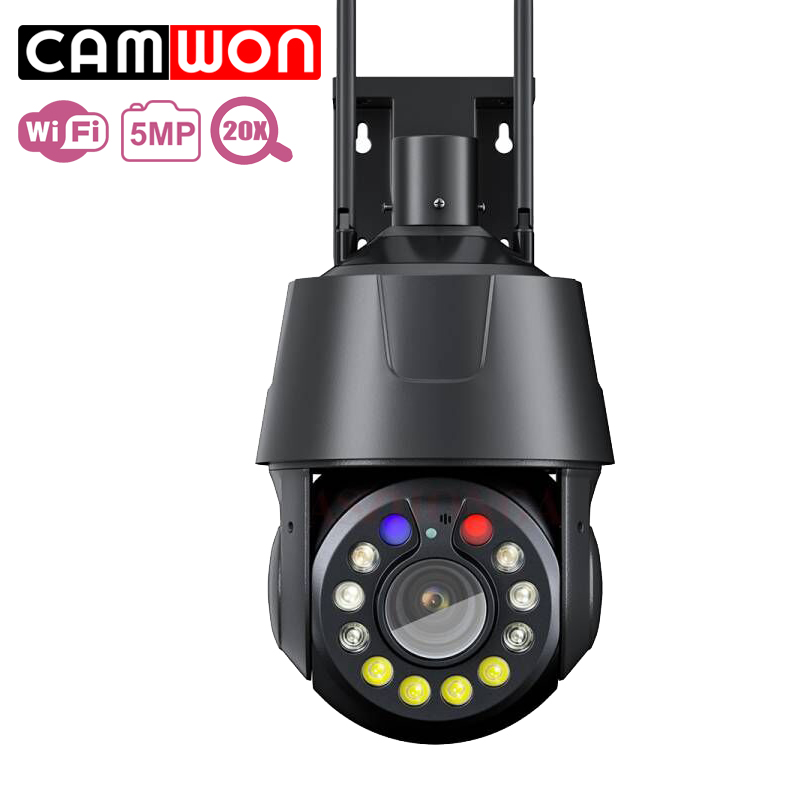

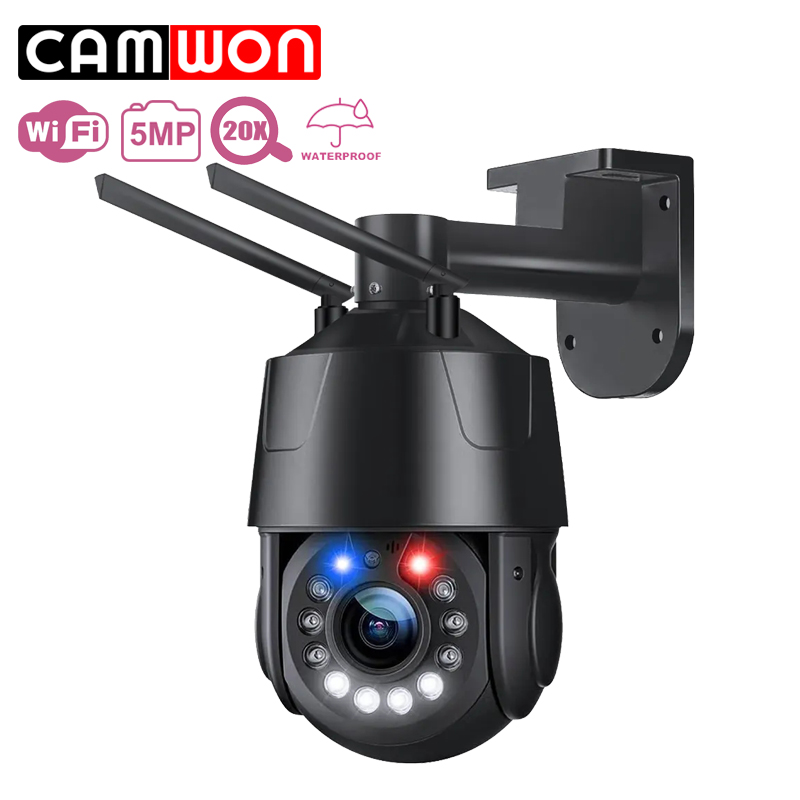

20X 5Mp PTZ WiFi Camera
• AI Human Zoom Tracking
• 2pcs Laser Light+2pcs Red and bule light
• 4pcs White LED light+4pcs IR LED, IR Distance max 200M
• Lens: 20X Optical Zoom (4.7-94mm)
• Resolution: 5.0/8.0 Megapixel
• Support Wireless and Wired Connection
• Support two way audio(built-in MIC and speakers);
• Support 128G memory card record
• IP66 Vandalproof Aluminum Shell
| Model | PTZW- IP20S500G | PTZW- IP20S800G | |
| APP | Camhi pro / Camhi | ||
| Video | Chipset | GK 7205 V300 | Sigmastar SSC338 |
| Sensor | IMX335 | IMX415 | |
| Resolution | 5MP | 8MP | |
| Frame rate | Support 1~25 frame/second adjustable | ||
| Minimum illumination | Day mode 0.1LUX, night vision mode 0.01LUX | ||
| CMOS performance | Support auto white balance, auto gain control, auto backlight compensation | ||
| Audio | Coding standard | AMR/G.711A | |
| Audio input | 1 Built-in -38dB microphone | ||
| Audio output | Built-in intercom speaker | ||
| TF Card | / | Maximum support 128G | |
| Video management | Video mode | Timing recording, alarm recording | |
| Network | Network Interface | 10Mbps/100Mbps adaptive/RJ45 interface | |
| Network protocol | TCP/IP,HTTP,TCP,UDP,SMTP,DHCP,DNS,P2P | ||
| Wireless | IEEE802.11b/g/n wireless network | ||
| Alarm | Alarm method | Motion detection (humanoid detection), vehicle recognition(Only 8MP) | |
| Alarm Output | APP push message | ||
| Other | Power | DC12V 3A | |
| Working temperature | -10-50℃ | ||
| Working humidity | ≤80%RH | ||
| power consumption | About 5W during the day, and about 12W when the infrared is turned on at night | ||
| PTZ | Rotation angle | Horizon: 0°～355°, Vertical: 0°～90° | |
| Product | Size | 311*260*170MM | |
| Quantity | 1pcs | ||
| Weight | 1.9Kg | ||
| Package | Size | 635*530*365MM | 540*535*630MM |
| Quantity | 8pcs | 12pcs | |
| Weight | 16kg | 24kg | |
