Product Description

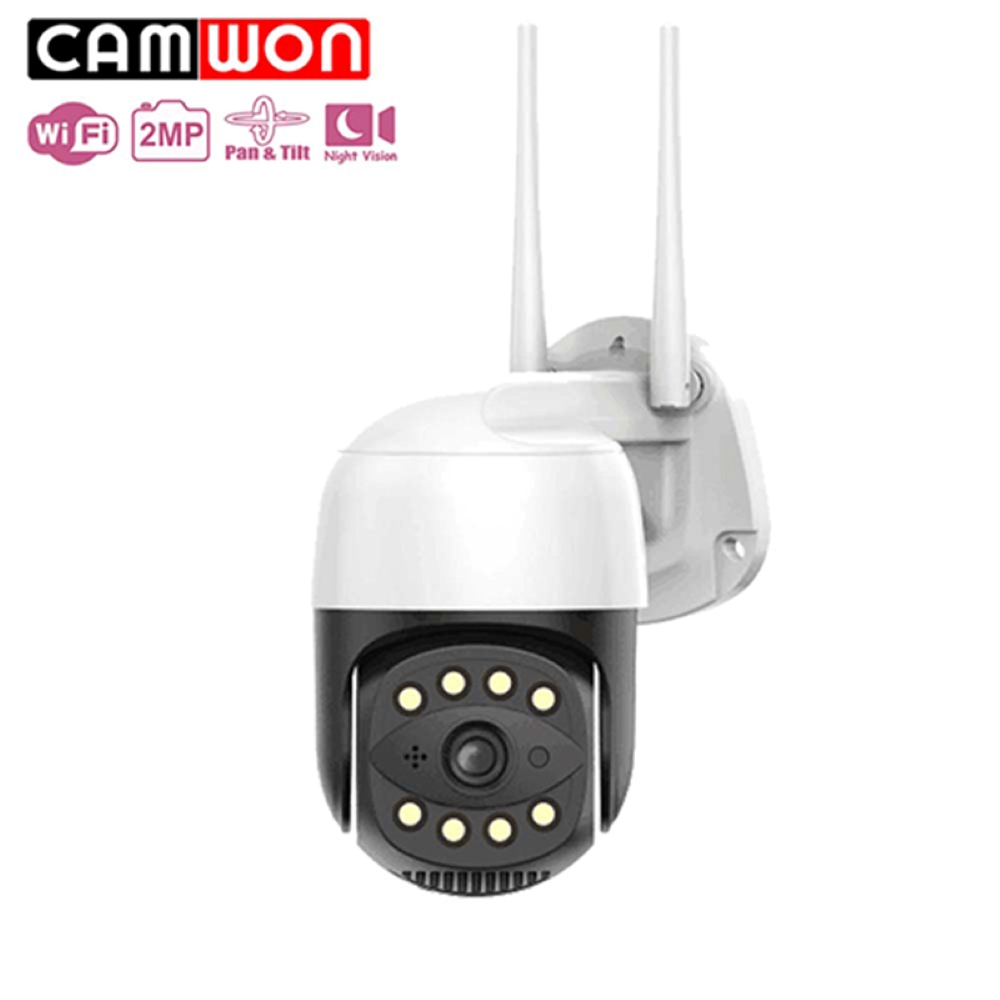

2" Pan Tilt WiFi Camera
▪ AI Human Detection
▪ Resolution: 2.0/4.0/5.0 Mepapixel
▪ Pan 0-300º & Tilt 0-90º
▪ 8pcs Smart Dual Light Source LED (IR & Warm White)
▪ Audio: Two-way Audio with built-in Mic & Speaker
▪ Local storage: Up to 128G micro SD
| APP: CamhiPro | |||
| Model: | WIP-AT200E-5MP | WIP-AT200E-2MP | |
| Camera | Imaging sensor | 1/2.7" SC5238 CMOS | 1/2.8" SC2335 CMOS |
| Chip | T31X | T31L | |
| Signal system | PAL / NTSC adjustable | ||
| Scanning Mode | Progressive scanning | ||
| Illumination | Color :0.5 Lux@F1.2 | Color :0.2 Lux@F1.2 | |
| B/W: 0.05 Lux @ F1.2 | B/W: 0.02 Lux @ F1.2 | ||
| Lens | 3.6mm megapixel lens | ||
| Day and night switch | IR-CUT dual optical filters auto switch in day and night | ||
| Electronic shutter | 1/25s~1/10000s; automatic | ||
| White balance | Auto / manual | ||
| DNR | DNR | ||
| SNR | ≥50dB(AGC OFF) | ||
| Privacy masking | Support | ||
| IR source | 8 infrared lights + 8 white lights | ||
| Night vision distance | 20-30 meters | ||
| Standard compression | Image compression | H.265, H.264 | |
| Video bit rate | 32 Kbps -- 6144 bps; | ||
| Audio compression | G.726/G.711 | ||
| Image | Main stream | 5MP (2560 x 1920) | 2MP (1920x1080) |
| Sub stream | 800x448 | ||
| Frame rate | 1-25fps (50HZ) | 1-25fps (50HZ) | |
| Image adjustment | Can adjust Saturation, brightness, contrast, sharpness | ||
| Image mirroring | Horizontal mirroring, vertical mirroring | ||
| Scene | Auto, indoor, outdoor | ||
| Digital enlarge | Can achieve through NVR, P2P HD monitoring management software | ||
| Function | Storage | Support TF card storage (max 128GB) | |
| Horizontal rotation | 350 degree rotation | ||
| Vertical rotation | 90 degree rotation | ||
| WDR | Support | ||
| Motion | Support | ||
| FTP | Support | ||
| Alarm | APP alarm warning ,Send images to email or FTP server | APP alarm warning | |
| Protocol | ONVIF 2.4 | ||
| Network protocol | TCP/IP、UDP/IP、HTTP、ICMP、TELNET … … | ||
| Audio | Microphone / speaker | ||
| WIFI | Support WIFI function | ||
| Mobile App | Support IPhone,Android | ||
| Interface | Interface | 1pc RJ45 10M / 100M Adaptive Ethernet port | |
| Basic parameter | Power input | DC 12V±10% | |
| Network interface | 10M/100M adaptive Ethernet port | ||
| Work environment | -20℃ ~ 60℃, humidity is less than 80% (no condensation) | ||
| Waterproof | IP66 | ||
| Size | 136mm×152mm×88mm (included bracket) | ||
