Product Description

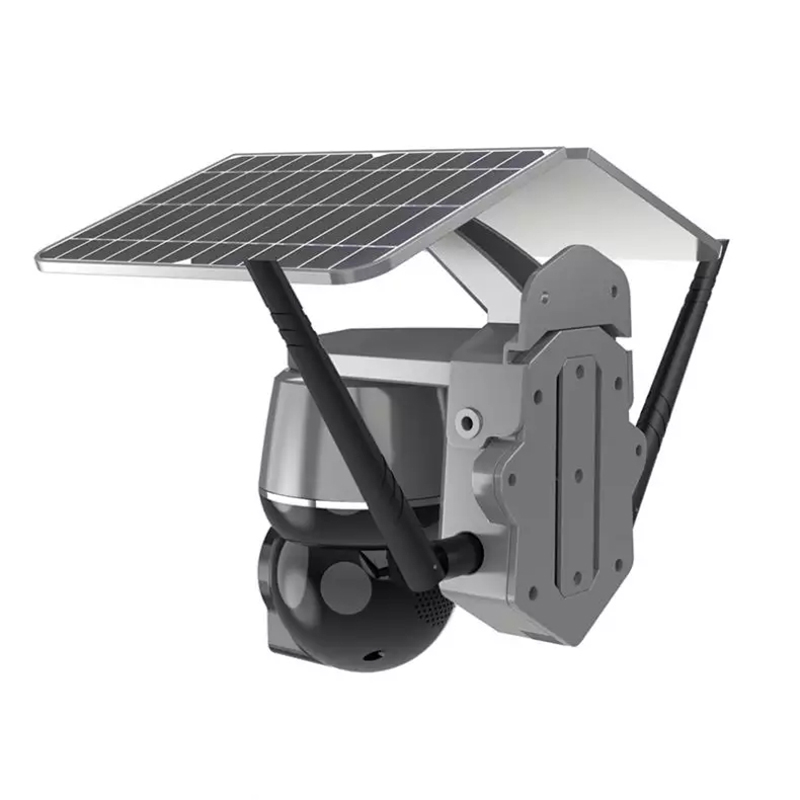

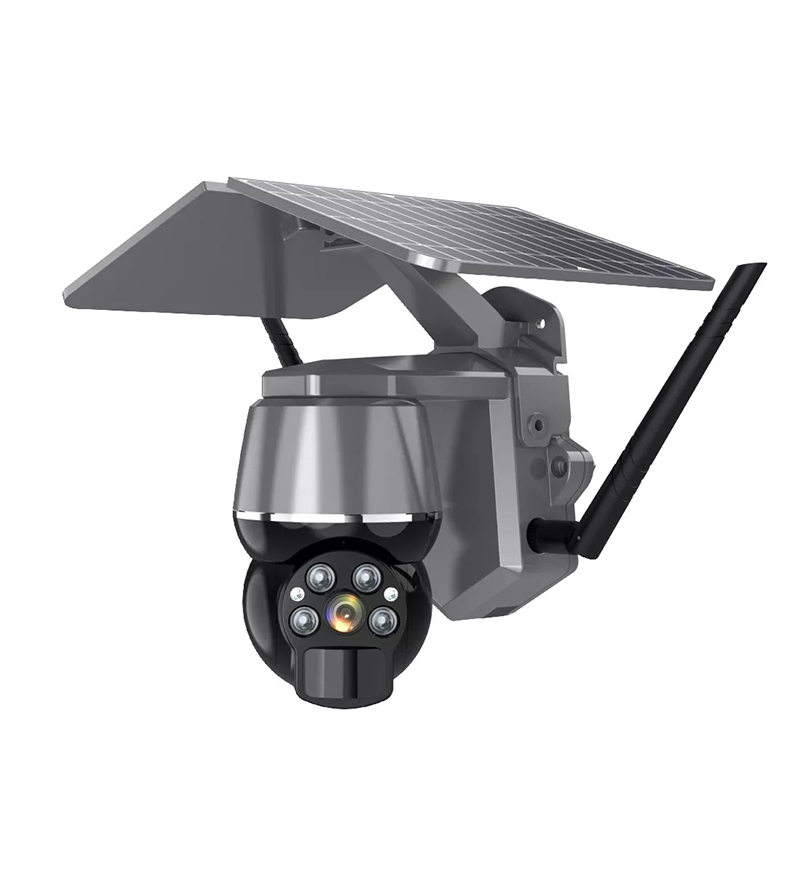

4G Solar PTZ Camera
▪ Built-in 4G SIM Card Slot

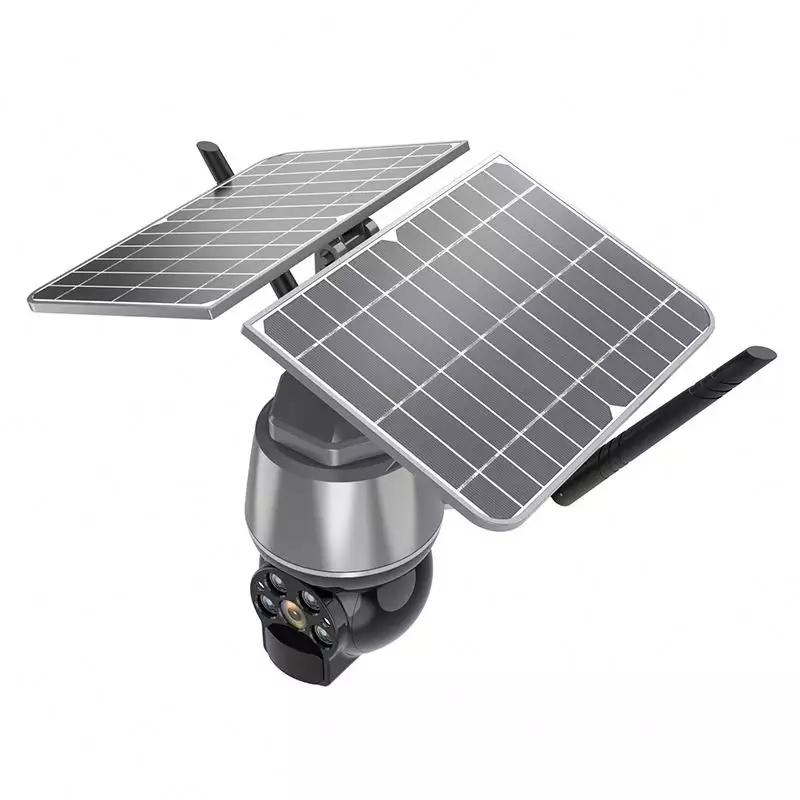

▪ 2pcs Solar Panel
▪ 9600mah Rechargeable Battery
▪ 2MP HD Quality
▪ Night Vision: 8-10 Meters
▪ PIR Motion Detection
▪ Two-way Audio
▪ Smart App: Ubox
| Model No: | WIP-C200V | ||
| APP | Ubox | ||
| Video | Master sensor | 1080P | lngenic T31ZL+2063 |
| 1440P | lngenic T31ZX+4653 | ||
| Resolution | Main stream: 1920x1080@15fps, Sub stream: 640x360@15fps | ||
| Format | Compression format: H.265 | ||
| Video file format: MP4 | |||
| Lens | 4mm F2.0 lens, Low lux., wide view angle: 120 degrees. 4X digital zoom | ||
| Night vision | 4pcs array LEDs, night vision distance 30m. Full-colorful day/night | ||
| Audio | Compression | G.726/AAC. Audio code rate: 8Kbps, 16bit | |

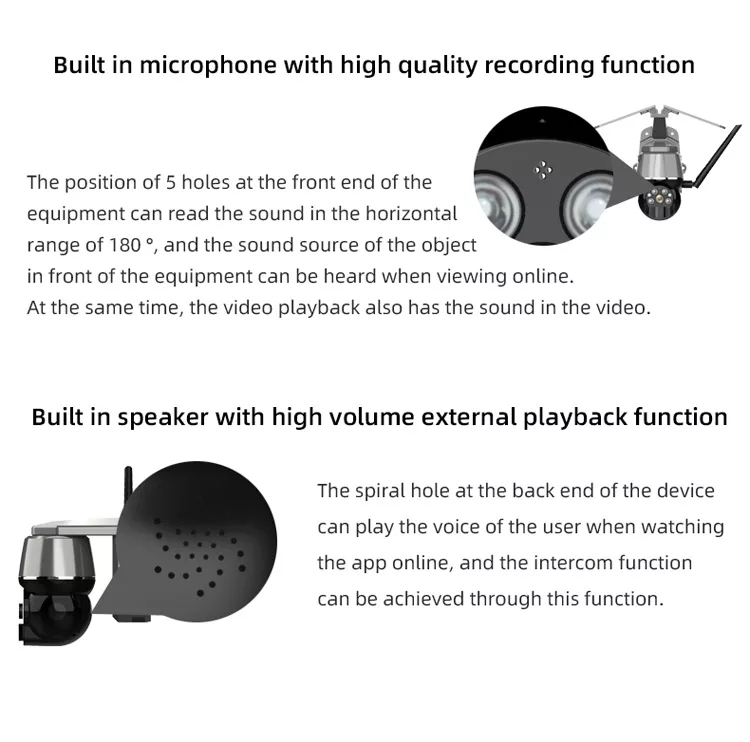

| Input/Output | Built-in MIC and Speakers, support two way audio | ||
| Alarm | PIR motion detection | Support max 12 meters PIR detection range. | |
| Alarm linkage | Alarm record videos to Micro SD card;Alarm mobile phone message push | ||
| Network | 4G SIM card | Southeast Asia | B1/B3/B5/B8/B34/B38/B39/B40/B41 |
| Australia | B1/B2/B3/B4/B5/B7/B8/B28/B40/B66 | ||
| Japan | B1/B3/B8/B18/B19/B26 | ||
| America | B2/B4/B5/B12/B13/B14/B25/B26/B41/B66/B71 | ||
| Europe | B1/B3/B5/B7/B8/B20/B38/B40/B41 | ||
| Video storage | Memory card | Support up to 128G micro SD card. Support cloud storage | |
| Record | PIR alarm recording. | ||
| Replay | Support App remote play and download the video | ||

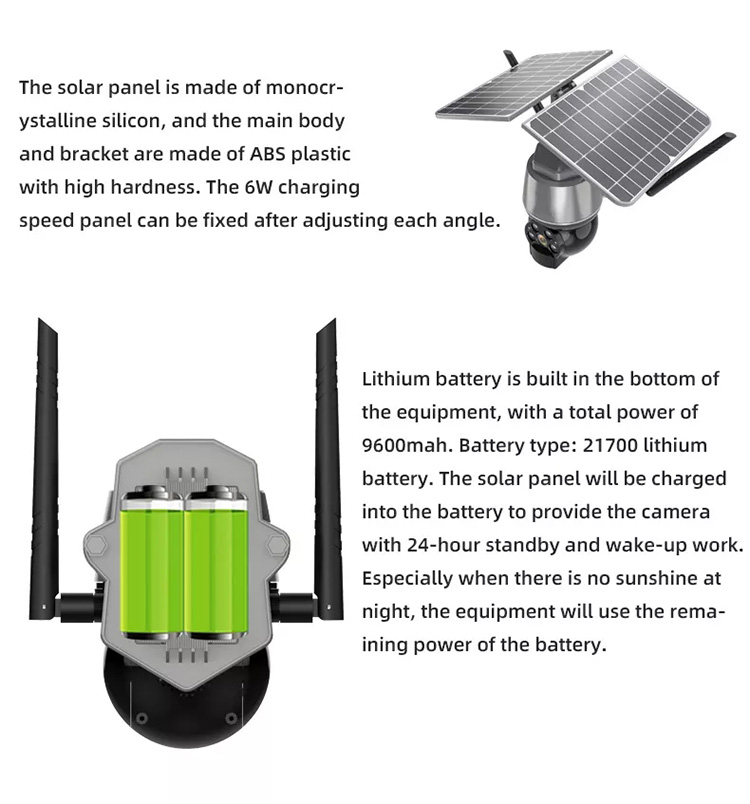

| Power supply | Solar panels | 3+3W monocrystalline silicon solar panel | |
| Battery | Built-in 2 pcs 21700 battery, total volume max 9600mAh | ||
| Operating mode | Low power working mode | ||
| Wake-up method | PIR alarm wake up, remote manual wake up | ||
| Hibernation | When alarm end or remote connection disconnected. | ||
| Power consumption | Sleeping stand-by power: 0.03W; Working: 1.3W@days/3W@night | ||

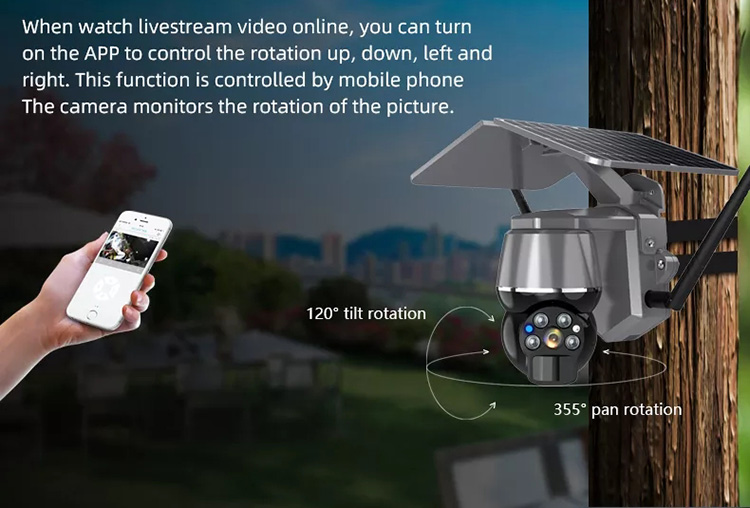

| PTZ | Rotation angle | Horizon Pan: 0°～355°, Vertical Tilt: 0°～120° | |
| Spinning speed | Horizontal speed: 10°～ 30°/S; Vertical speed: 8°～ 25°/S | ||
| Other | Power input | DC5V 2A | |
| Environment | Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%～80%, non-condensing | ||

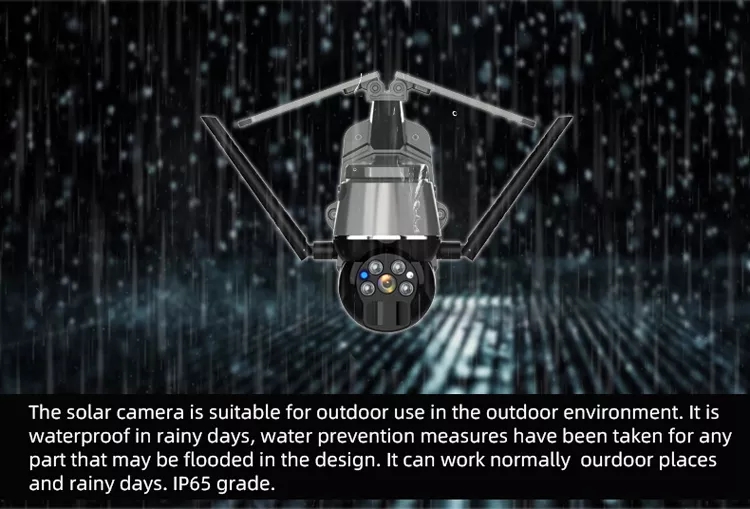

| Shell material | ABS fireproof plastic material, vandal-proof, waterproof level IP65 | ||
| Power cable | Type-c interface, extension cable 3 meters | ||

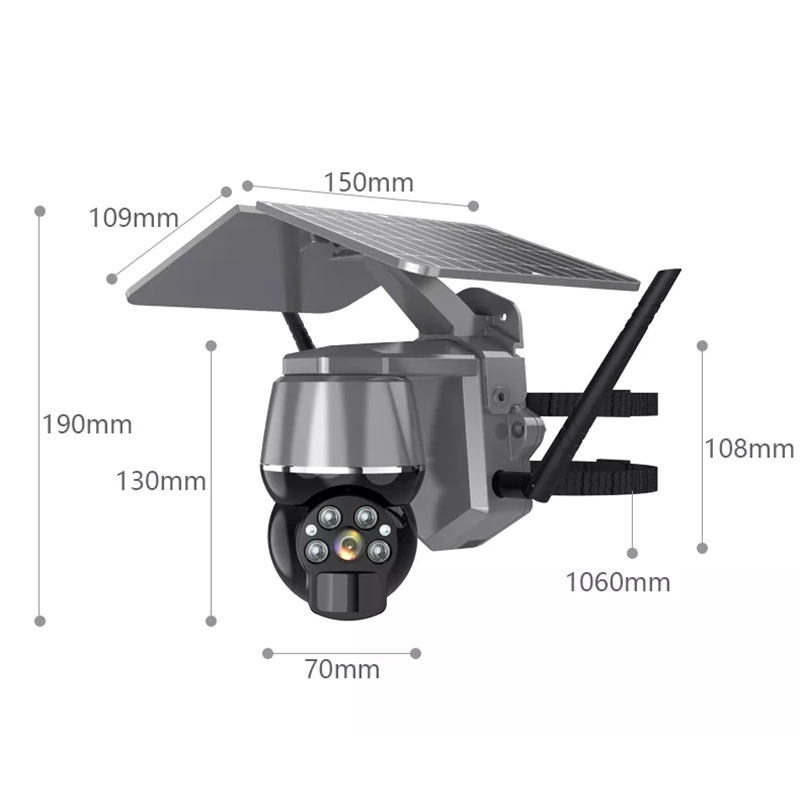

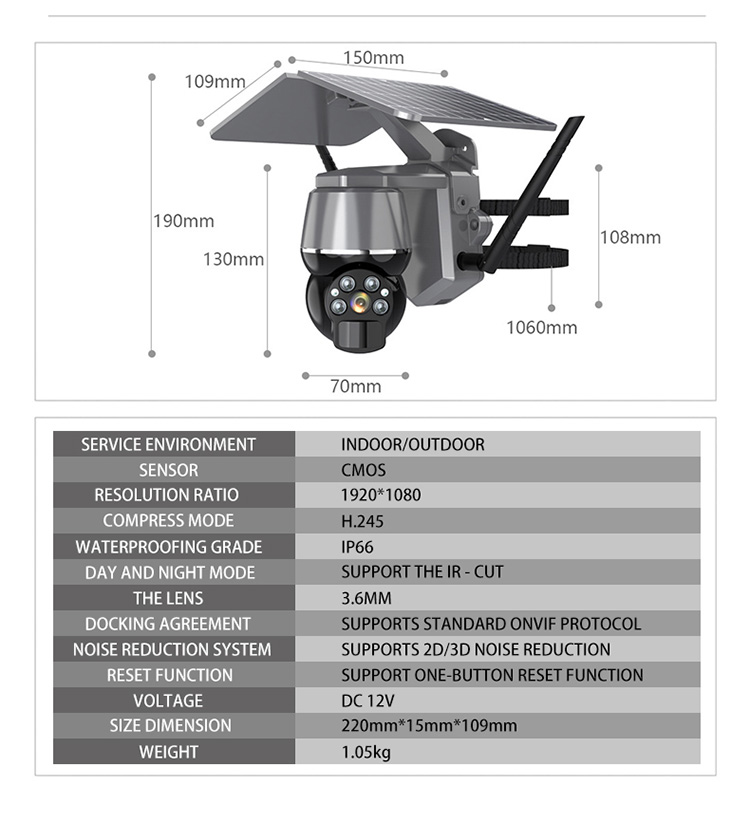

| Product Size | 220mm×150mm×109mm(L×W×H) | ||
| Package dimensions | 245x218x124mm(L×W×H); | ||
| Packing list | IP Camera, Antenna, Solar panel, Support, Mounting screws, Screwdriver, USB cable, Manual, Cable tie | ||
