WIP-AK013

WIP-AK013

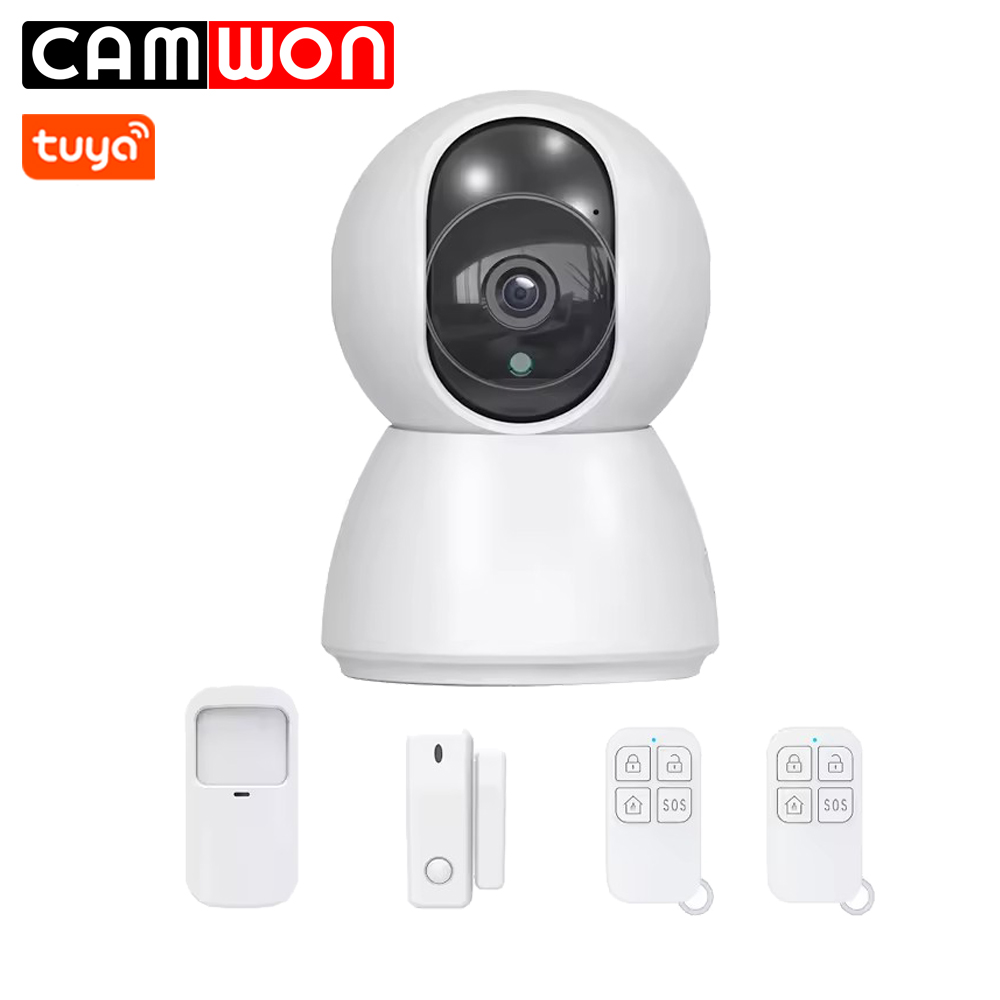

WiFi IOT Camera Alarm Kit


1* Camera(Smart Hub)

1* PIR sensor

1* Door sensor

2* Remote control

Accessory: sticker, user manual, power adaptor


￥ 0.00
0.00
Quantity：
Buy now
Add to cart

Product Description

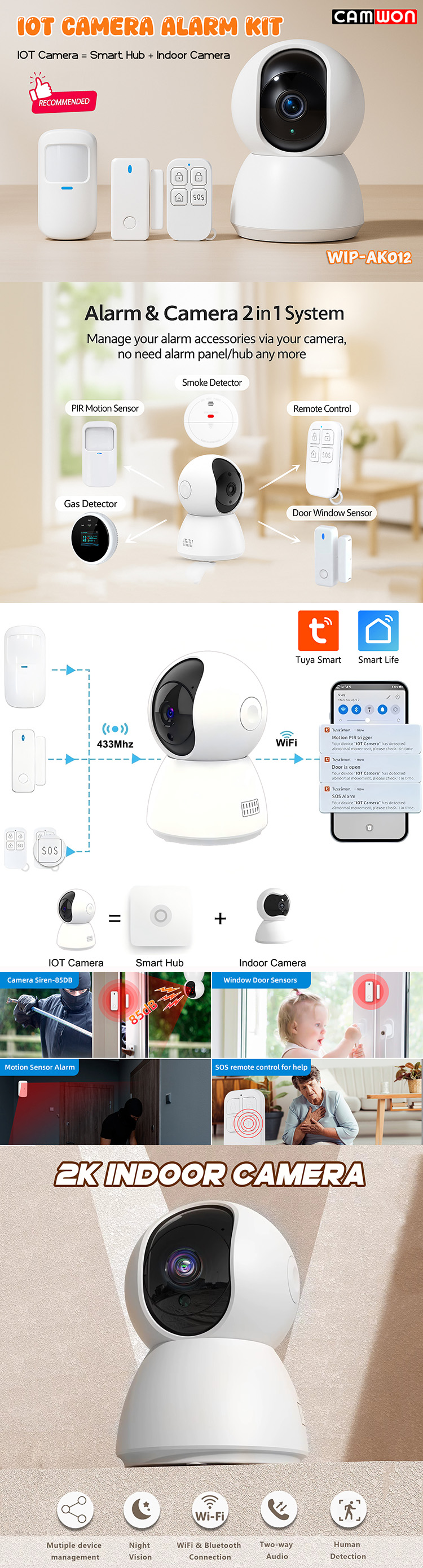

WiFi IOT Camera Alarm Kit


1* Camera(Smart Hub)

1* PIR sensor

1* Door sensor

2* Remote control

Accessory: sticker, user manual, power adaptor


Model No.WIP-AK012WIPAK013
APPTuya
Image Sensor1/4.5" 2MP CMOS1/2.8" 4MP CMOS
Effective Pixels1920(H) x 1080(V)2560(H) x 1440(V)
Video Pixels1080p1440p
Shutter Speed1/15~1/10,000s
Minimum IlluminationColor 1Lux@F2.0, Monochrome 0.01Lux@F2.0
Day/Night ModeAuto-switching between color and monochrome
Wide Dynamic RangeDigital wide dynamic range
Lens Specifications3.6mm@F2.0, 87°/ 43°/104°
Light Board6 infrared LEDs
Gimbal AngleHorizontal: 0° to 355°, Vertical: 0° to 90°
Main Control UnitFH8626V200
Bluetooth ModuleBL-M6355CU1/AIC8800D40L
WiFi ChipSV6355/AIC8800D40L
Physical Privacy MaskingOptional support
Firmware VersionV1.0.0
Audio/Video

Compression FormatH.264
Bitrate32Kbps~2Mbps
Frame Rate15fps
Dual StreamSupported
Audio Input/OutputBuilt-in speaker and microphone
AudioTwo-way intercom
Video recording

StorageTF card (maximum 256GB), cloud storage
Playback speedX1
Rewind speedX1
Video formatH264 encryption
Offline recordingSupported
Network

Wireless SecuritySupports WEP, WPA, and WPA2 encryption methods.
Communication ProtocolHTTP, DHCP, DNS, TCP/IP.
Network StandardLTE-TDD B34/B38/B39/B40/B41, LTE-FDD B1/B3/B8, LTE-FDD B5/B3.
Alarm TriggerMotion detection, human detection, and sound detection.
Mobile Phone SystemiOS 9 and above, Android 5 and above.
Security EncryptionAES128.
Maximum Number of Connections5 or more.
AntennaOne built-in antenna.
Bluetooth Network PairingYes (Bluetooth pairing function is supported when WiFi is available)
Standard

Operating temperature-10 °C to 55 °C
Waterproof ratingNA
Shock resistance ratingIK08
Power supply methodDC 5V/1A
Power consumptionMax 5W
Power interfaceType C, 5V
FunctionsCorrelated color temperature, human detection, sound detection, effective area setting, number of 1 pc effective areas, rectangle effective area, motion tracking, 6pcs PTZ favorite points, alarm sound on/off, alarm sound type setting, alarm sound volume adjustment, Amazon Alexa(Optional), Google Home(Optional), Web RTC, ONVIF, preset point linkage.
IoT

Sub-device Quantity 32
History Sub-deviceSupports a total of 30 days, with 16 messages per day in a loop.
Sub-device typeCovers infrared, door sensor, remote control, smoke detector, water immersion detector, CO detector, gas detector, etc.
Type Arming/Disarming Remote control supported, APP supported.
Sub-device Management APP supported.
IoT Parameter SettingsAPP supported.
