WIP-TB500SE

WIP-TB500SE

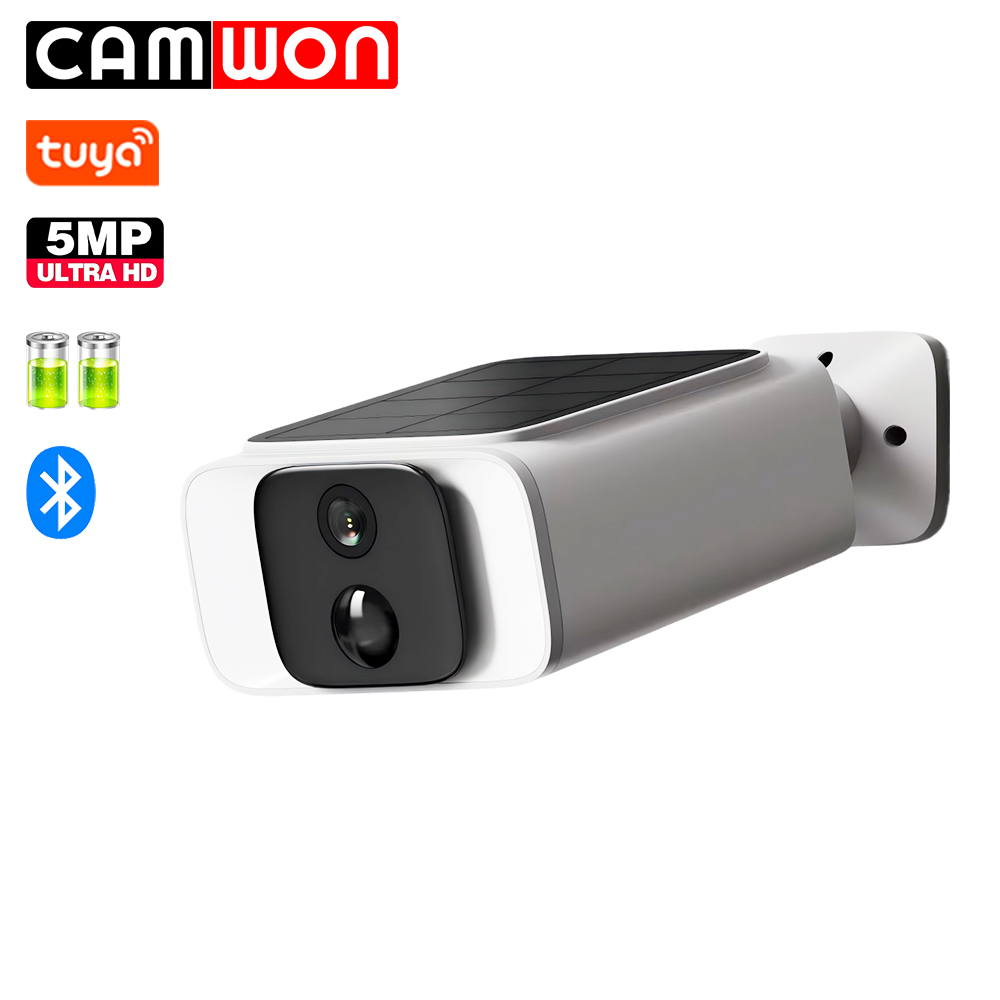

5MP 2 In 1 Solar Camera

▪ 5MP

▪ 1.4W Solar panel & 6000mAh Battery

▪ 6X Digital zoom

▪ Human Detection

▪ Built-in Siren

▪ Infrared & Color Night Vision

List price：￥ 0.00

Price：￥ 0.00

Quantity：

Buy now

Add to cart

Product Description

5MP 2 In 1 Solar Camera

▪ 5MP

▪ 1.4W Solar panel & 6000mAh Battery

▪ 6X Digital zoom

▪ Human Detection

▪ Built-in Siren

▪ Infrared & Color Night Vision

Hardware	Image Sensor	1/3.06" 5Megapixel progressive CMOS
	Sensor	SC4336
	Main Chipset	AK3918AV100N
	Wi-Fi	AIC8800M40B
	Lens Focal Length	2.8MM
	Aperture	F2.0
	Antenna Gain (dBi)	3DB
Leds	IR CUT	Support
	IR Distance	10m
	Number of Infrared Lamp Beads	4pcs
	Number of White Light	18pcs
	Night Vision Mode	Full color and Black&white mode
Function	Pairing Method	2.4G&5G
	Two-way Talk	Support
	Sound Detection	N/A
	Motion Detection	Support
	Surveillance Area Setting	Support
	Humanoid Filtering	Support
	Privacy Mode	N/A
	Privacy Zones	N/A
	Anti Dismantling Alarm	N/A
	Cloud Storage	Support
	Web RTC	Support
	Siren Alarm	Support
	Condition to trigger local storage	Motion detection & Preview
	Condition to trigger cloud storage	Motion detection
	PIR Set	Support
	WDR	N/A
	Anti Flicker	N/A
	Hot Swappable SD Card	Support
	Local Storage SD Slot	up to 128GB
	Voice Solution Configuration	Amazon Alexa, Google Assistant(Optional)
Network	Wireless Standard	Wi-Fi IEEE 802.11 b/g/n
	Wireless Frequency	2412 MHz ~ 2472 MHz 5.15~5.835GHz
	Wireless Encryption Protocol	WPA-PSK/WPA2-PSK, WPA/WPA2, WEP
	Working Temperature	-10℃~50℃
	Working Humidity	20~85%RH (no condensation)
Solar Panel	Dimension	74*90
	Solar Panel Power	1.4W
	Solar Panel Output Power	Max1W
	Does Solar Panel Include Battery	N/A
	Energy Conversion Rate	21%
	Working Temperature	Minus 15 to 20 degrees Celsius
	Working Humidity	≤60%
Battery	Battery Type	2 * 18650 Rechargeable Lithium Battery
	Battery Capacity	6000mAh 3.7V
	Battery Charging Time (Input DC 5V1A)	4hours
	Battery Life	Triggering 10 times a day supports for 3.5 months.
Other	Power Supply	DC 5V1.5A
	Working Power Consumption	Max 240mA
	Standby Power Consumption	150uA
	Live Stream Video Resolution	HD(28801616)/ SD(640360) @15fps
	Notification Image Resolution	SD(640*360)
	Live Stream Effective Pixels	5MP
	Optical pixel or lmage interpolation	Optical pixel
	Angle of View (H/V/D)	92°(Horizontal) * 66°(Vertical) * 128°(Diagonal)
	Microphone Sensitive	-38dB
	Noise Reduction	3D NR
	Audio Input	Built-in 38db Mic
	Audio Output	Built-in 8ohms Speaker
	Audio Compression	G711U
	Video Compression	H.265 / H.264
	Frame Rate	Main Stream (HD) : 1Mbps; Substream (SD) : 384Kbps
