| Model No. | WIP-TB400SC |
| APP | Tuya |
| System | Image Sensor | 1/2.8" 2Megapixel progressive CMOS |
| Sensor Brand And Model | SMARTSENS, SSC333E |
| Main Chipset Brand And Model | AK3918AV100N |
| Wi-Fi Chipset Brand And Model | AIC8800MC |
| Lens Brand And Model | CH2820D |
| Lens Length | 2.8mm |
| Aperture | F2.0 |
| Speaker | 1W 8Ω |
| Noise Reduction | 3D NR |
| Antenna Gain (dBi) | 1.5dB |
| Network and condition | Wireless Standard | IEEE 802.11 b/g/n |
| Wireless Frequency | 2.412 GHz ~ 2.474 GHz |
| WiFi Encryption Protocol | WPA-PSK/WPA2-PSK, WPA/WPA2, WEP |
| Working Temperature | -10℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Working Humidity | 20%-85%RH |
| Basic specifications and parameters | Pairing Method | Scan code mode/ Bluetooth Connection mode |
| Two-way Talk | Support |
| Motion Detection | Support |
| WebRTC | Support |
| Area Monitoring Detection | Support |
| Privacy area | No |
| Humanoid Filtering | Support |
| WDR | Automatic wide dynamic range |
| Anti Flicker | Support |
| IR CUT | Support |
| Automatic switching | Support |
| Tamper alarm | No |
| Sound Alarm | Support |
| Sound Detection | No |
| Reset button | Reset button (hold andp ress 10 seconds) |
| PIR Detection Angle | 120° （MAX） |
| PIR Detection Distance | 8 meters |
| Minium PIR Report Time Gap | 4.5s |
| Local Storage SD Slot | Micro SD Slot (up to 128GB) |
| Hot Swappable SD Card | Support |
| Condition to trigger local storage | Motion detection |
| Local video recording duration | 15s |
| 8G SD Card recording duration | 14 Hours |
| Condition to trigger cloud storage | Motion detection |
| Tuya Cloud Storage | Support |
| Privacy Mode | Support |
| Power LED Color | Red Green |
| Power LED On/Off Control | No |
| Status Indicator LED Color | Red，green，blue |
| Indicator Color | Charging red, network red and blue light flashing, fully charged green, working blue |
| Alexa and Google Assistant | Support |
| Electrical Specification | Power Supply | Battery and Type-C |
| Power Supply by USB without Battery | Not Support |
| Working Power Consumption | 180mAh |
| Standby Power Consumption | 150uA |
| Motion detection Image Resolution | HD(640*360) |
| Live Stream Video Resolution | HD(2560*1440） / SD(640*360) @15fps |
| Live Stream Effective Pixels | 4MP |
| Live Stream Effective Pixels by HW or SW | Real pixels（Hardware straight out） |
| Angle of View(H/v/D) | H108.4° V58.1° D128.5° |
| Angle of Pan and Tilt | N/A |
| Microphone Sensitive | -38dB |
| Audio Input | Built in Mic |
| Audio Output | Built in Speaker |
| Video Compression | H.264 / H.265 |
| Audio Compression | G.711 |
| Frame Rate | Main stream：1024Kbps Sub-stream：256Kbps |
| Lighting specifications | Night Vision Mode | Full color and Black&white mode |
| Number of infrared light | 4 pcs |
| IR Distance | 10m |
| Manual switch infrared night vision function | Not Support |
| Number of white light | 3 pcs |
| White Light Color Temperature | 6500K |
| White Light Color Rendering index | 1900/3/10 |
| White Light Luminous Flux | 45lm |
| White Light Lighting Angle | 120° |
| White Lighting Distance | Distance 10 meters |
| Battery | Battery Type | 1951/1/22 |
| Battery Capacity | 5200mAh |
| Battery Accuracy | 1900/1/0 |
| How many times of triggers per day | 10 times, 2 months |
| Abnormal Battery Voltage Level and the percentage | Below 3.4V ,less than 5% |
| Battery charging time (Input DC 5V1A) | 4 hours |
| Battery protection | Built-in li battery |

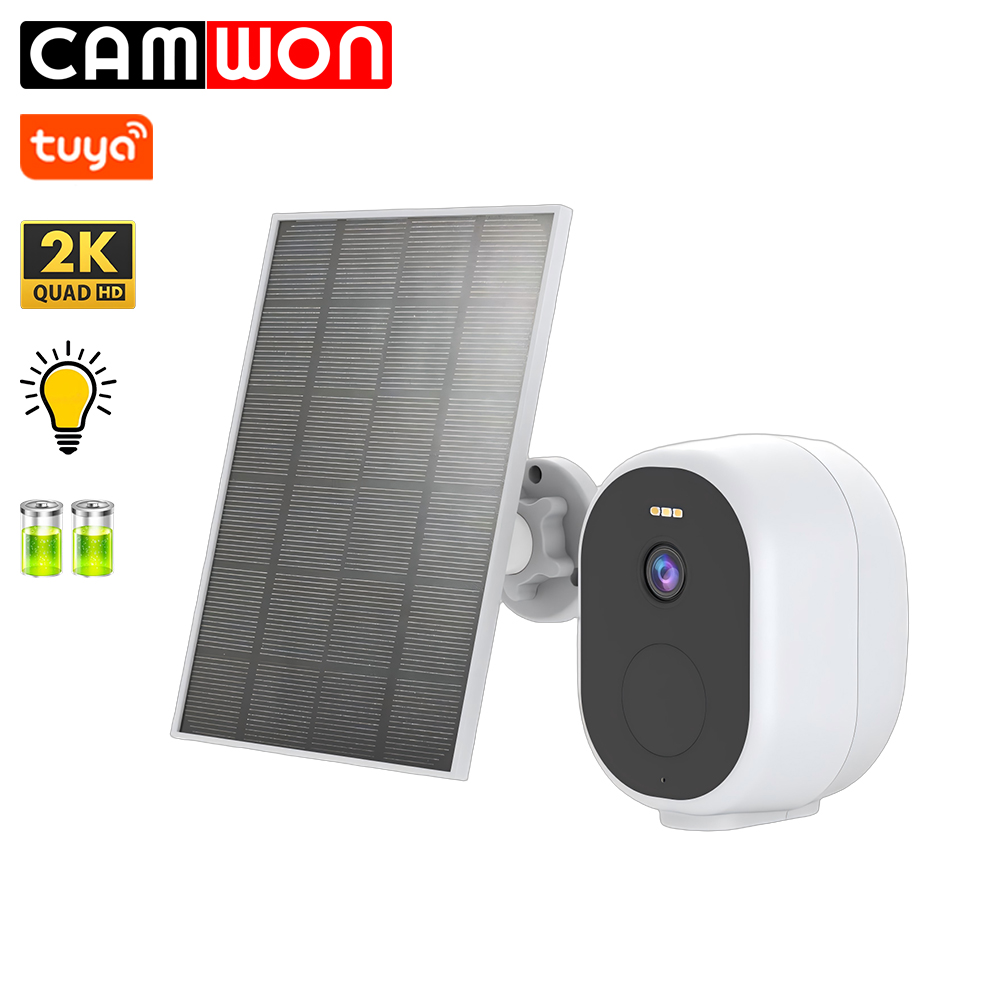

| Solar Panel | Solar Panel | Support |
| Does Solar Panel Include Battery | No |
| Solar Panel Output Power | 3W |
| The Length of Cable of Solar Panel | 1.9M-2M |
| Working Temperature | －20℃~60℃ |
| Storage Temperature | －20℃~60℃ |
| Working Humidity | ≤60% |
| Charging time for the camera | According to the weather and light conditions |
| Ingress Protection(IP) | IP65 |
| Solar Panel Net Weight | 0.296kg |
| Mechanical Specification | Housing Material | PC + ABS+IRON |
| Housing | White |
| Hosing Flame Retardance | V-0 |
| Ingress Protection(IP) | IP65 |
| Product size | Product Dimension | 64x62x90mm (camera), 47.8x47.8x77mm (bracket) |
| Net Weight | 245g |
| Power Cable Length | 1.5m |
