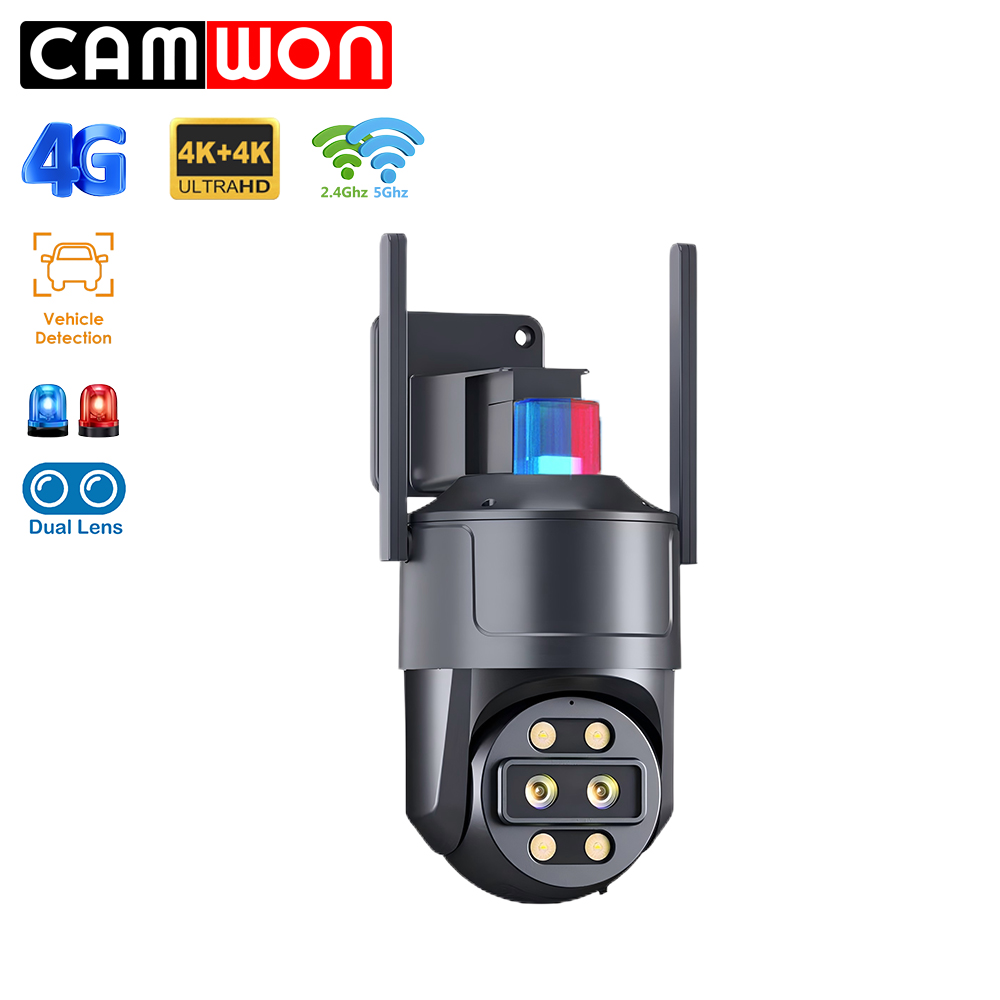

WIP-P800Z

WIP-P800Z

4G 4K+4K Dual Lens Camera


▪ True 4K+4K Resolution

▪ Support Human & Vehicle Detection

▪ Auto Zoom Human Tracking

▪ Red & Blue Alarm Light

▪ Sound Alarm

￥ 0.00
0.00
Quantity：
Buy now
Add to cart

Product Description

4G 4K+4K Dual Lens Camera


▪ True 4K+4K Resolution

▪ Support Human & Vehicle Detection

▪ Auto Zoom Human Tracking

▪ Red & Blue Alarm Light

▪ Sound Alarm

Model NO. WIP-P800Z
APPCamhi Pro
Prodcut feature• High sensitivity, high signal-to-noise CMOS image sensor
• Dual sensors, which can switch between two sensors on the APP
• After the human tracking function is turned on, it automatically switches between the two sensors according to the different distances between the person and the camera.
• H.265 compression algorithm, effectively reduces network bandwidth, supports dual streams, supports mobile phone monitoring
• Support manufacturer dynamic domain name and third-party dynamic domain name resolution
• Supports sending alarm pictures via E-mail, uploading alarm pictures and alarm videos to FTP server, and timing snapshot pictures to FTP server
• Supports static IP and dynamic IP (DHCP)
• Support IE, Google, Firefox browsers
• Supports up to 6 users browsing at the same time (each stream supports 3 users)
• Provide motion detection (area and sensitivity can be set) alarm function
• Maximum support 128G Micro SD card
• Support PC client download SD card video and mobile phone download and playback SD card video
ChipsetT41NQ+OV08C10,1/2.8''CMOS
Focal Length3.6MM+8MM
Resolution8MP+8MP (3200*2400)
IR RangeIR: Up to 40m, White Light: Up to 30m
WIFI version device parameters：
Compression standardVideo compression standardh.264/H.265
Video compression rate32Kpbs-8Mpbs
Audio and video compression algorithmG.711A
FeaturesAudio input and outputBuilt-in pickup and speaker
Memory cardSupport 8G-128G TF card
Supporting agreementSupport TCP/IP，HTTP，TCP，ICMP，UDP，ARP， IGMP，SMTP，FTP，DHCP，DNS，DDNS，NTP，UPNP，RTSP and other protocols
ONVIFSupport
Subtitle overlaySupport channel name, date and time, superimposed subtitles can be customized by users
Motion Detection4 independent areas can be set
Communication Interface1 RJ45 10M/100M Ethernet port
WIFI performance indexWireless standardIEEE802.11b/g/n
Frequency Range2.4 GHz - 2.4835 GHz-5GGHz
Channel bandwidthSupport 20/40MHZ
SafetyWPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission distance20 meters (without obstacles)
AP（ hot port）The camera is not connected to the network cable or is in hotspot mode before configuring the wireless function
General specificationStand-by power consumptionLess than 8W
Working temperature-10℃-55℃
4G version
Network TypeFDD-LTE, TDD-LTE, WCDMA/HSPA+, TD-SCDMA, GSM/GPRS/EDGE
RateLTE FDD/TDD (Cat. 4) 150 Mbps downlink, 50 Mbps uplink
USIM/SIMNANO SIM card
PTZ Parameters
Control speedHorizontal speed 0.01°～15°/S, vertical speed 0.01°～10°/S
Rotation range300° horizontal rotation, vertical 0°～90° automatic flip
Tracking functionHumanoid tracking
Installation methodCeiling mounting and wall mounting
power supplyDC12V 1A
Size and Weight
Box Size145*155*278mm
Quantity for per caron12pcs/carton
Weight1kg/pc(Including power adapter)
Weight for per carton15KG
Carton size570*452*330mm
