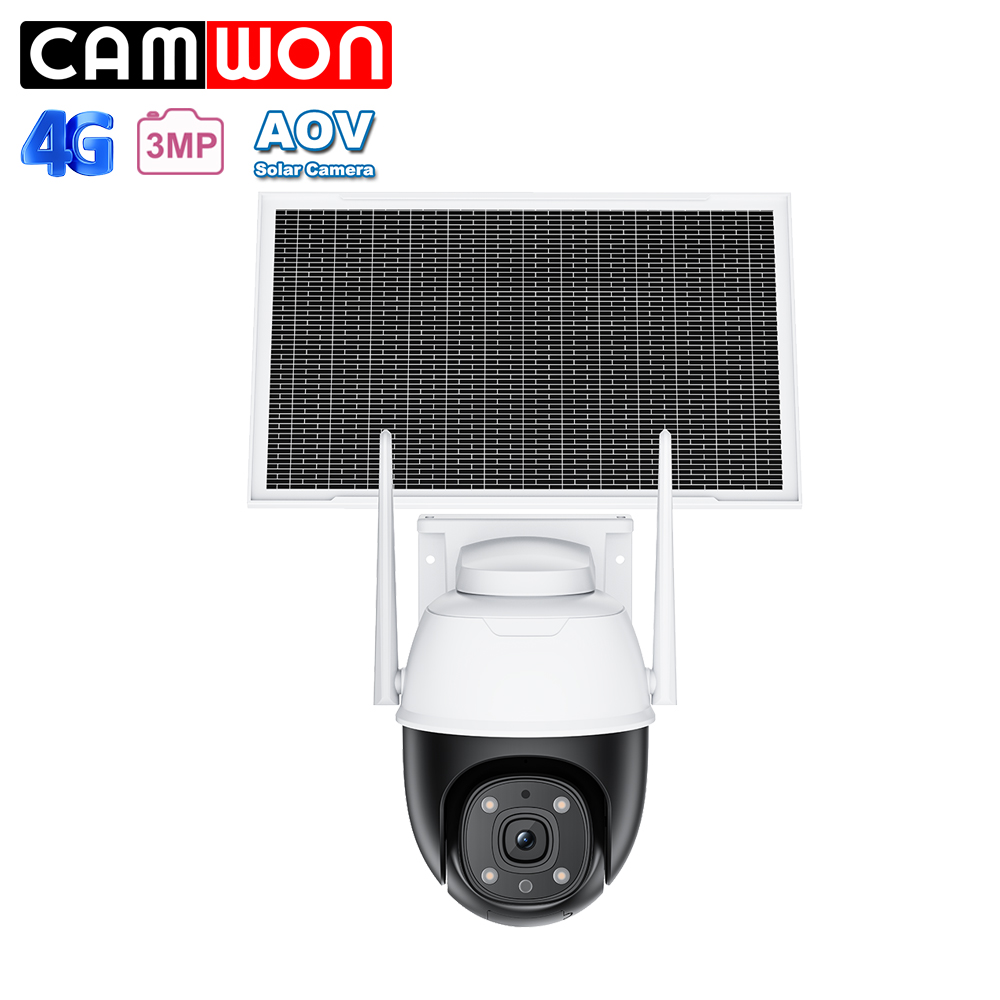

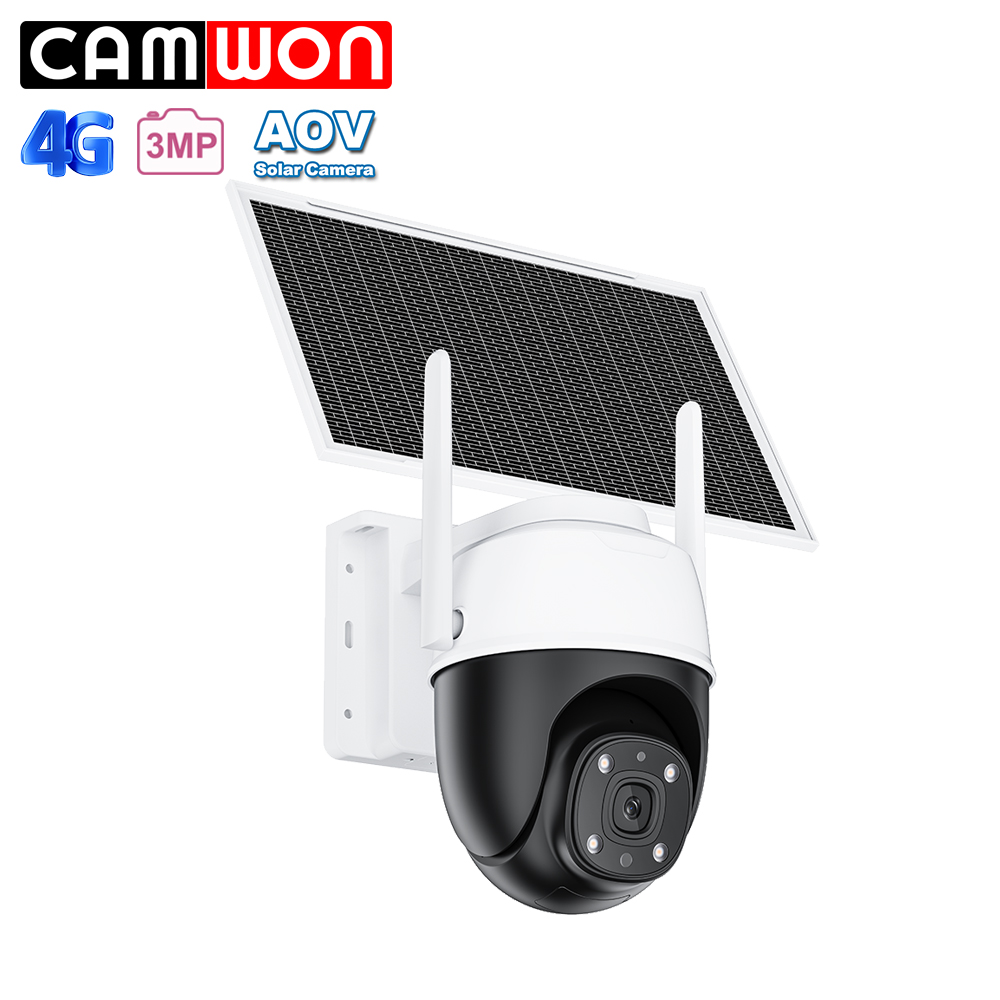

| Model No.: | WIP-G300F |
| APP | Camhi pro |
| Video stream | No sub-stream, one main stream, 3MP, 2340×1296
50/60HZ can be set, frame rate, bit rate, main frame interval, image quality can be set. |
|
| Frame rate | 15 frames, 1 frame per second under AOV |
| Video encoding format | H265，H264 |
| Audio | Monitor, Intercom, G711
Audio on, off
Audio mode, Line and Mic
Input volume, output volume |
|
|
| SD card recording | Scheduled recording is 10 minutes, alarm recording is 15 seconds, AOV recording does not record audio.
Scheduled recording time period, alarm recording time period. |
|
| Alarm | Only AI alarm (people and vehicles), no motion detection
No frame at the front end of AI, frame at the back end
Set AI alarm sensitivity |
|
|
| AOV | Wake up once per second, detect AI, one frame per second. |
| Alarm linkage | Alarm recording, alarm siren, alarm light, alarm message push, AI tracking. |
| PTZ control | Four-way control, self-check, AI tracking. |
| SD card playback | SD video remote playback, SD card formatting |
| OSD | Video overlay OSD name and time
OSD name can be modified |
|
| White fill light | The light is not on during the day, and the light status is determined by the settings at night.
The light has 3 modes: automatic, custom, and off.
Automatic: Automatically adjust the brightness of the light according to the ambient illumination.
Custom: Specify the brightness of the light 1-100.
Off: Do not turn on the light. |
|
|
|
| Image | Brightness, saturation, contrast, up and down, left and right flip |
| Device information | Name, type, network, number of connections, IP, gateway DNS, MCU version, software version, check for updates (Internet upgrade) |
| Initialization settings | Restart and restore factory settings |
| Device time | Synchronize time, NTP, set time zone |
| Indicator light | Red light: working indicator, IPC works normally
Blue light: 4G network is normal
Red and blue lights flash alternately, QR code configures APN status |
|
|
| Reset button | Press for more than 5 seconds to reset IPC
If 4G cannot access the Internet, it will automatically enter the QR code to configure APN status, which lasts for 5 minutes. |
|
| Permissions | Change admin's password |
| Battery | 30% turns off 4G (stops P2P and alarm push) and motor, and restores at 50%
20% stops planned recording, only keeps alarm recording and white light
10% automatically shuts down |
|
|
| 4G information | MCC, MNC, ICCID, IMEI, operator name, 4G signal, 4G module version, currently used APN. |
| Packaging size | 290x172x212mm 8 units per box, outer box size |
| Weight | 2kg |
