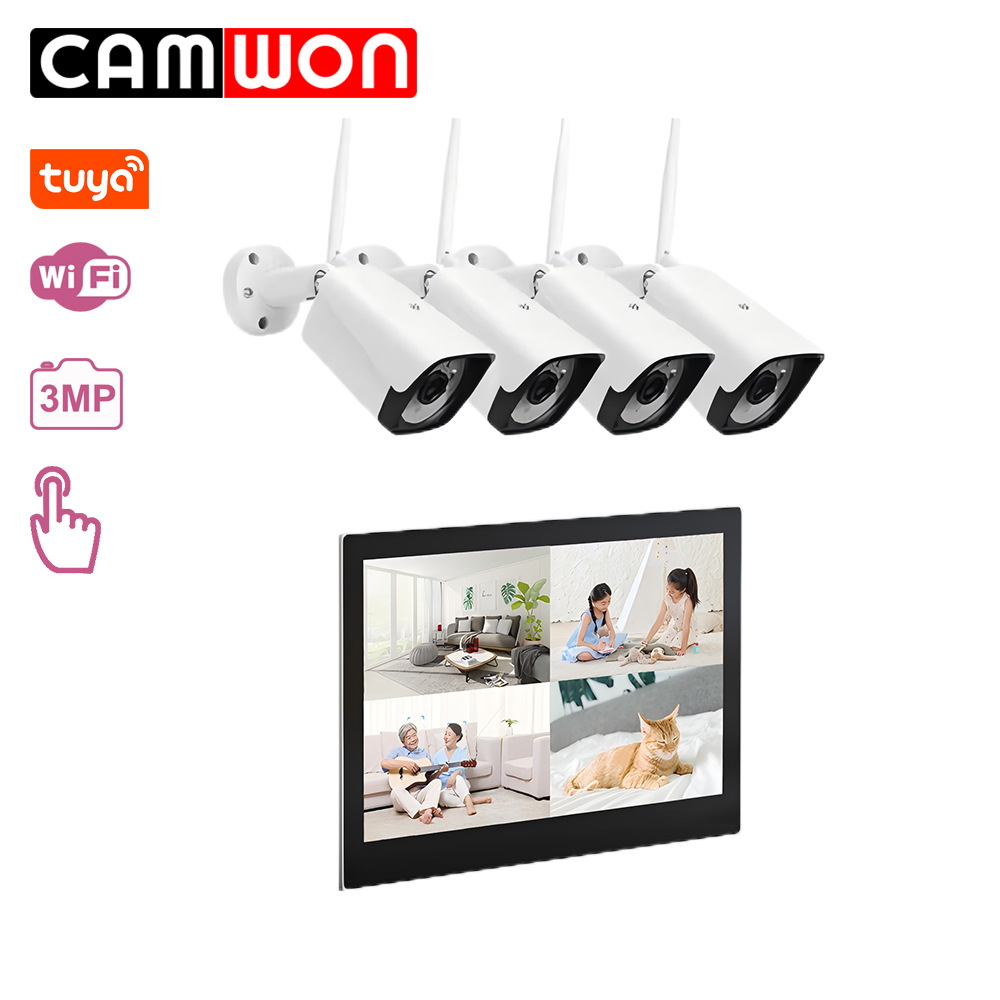

| Model No.: | WIP-TY204G |
| APP: | Tuya |
| Specification of Wireless IP Camera: |
| System structure | Embedded LINUX design, single-core 32-bit DSP (GK7201V200), pure hardware compression, watchdog, 8MB FLASH, 64MB, Built-in DDR; |
| Sensor | 3MP CMOS (lens optical size: 1/2.7”), color 1.0Lux@F1.2, black and white 0.1 Lux@F1.2; integrated IR-CUT driver, supports linkage control of Sensor+IR-CUT+soft photosensitivity+LED fill light, supports day and night conversion; |
| Video processing | H.265+/H.265/H.264 video encoding, supports dual streams, supports P and N systems |
| Frame rate | 3 million 15 frames, supports frame rate adaptation |
| Image output | Main stream: 2304×1296; Sub stream: 640×360 |
| Audio interface | 1 input, supports microphone or pickup input; 1 1-way output, built-in amplifier (recommended speaker 8Ω/2W); |
| Audio processing | G.711 codec standard, supports two-way voice intercom function, supports audio and video synchronization; 8khz sampling rate |
| Network interface | 1 RJ45 Ethernet interface, 10/100M adaptive, 8KV anti-static ability; |
| WiFi | 1 DC3.3V WiFi module, supports 2.4G frequency; |
| Signal interface | 1 IRCUT interface, supports IR-CUT and image linkage control; |
| Lightning protection | Power supply and network are fully lightning-proof, front-end power input is lightning-proof, anti-static, and anti-reverse connection |
| ONVIF protocol | Not Support |
| OTA | Support |
| Business function | Supports OSD, supports real-time video transmission, supports motion detection, supports human detection |
| Power supply | DC12V power input interface, 1.2W-3.3W power consumption; |
| Working environment | -20℃～+55℃ |

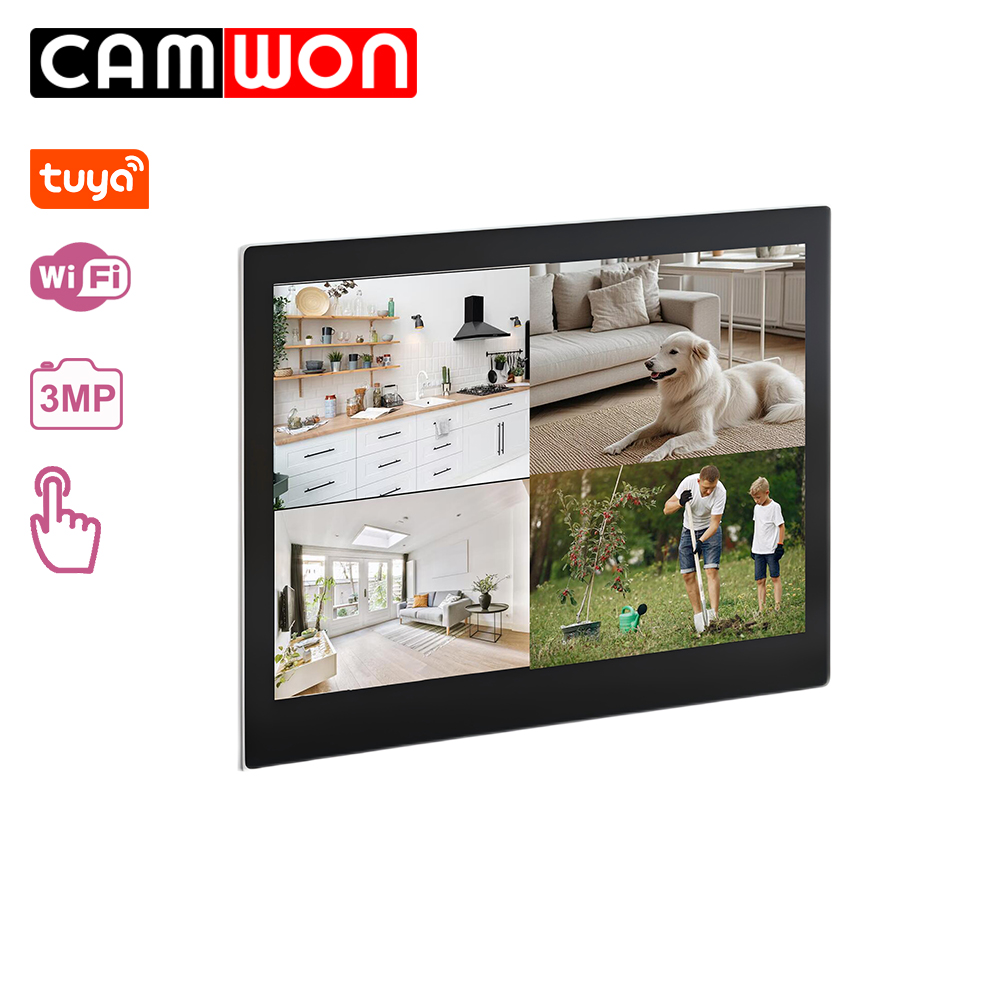

| Specification of NVR Monitor: |
| Model | Wireless Video Monitor |
| Image Signal Processor | SOC |
| Operating System | LINUX |
| LCD | 10.1-inch TFT LCD |
| Resolution | 1280*800 |
| Operation method | Capacitance touch screen |
| Operation interface | Flat style UI interface, easy to operate |
| Outdoor camera | Max support 8*Outdoor camera |
| Video Compression | H265/H264 |
| Record | Support scheduled recording and event recording |
| Storage | TF card and SSD |
| Hard Disk | 1 x SSD, Max 1TB |
| TF Card | 1 x TF Card , Max 256GB |
| USB Interface | 1 × USB 2.0 |
| Audio Input | Built-in microphone |
| Audio Output | Built-in speaker |
| Audio Compression Standard | G.711U |
| Audio Compression Rate | 64Kbps |
| Sound Quality | Supports noise suppression and echo cancellation |
| APP | Support tuya APP,Support remote intercom and unlock |
| Network Interface | 1 RJ-45 10/100M self-adaptive |
| Power Supply | DC12V |
| Power Consumption | ＜10W |
| Working Temperature | `-10℃ ～55℃ |
| Working Humidity | 10%～90% |
| Dimensions | 270mm*165mm*30mm |
