WIP-TY204E

WIP-TY204E

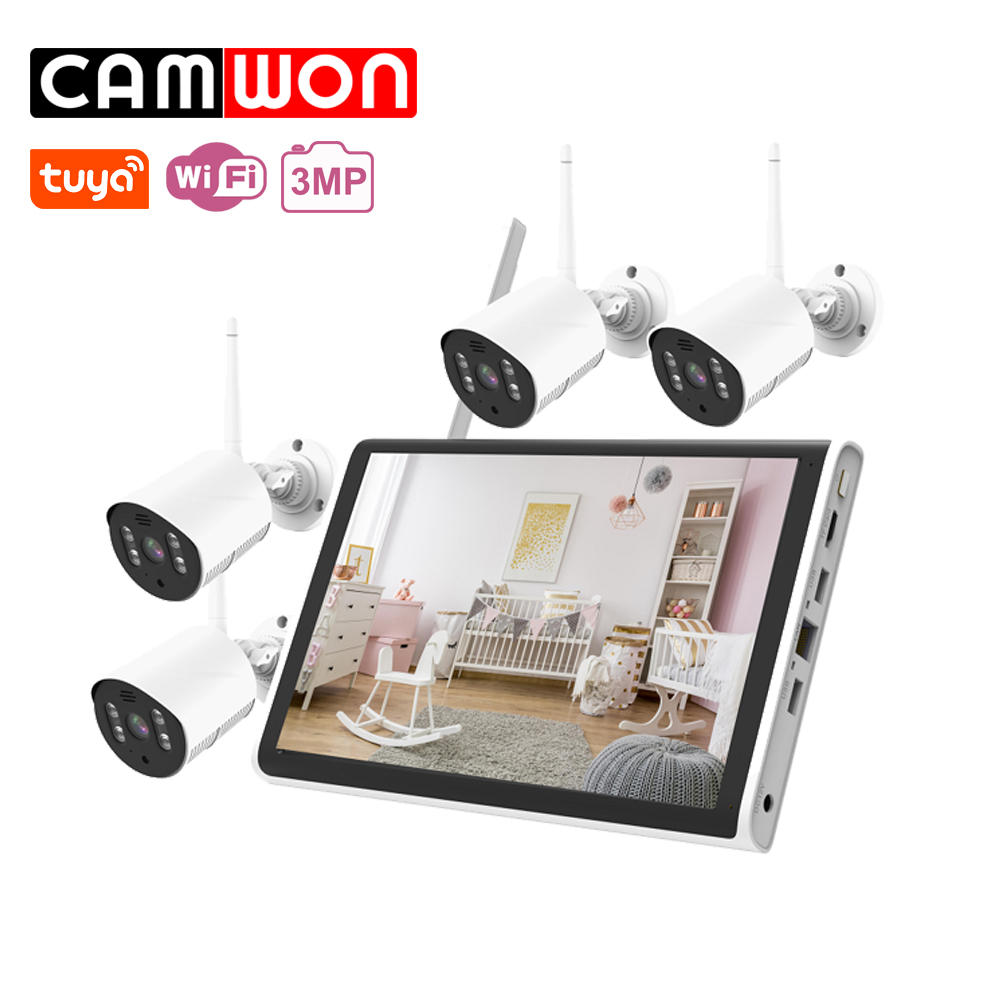

Wireless NVR Kit With Monitor

▪ 10.1Inch Monitor

▪ 4*3MP Bullet Camera

▪ Ai Face Recohnition

▪ Human Detection

▪ Infrared & Color Night Vision

List price：￥ 0.00

Price：￥ 0.00

Quantity：

Buy now

Add to cart

Product Description

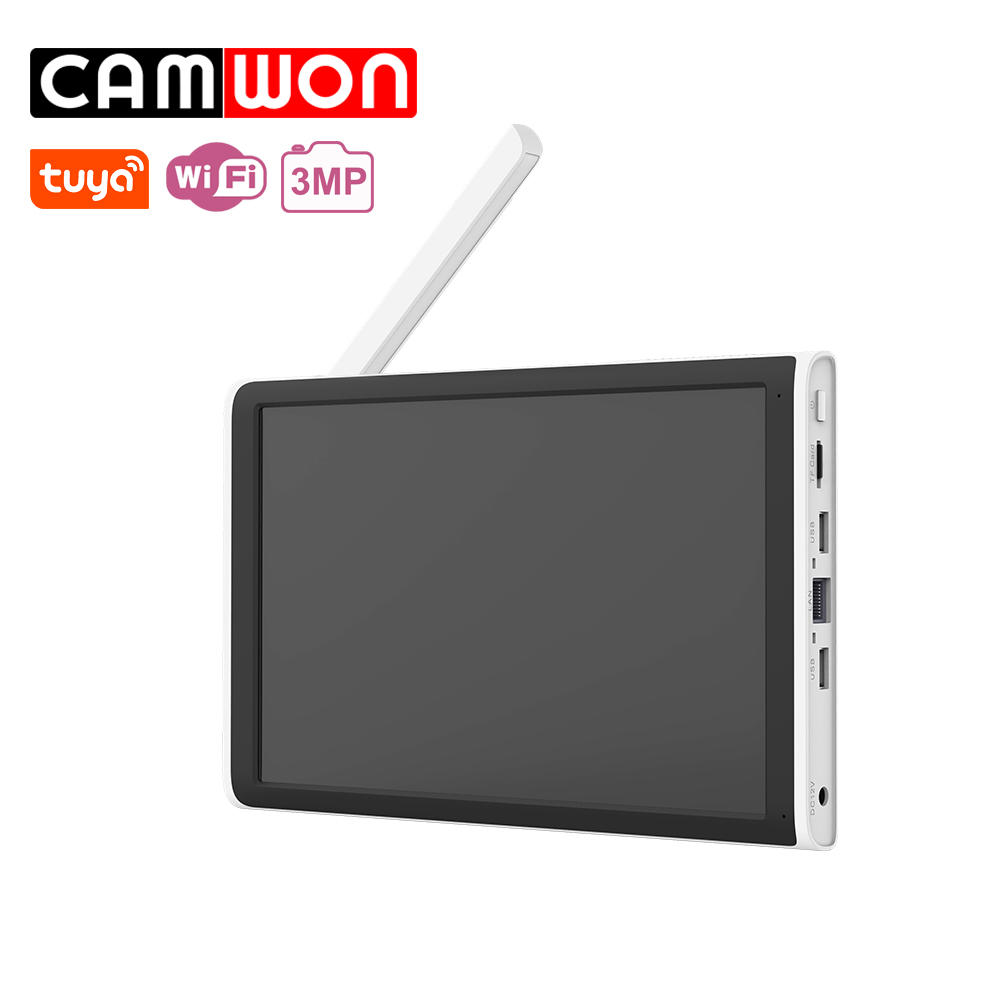

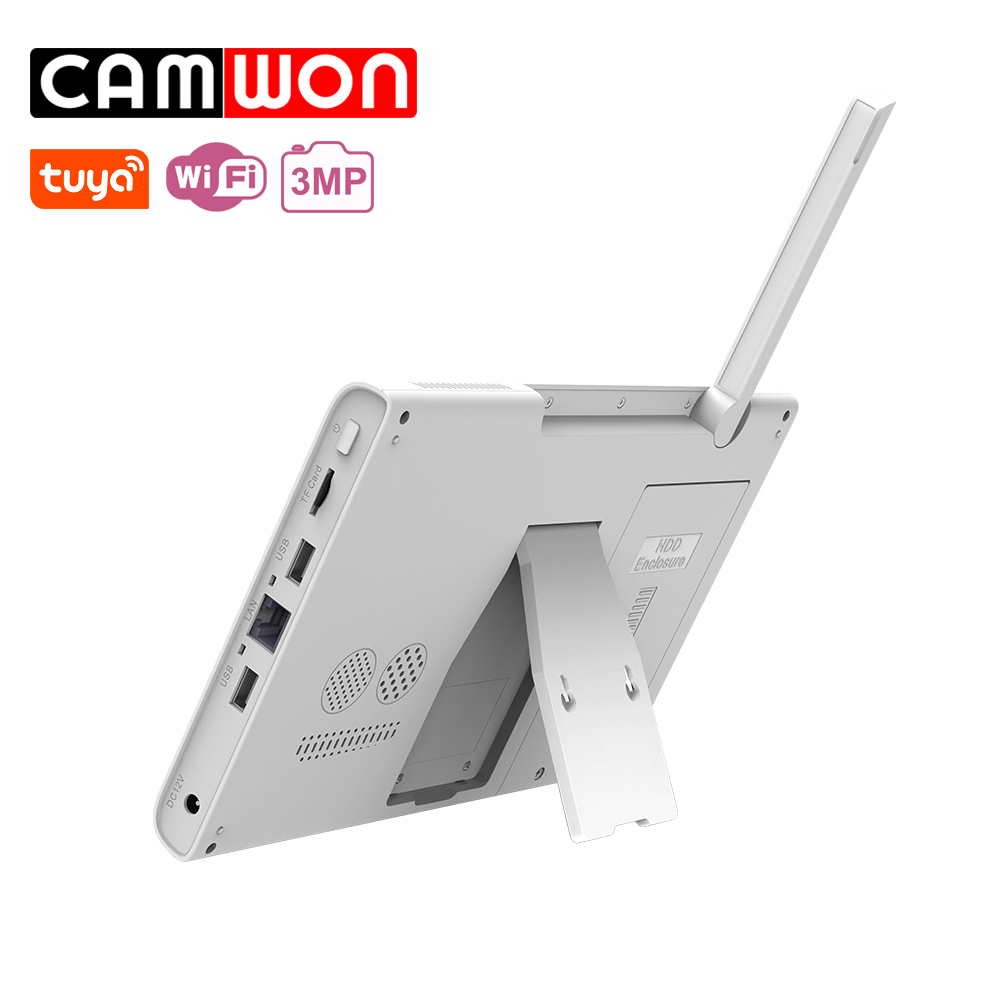

Wireless NVR Kit With Monitor

▪ 10.1Inch Monitor

▪ 4*3MP Bullet Camera

▪ Ai Face Recohnition

▪ Human Detection

▪ Infrared & Color Night Vision

Model No.:		WIP-TY204E
APP		Tuya Smart
WiFi NVR Specification
System	Main processor	XM8516D
	screen	10.1 inch 1280*800
	Operating System	Embedded Linux
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface	Operator interface	16-bit true color graphic menu operation interface, support mouse operation
	Preview	1/4
	Video input (IP)	4*3MP
	Access bandwidth	24Mbps
	Forwarding bandwidth	24Mbps
	Video compression	H.265+
	Display quality	Max 3MP
	Playback quality	3MP
	Decode	4*3MP
	VR	Unsupport
	Motion detection	Support(depend on camera)
Audio	Audio compression	G.711A
Audio	Intercom	Support
Record & playback	Recording mode	Manual>Alarm>Dynamic Detection>Timing
	Local payback	4*3MP
	Search mode	Search by Time/Calendar/Event/Channel
	Record storage	HDD、Network,SD card
	Backup mode	Network backup, USB hard disk, USB burner,

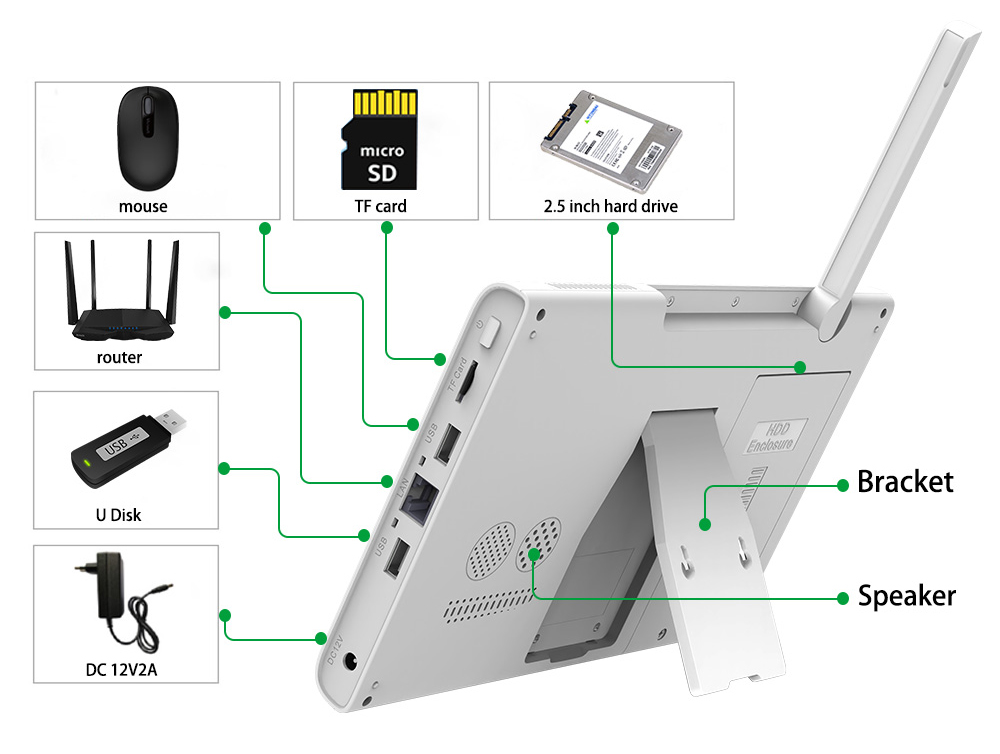

External Interface	Video output	1ch HDMI HD output
	Audio I/O	0/0
	Alarm I/O	0/0
	Network interface	1*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI
	USB interface	2*USB2.0 ports
	HDD	1* SATA+1 SD card
	ESATA	No
	Serial interface	No
Other	ONVIF	No
	Power supply	5V/2A Type-C
	Power Consumption	<10W(Without HDD)

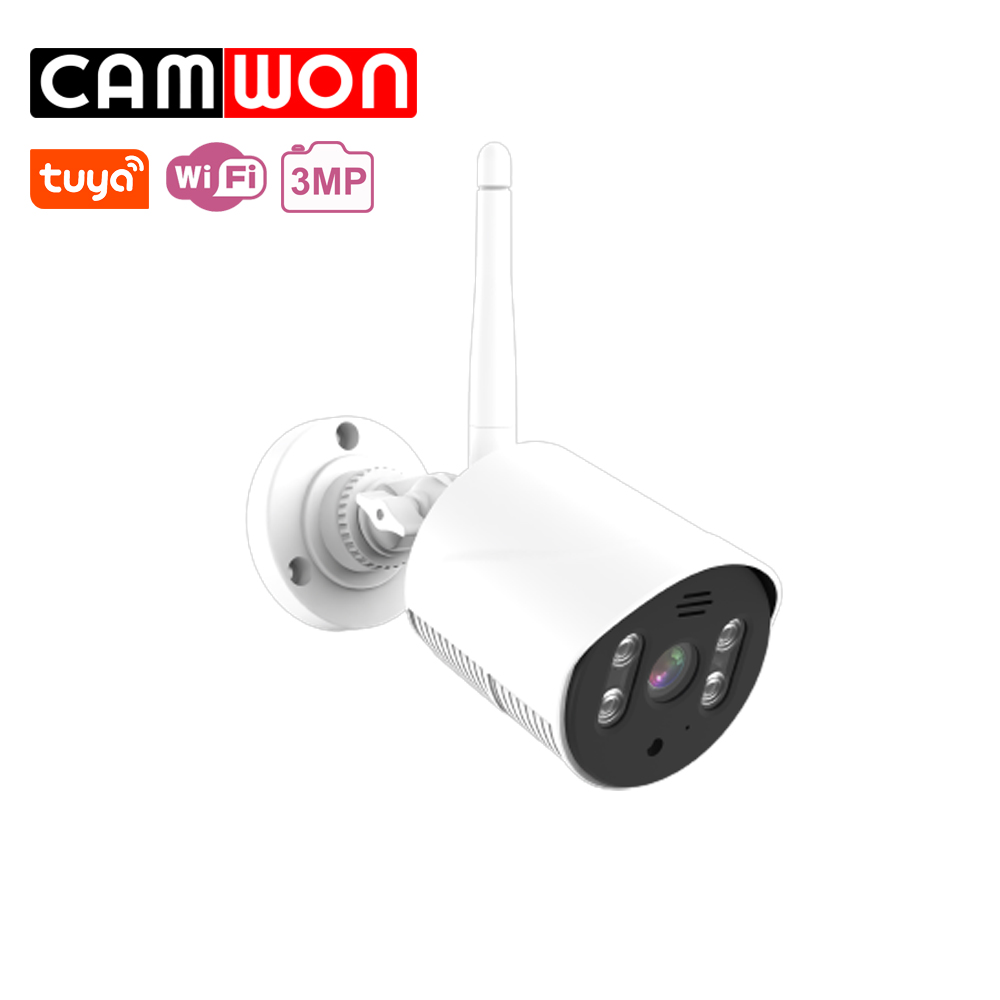

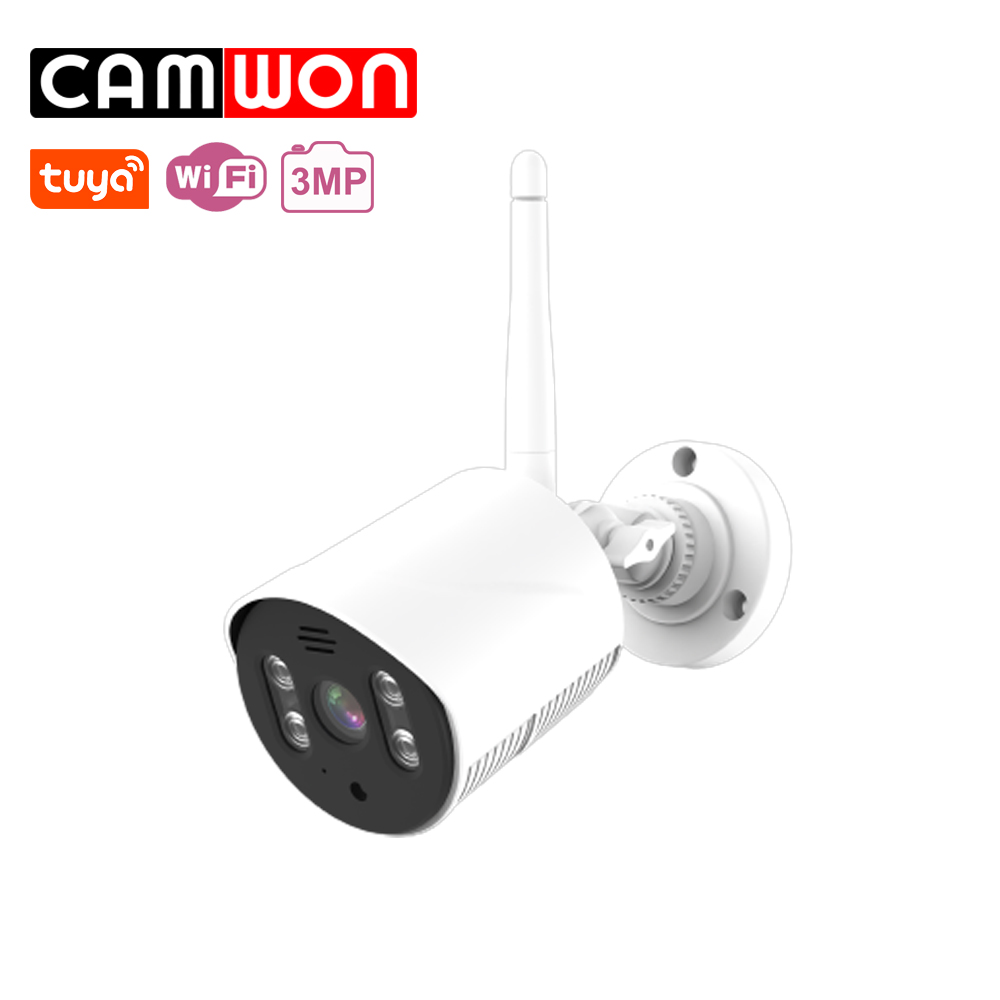

WiFi Camera Specification
To configure	Processor + sensor	XM530 Ai+2.0M 1/3"Q03 CMOS sensor
	Low illumination	Color: 0.1 Lux; B/W: 0.01 Lux
	Effective pixel	HD 3MP
	Lens	HD lens 3.6MM
	Infrared lamp	8pcs X ￠5 Lamp beads
	Infrared distance	150~200m
	Day&night	IR cut filter with auto switch
General	setting	Saturation, brightness and contrast ; Adjustable through IE browser or client software.
	setting
	Video compression	H.265+
	temperature	-10℃-＋60℃
	humidity	10%-90% RH
	Power supply	DC12V 1A
	Consumption	MAX 6W
	Waterproof grade	IP66

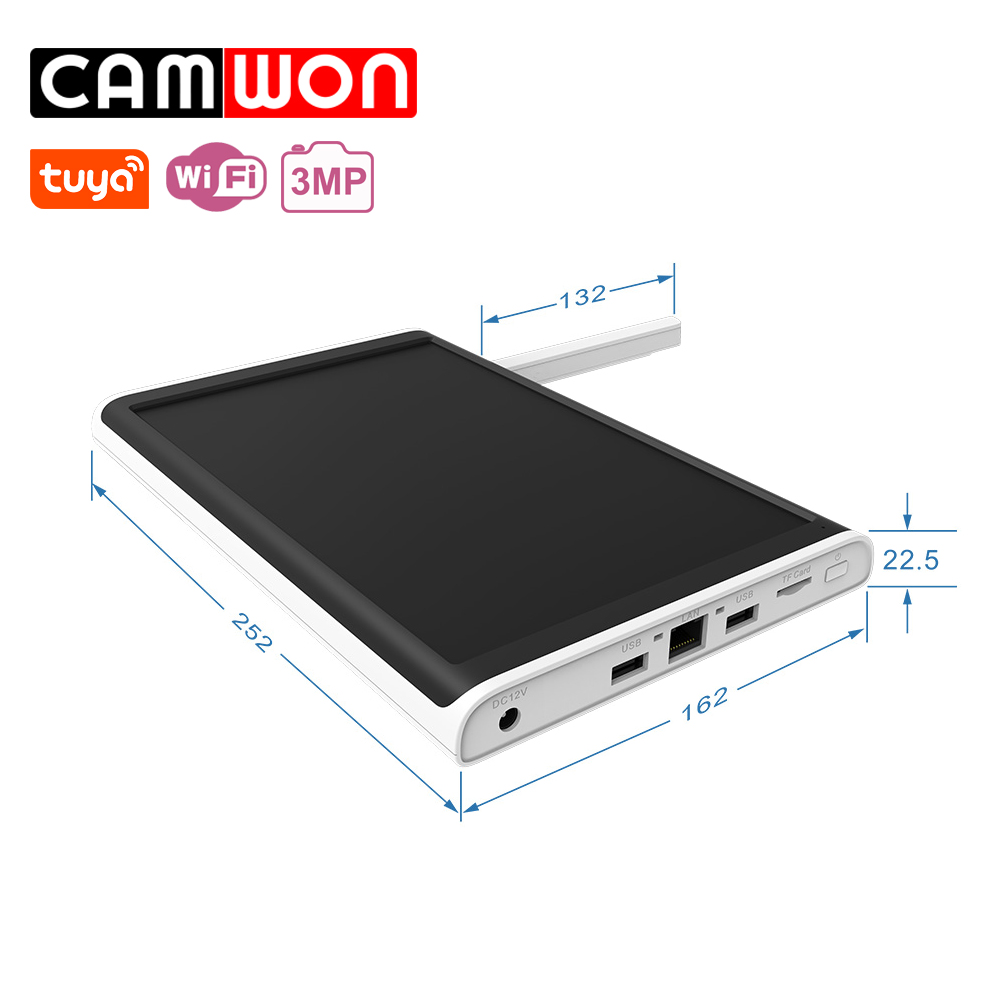

	Dimension	22112092;
	Weight	0.5 kg
