Product Description

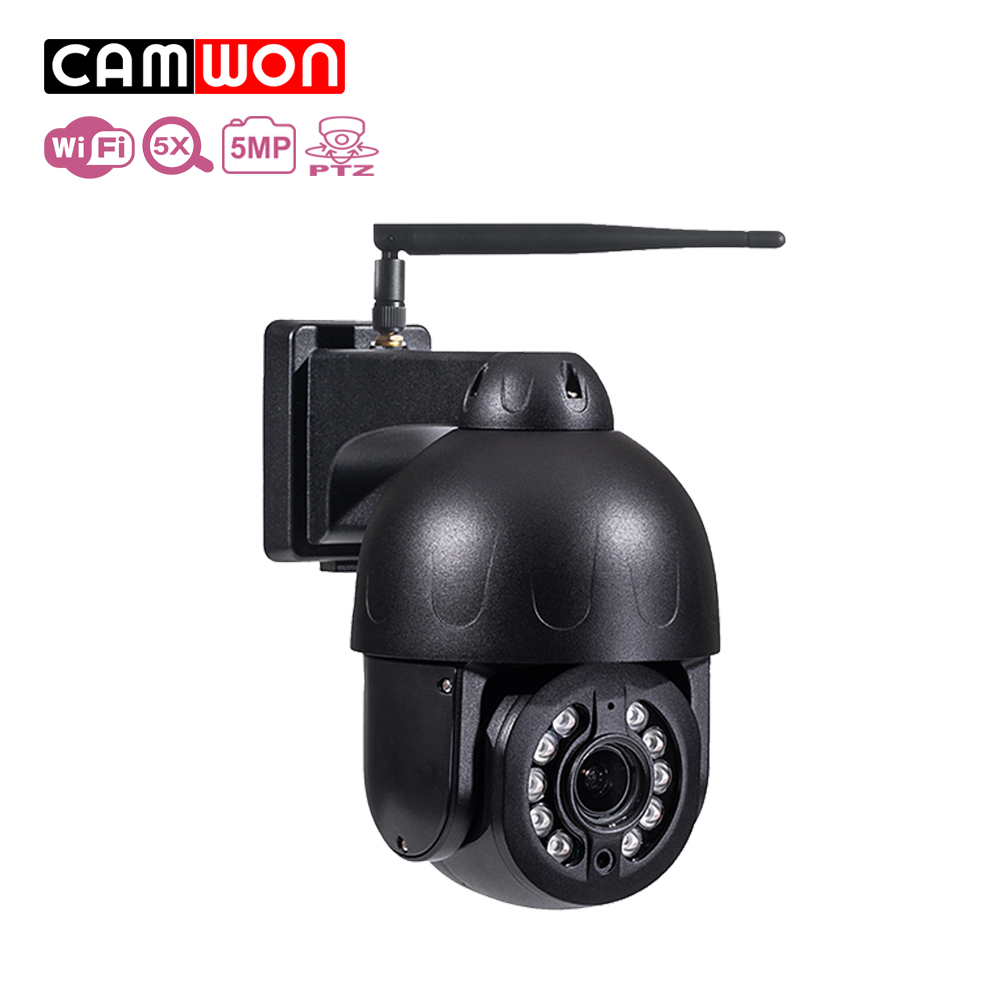

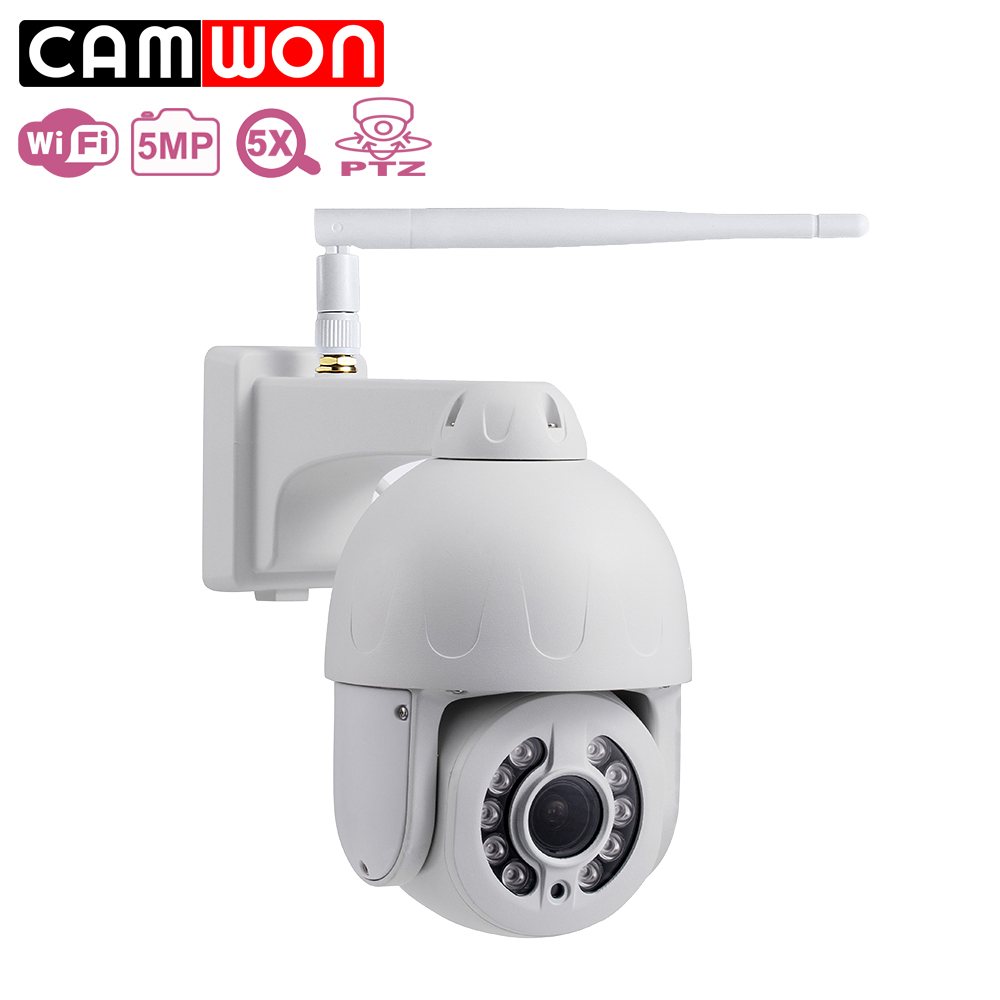

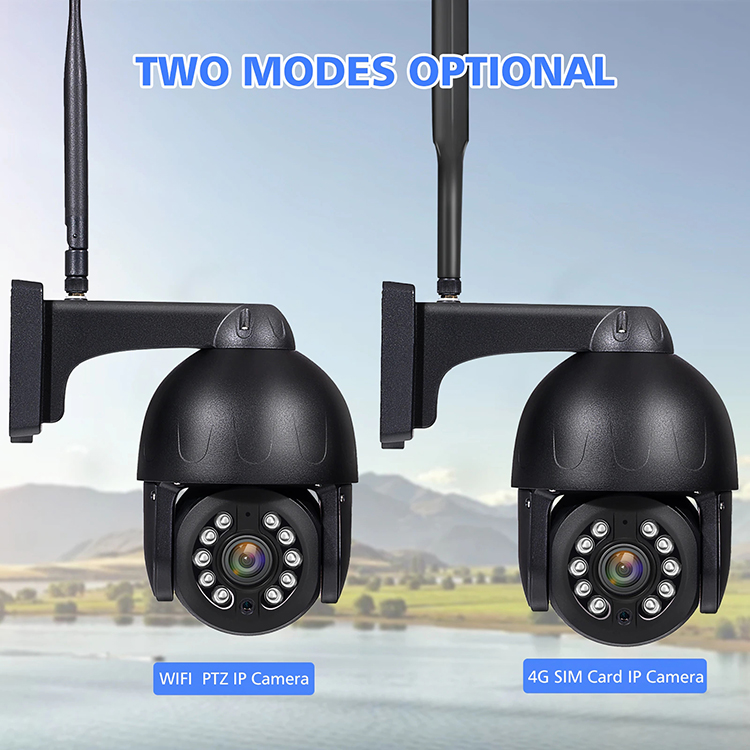

Wifi 5MP 5X PTZ Camera
• Lens: 5X Optical Zoom (2.7-13.5mm)
• AI Human Zoom Tracking
• 10pcs Smart Dual Light Source LED (IR & Warm White)

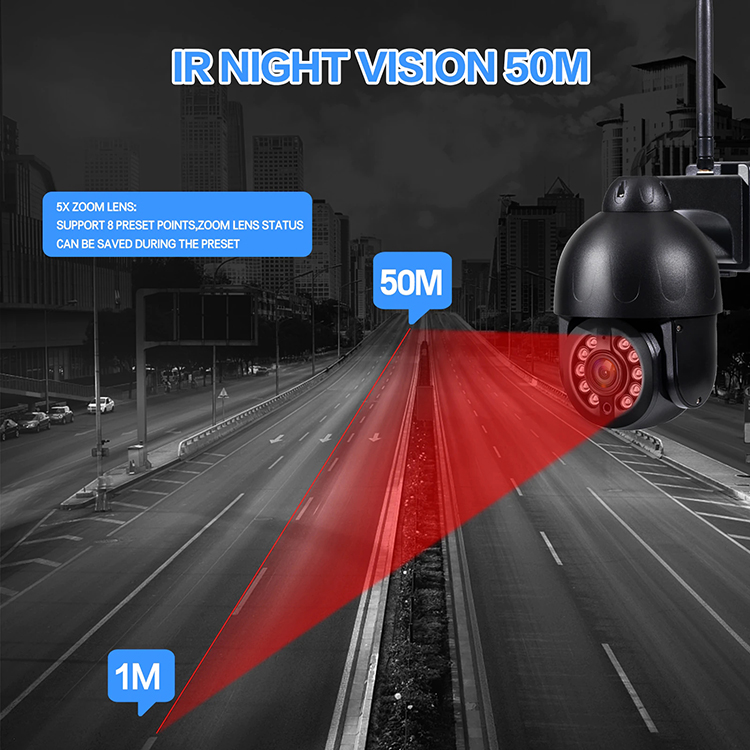

• Night vision: Range: 50m
• Support ONVIF, CMS PC client software

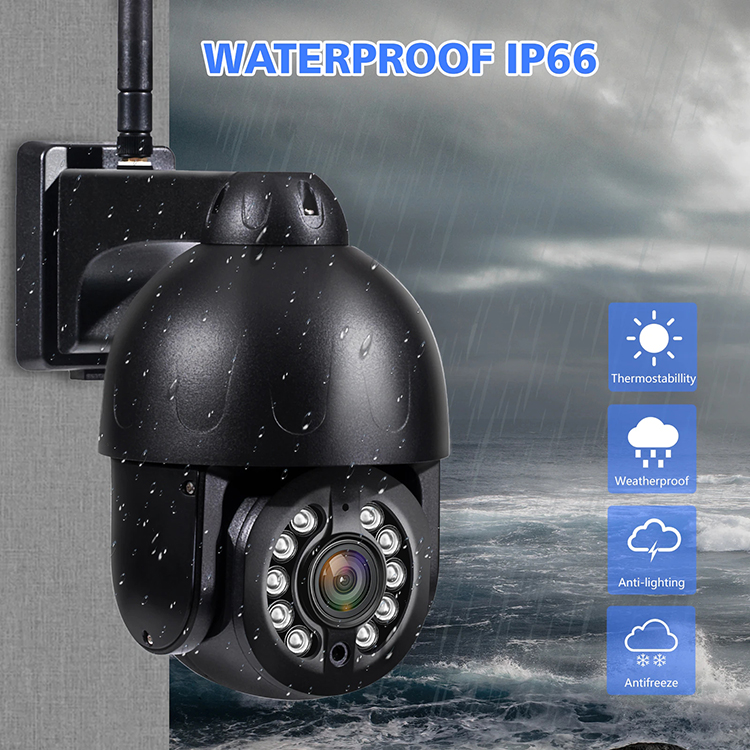

• Vandalproof Aluminum Shell, IP66 Waterproof
| Model | PTZW- IP5S500F | ||
| APP | Camhi pro / Camhi | ||
| Video | Sensor | 2.0/5.0 megapixel 1/2.9" SONY323 low lux CMOS | |
| Video resolution | Main stream: 1920x1080@20fps, 1280x720@25fps Sub stream: 640x352@25fps, 320x176@25fps | Main stream: 2560x1920@15fps, 2560x1440@15fps Sub stream: 800x600/800x448@25fps, 640x480/640x352@25fps | |
| Video compression | H.265 | ||
| Lens | 2.7-13.5mm 5X optical zoom auto focus lens | ||
| View angle | 96°~26.2° | ||
| Night vision | 6pcs array infrared LEDs, night vision distance 50m | ||
| Audio | Audio compression | G.726/G.711 | |
| Audio code rate | 8Kbps, 16bit | ||
| Audio input/output | Built-in MIC and speakers, support two way audio | ||
| Alarm | Motion detecting alarm | Can set 4 independent detection region (1-100 sensitivity can be set) | |
| Alarm linkage | Alarm send pictures to the mailbox, Alarm upload pictures and videos to the FTP server, Alarm record pictures and videos to Micro SD card, Alarm mobile phone message push | ||
| Alarm recording | Support Micro SD card and PC client linkage alarm recording | ||
| Network | Wireless | IEEE 802.11 b/g/n | |
| Ethernet | RJ45 Ethernet | ||
| Onvif protocol | Support ONVIF 2.4(backward compatible) | ||
| Storage | Micro SD card | Support up to 128G micro SD card | |
| Recording mode | Alarm record, timing record, | ||
| Video playback | Support APP, IE browser, remote client play and download the video | ||
| PTZ | Rotation angle | Horizon: 0°～355°, Vertical: 0°～120° | |
| Horizontal speed | 10°～ 30°/S | ||
| Vertical speed | 8°～ 25°/S | ||
| Preset | 8 preset points, supports cruise function | ||
| General specification | Power | DC12V 2A | |
| Operating environment | Environment -20℃~+60℃(-4℉~+140℉), | ||
| Humidity 10%～90%, non-condensing | |||
| Shell material | All metal shell | ||
| Waterproof level | IP66 | ||
| Product size | 160mm×100mm×175mm(L×W×H) | ||
| Product weight | 0.9kg | ||
| Package size | 225mmx205mmx120mm(L×W×H) | ||
| Package weight | 1.2kg | ||
| Reset button | Support | ||
