Product Description

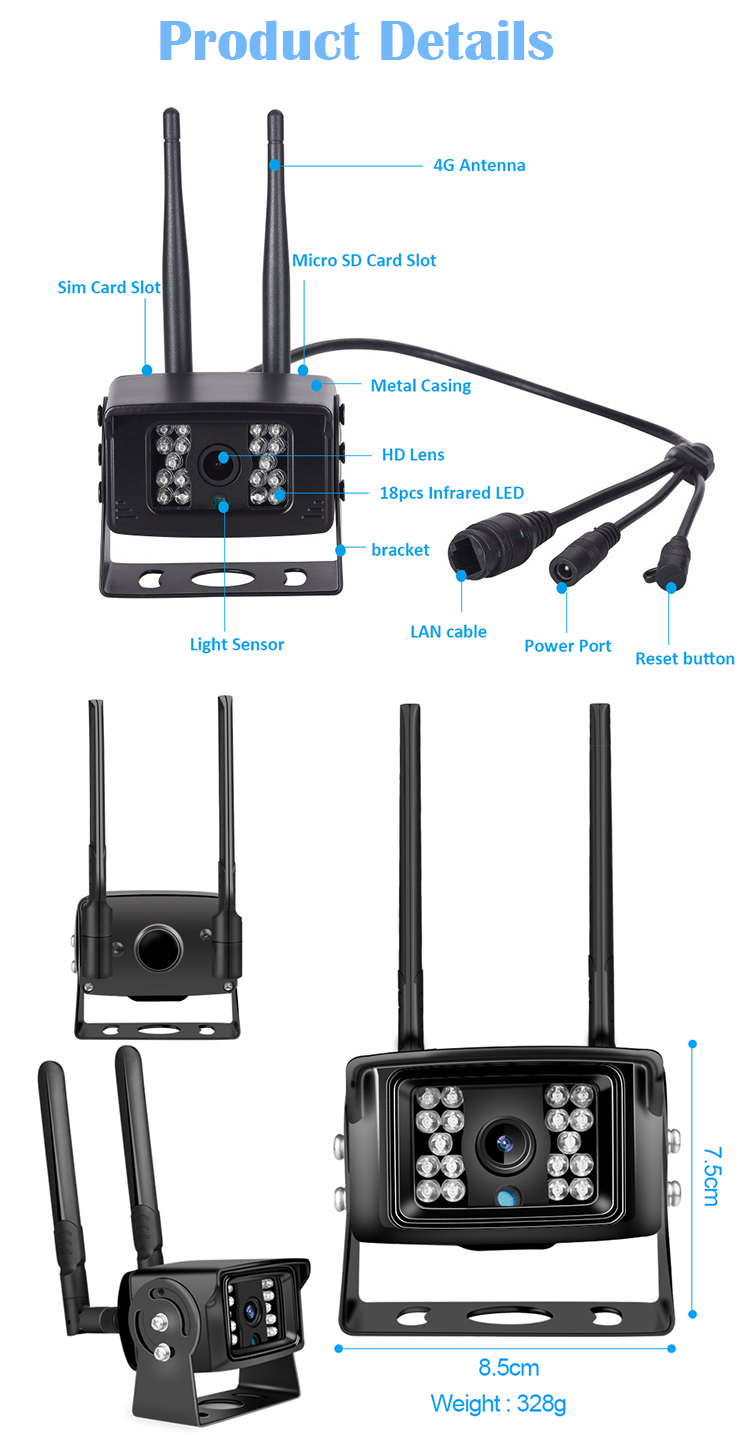

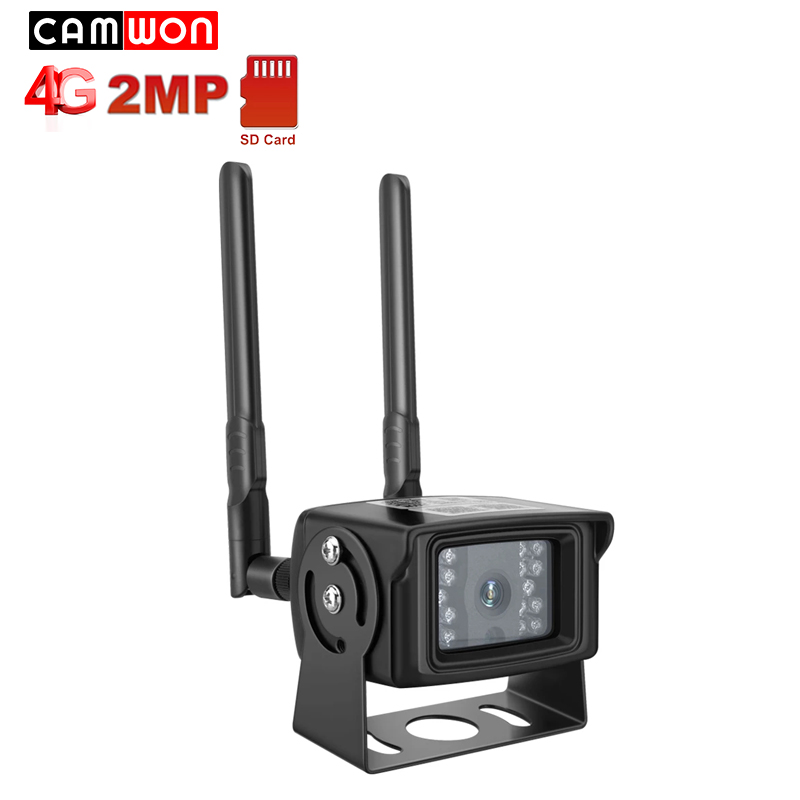

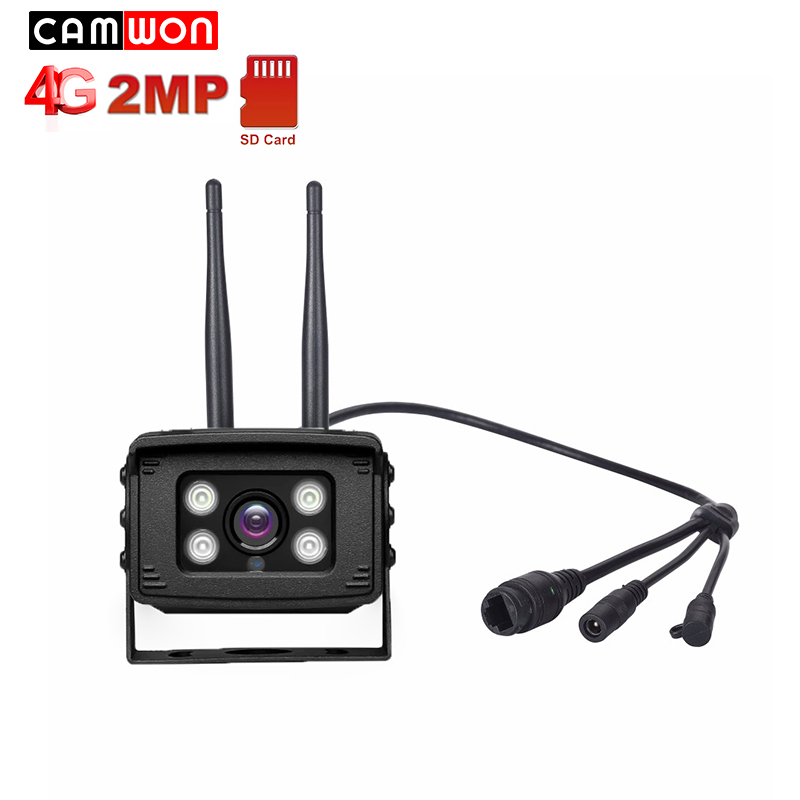

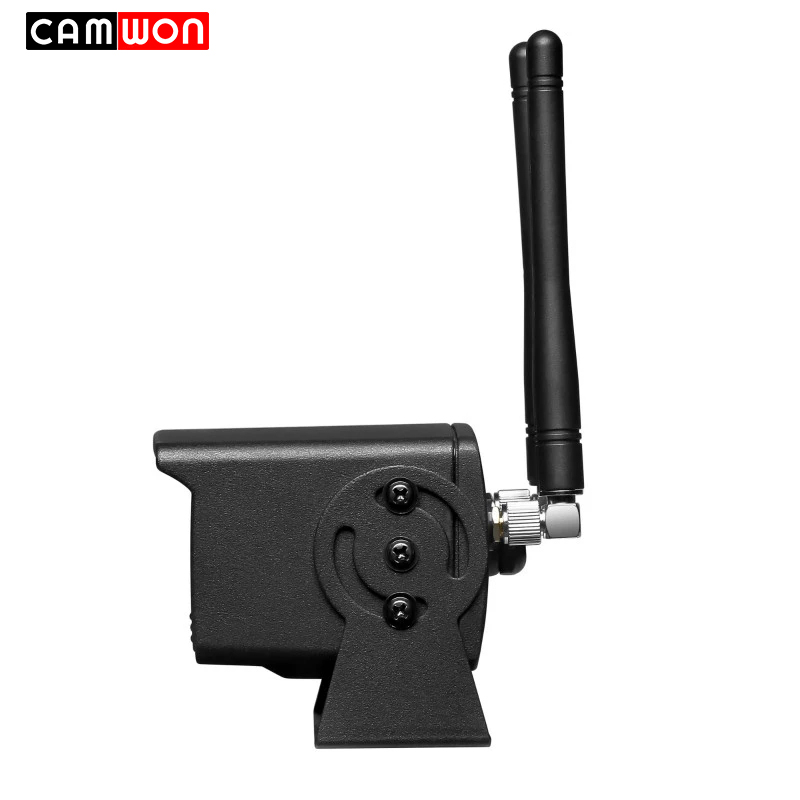

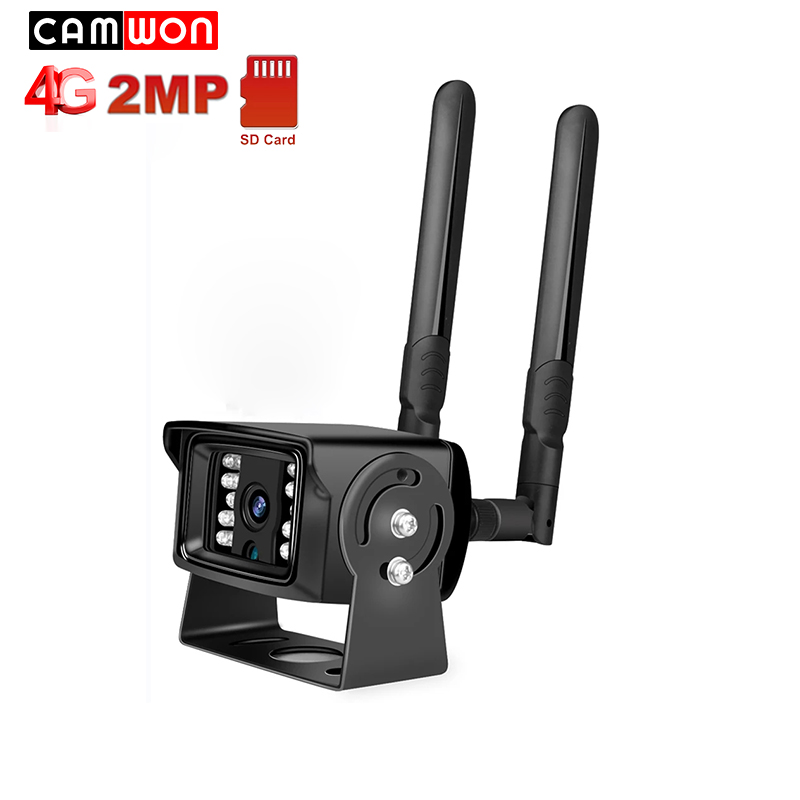

2.0/5.0 MP 3G/4G IP camera
▪ Support 3G/4G, support AP mode
▪ AI Human detection
▪ Support up to 128G TF card storage
▪ Support two way audio
▪ Optional 2.8/3.6(default)/6mm lens
▪ 4pcs IR Array, Night vision: 15 meters
▪ Support P2P, CMS PC client software
| Model | WIP-PB200L | WIP-PB500L | |
| APP | Camhi pro / Camhi | ||
| Video | Sensor | 2.0/5.0 megapixel 1/2.8" SONY335 star light CMOS | |
| Video resolution | Main stream: 1920x1080@20fps, 1280x720@25fps Sub stream: 640x352@25fps, 320x176@25fps | Main stream: 2560x1920@15fps, 2560x1440@15fps Sub stream: 800x600/800x448@25fps, 640x480/640x352@25fps | |
| Video compression | H.264 / H.265 | ||
| Lens | Optional 2.8/3.6(default)/6mm lens | ||
| View angle | 89.9°/75.7°(default)/50° based on lens | ||
| Night vision | 18pcs infrared LEDs, night vision distance 20m | ||
| Alarm | Motion detecting alarm | Can set 4 independent detection region (1-100 sensitivity can be set) | |
| Alarm linkage | Alarm send pictures to the mailbox, Alarm upload pictures and videos to the FTP server, Alarm record pictures and videos to Micro SD card, Alarm mobile phone message push | ||
| Alarm recording | Support Micro SD card and PC client linkage alarm recording | ||
| 3G/4G(Europe) | 3G standard | WCDMA | |
| 3G frequency range | B1(2100MHz), B8(900MHz) | ||
| 4G standard | FDD-LTE/TDD-LTE | ||
| 4G frequency range | B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz) | ||
| Interface type | Micro SIM card, Plug and play, no need to set | ||
| 3G/4G(America) | 3G standard | WCDMA/TD-SCDMA | |
| 3G frequency range | B2(1900MHz), B4(1700MHz) , B5(850MHz) | ||
| 4G standard | FDD-LTE | ||
| 4G frequency range | B1(2100MHz), B2(1900MHz), B12(700MHz), B13(700MHz) | ||
| Interface type | Micro SIM card, Plug and play, no need to set | ||
| Storage | Micro SD card | Support up to 128G micro SD card | |
| Recording mode | Alarm record, timing record, | ||
| Video playback | Support APP, IE browser, remote client play and download the video | ||
| General specification | Power | DC12V 1A | |
| Operating environment | Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%～90%, non-condensing | ||
| Shell material | All metal shell | ||
| Waterproof level | IP66 | ||
| Product size | 70mm×60mm×55mm(L×W×H) | ||
| Product weight | 0.4kg | ||
| Package size | 190mmx130mmx90mm(L×W×H) | ||
| Package weight | 0.55kg | ||
| Reset button | Support | ||
