Product Description

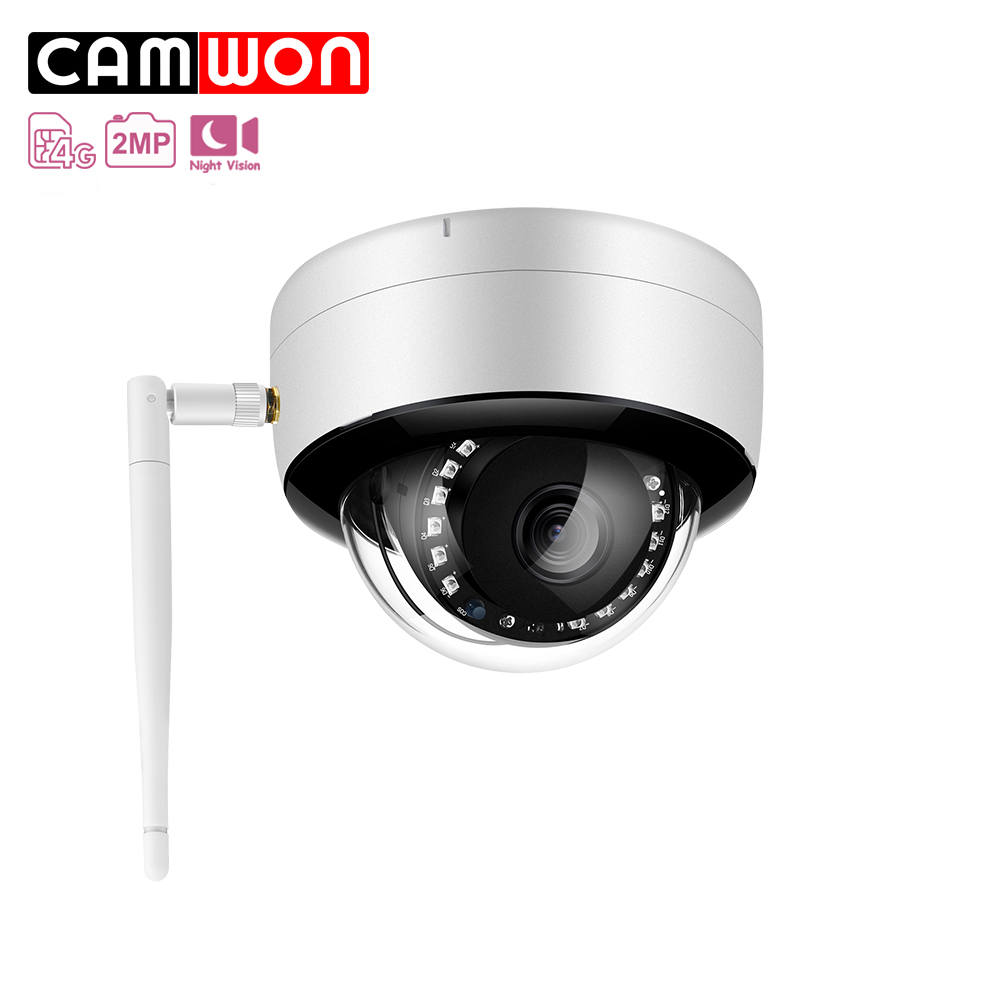

4G Outdoor 2MP Dome Camera
▪ Support 3G/4G, support AP mode;
▪ Support up to 128G TF card storage;
▪ AI Human detection;
▪ Lens: 3.6mm
▪ Night vision: 15~20m (12pcs IR LED);
▪ Support P2P, CMS PC client software
| Model | WIP-PB200S | WIP-PB500S | |
| APP | Camhi pro / Camhi | ||
| Video | Sensor | 2.0 / 5.0 megapixel 1/2.9" SONY323 low lux CMOS | |
| Video resolution | Main stream: 1920x1080@20fps, 1280x720@25fps Sub stream: 640x352@25fps, 320x176@25fps | Mainstream: 2560x1920@15fps, 2560x1440@15fps Substream: 800x600/800x448@25fps, 640x480/640x352@25fps | |
| Video compression | H.264 | ||
| Lens | Optional 2.8/3.6(default)/6mm lens | ||
| View angle | 89.9°/75.7°(default)/50° based on lens | ||
| Night vision | 15pcs infrared LEDs, night vision distance 15m | ||
| Alarm | Motion detecting alarm | Can set 4 independent detection region (1-100 sensitivity can be set) | |
| Alarm linkage | Alarm send pictures to the mailbox, Alarm upload pictures and videos to the FTP server, Alarm record pictures and videos to Micro SD card, Alarm mobile phone message push, Alarm trigger buzzer alarm | ||
| Alarm recording | Support Micro SD card and PC client linkage alarm recording | ||
| 3G/4G | 3G standard | WCDMA | |
| 3G frequency range | B1(2100MHz), B8(900MHz) | ||
| 4G standard | FDD-LTE/TDD-LTE | ||
| 4G frequency range | B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz) | ||
| Interface type | Nano SIM card, Plug and play, no need to set | ||
| Network | Ethernet | RJ45Ethernet | |
| Onvif protocol | SupportONVIF2.4(backwardcompatible) | ||
| Storage | Micro SD card | Support up to 128G micro SD card | |
| Recording mode | Alarm record, timing record, | ||
| Video playback | Support APP, IE browser, remote client play and download the video | ||
| General specification | Power | DC12V 2A | |
| Operating environment | Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%～90%, non-condensing | ||
| Waterproof level | IP66 | ||
| Product size | 73mm×73mm×103mm(L×W×H) | ||
| Product weight | 0.35kg | ||
| Package size | 160mmx120mmx95mm(L×W×H) | ||
| Package weight | 0.55kg | ||
| Reset button | Support | ||
