Product Description

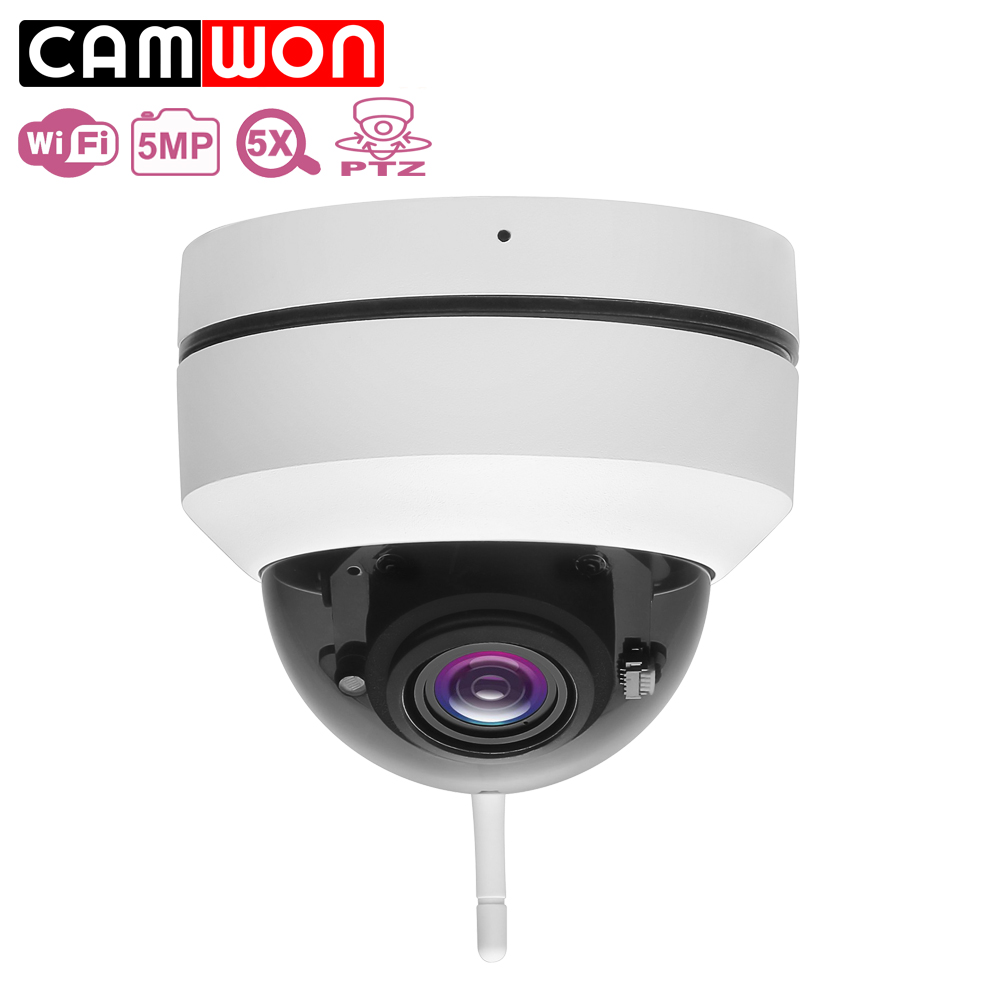

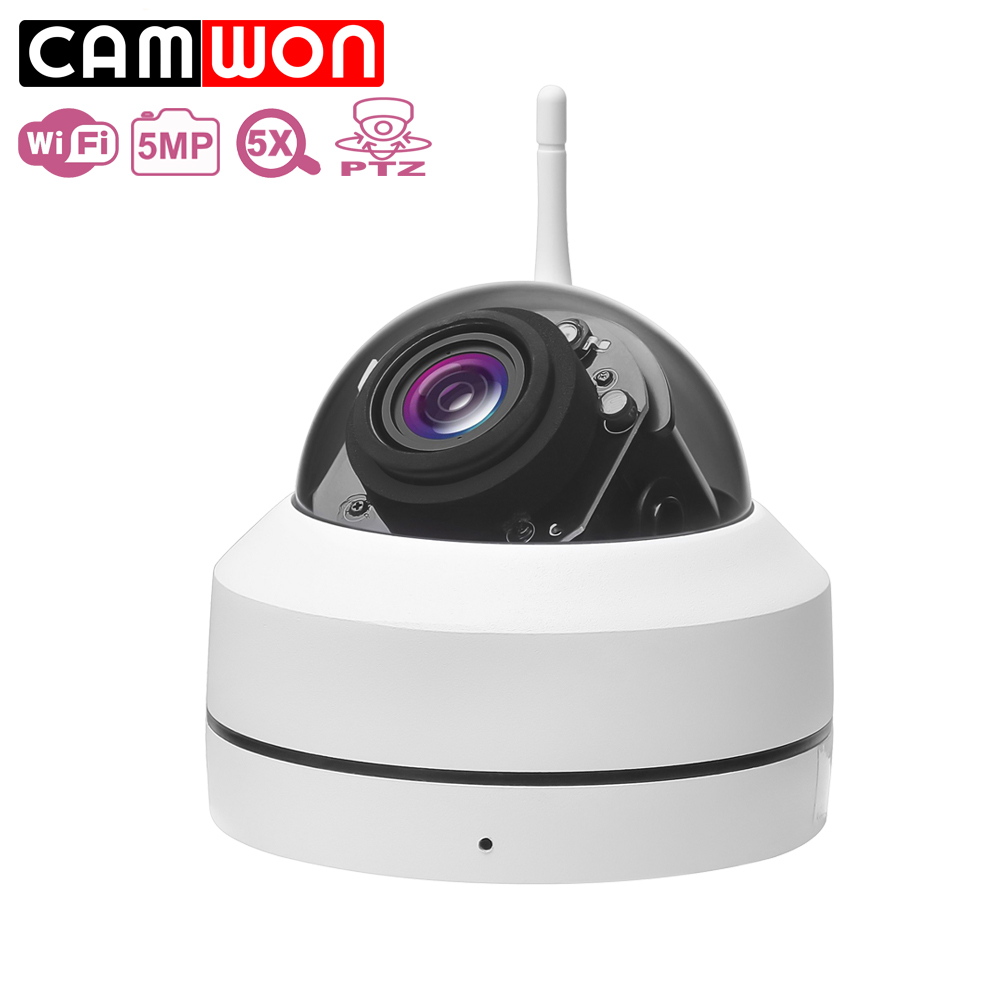

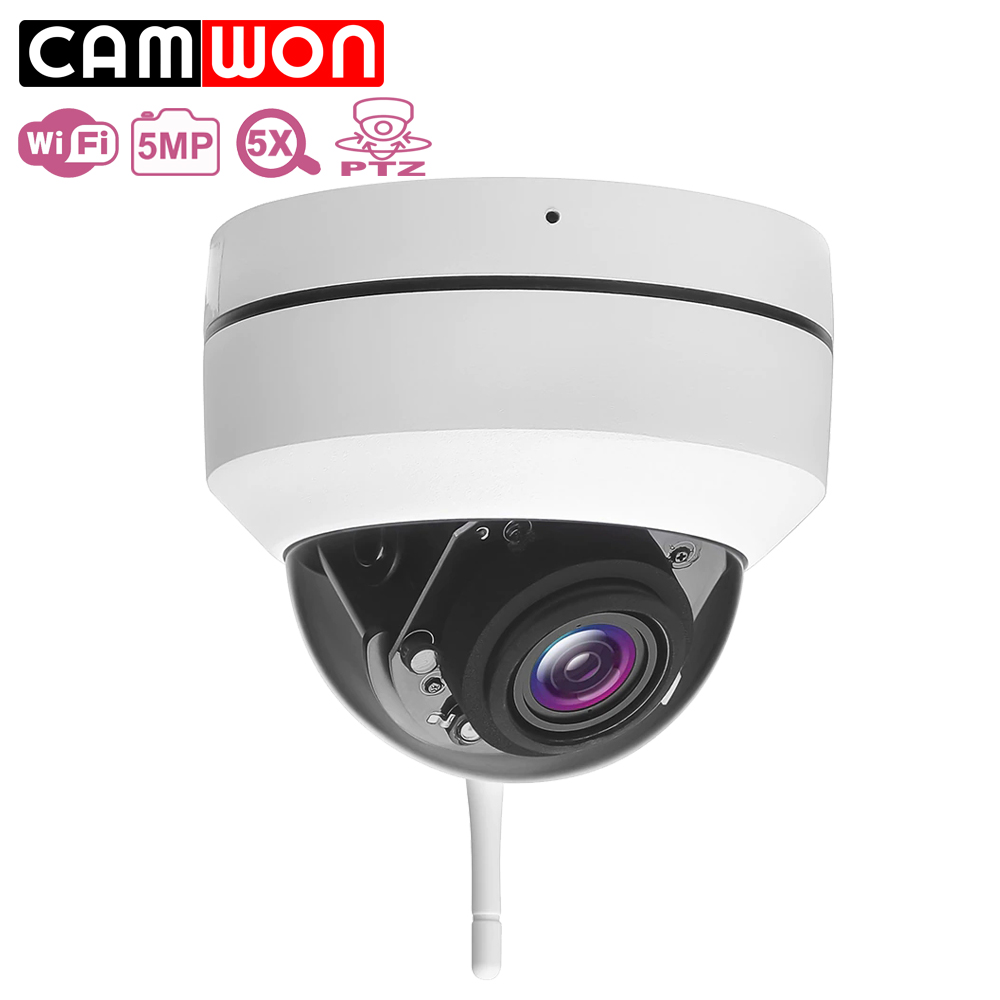

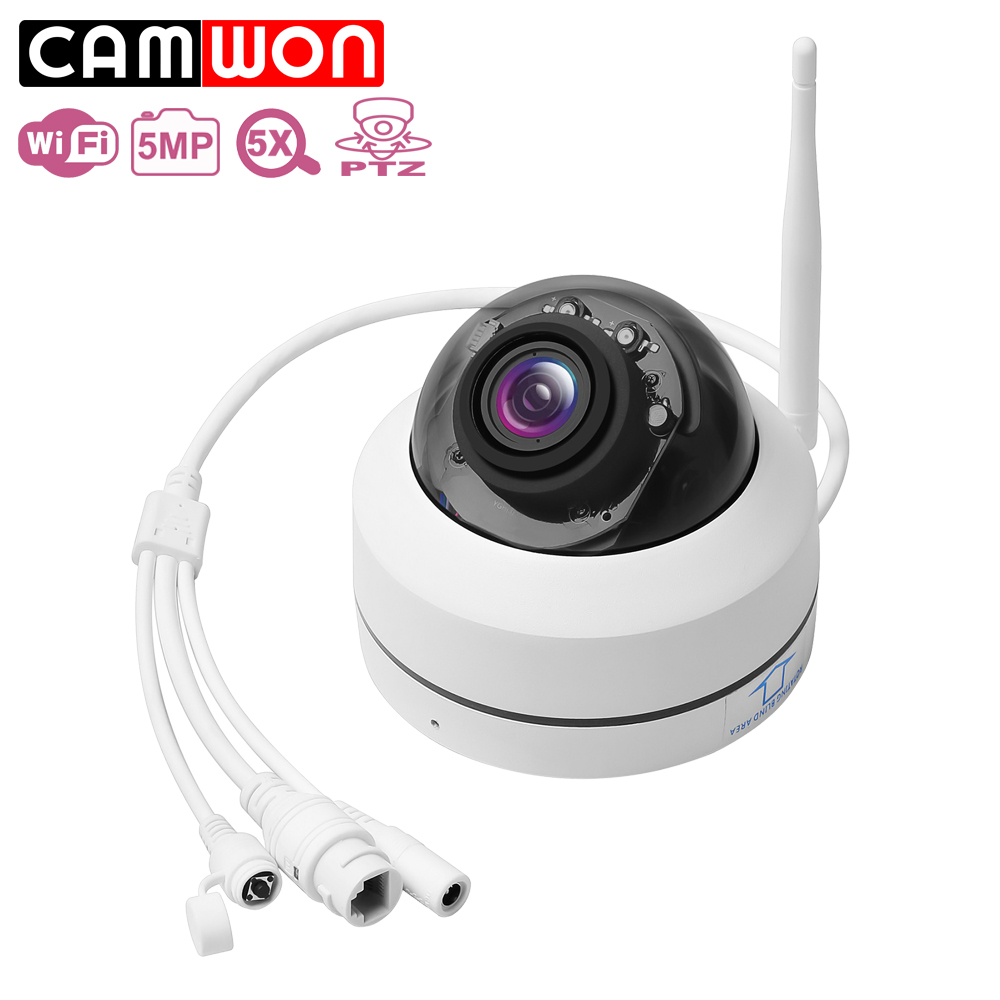

PTZ Mini Dome Camera
◆Lens: 5X Optical Zoom (2.7-13.5mm)
◆AI Human Zoom Tracking
◆Pan 0-350º & Tilt 0-90º
◆Night vision: 25 meters
◆Audio: Built-in Mic one way audio
◆Local storage: Up to 128G micro SD
◆Support P2P, ONVIF, CMS Surveillance
| Model | PTZW-IP5S500G | ||
| APP | Camhi pro / Camhi | ||
| Video | Sensor | 5.0 megapixel 1/2.8" SONY335 low lux CMOS | |
| Video resolution | Main stream: 2560x1920@15fps, 2560x1440@15fps Sub stream: 800x600/800x448@25fps, 640x480/640x352@25fps | ||
| Video compression | H.264/H.265 | ||
| Lens | 2.7-13.5mm 5X optical zoom auto focus lens | ||
| View angle | 108.1°- 30.3° | ||
| Night vision | 2pcs array infrared LEDs, night vision distance 30m | ||
| Audio | Audio compression | G.726/G.711 | |
| Audio code rate | 8Kbps, 16bi | ||
| Audio input/output | Built-in MIC, support voice monitor | ||
| Alarm | Motion detection | Can set 4 independent detection areas, can set the sensitivity of 1-100 | |
| Humanoid detection | Support, can be used in conjunction with motion detection to make the alarm more accurate | ||
| Alarm linkage | Alarm mobile phone message push, Alarm recording or capture to Micro SD card, Alarm trigger sound alarm, Alarm capture sent to Email, Alarm recording or capture saved to FTP | ||
| Alarm time | All day or manually customize alarm time period | ||
| Interface | Power | 5.5*2.1mm power interface | |
| Ethernet | RJ45 Ethernet interface | ||
| Reset button | Support, press for 5 seconds to reset the camera | ||
| Micro SD card | Support up to 128G micro SD card | ||
| Wireless | IEEE 802.11 b/g/n | ||
| Onvif protocol | Support ONVIF 2.4(backward compatible) | ||
| PTZ | Rotation angle | Horizon: 350°, Vertical: 90° | |
| Horizontal speed | 12°/S | ||
| Vertical speed | 15°/S | ||
| Preset | 8 preset points | ||
| General specification | Power consumption | Day: 3W, Night: 8W | |
| Operating environment | Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%～90%, non-condensing | ||
| Shell material | Metal shell and plastic sheath | ||
| Waterproof level | IP65 | ||
| Product size | 113mm×113mm×113mm(L×W×H) | ||
| Product weight | 0.45kg | ||
| Package size | 148mmx148mmx148mm(L×W×H) | ||
| Package weight | 0.7kg | ||
