Product Description

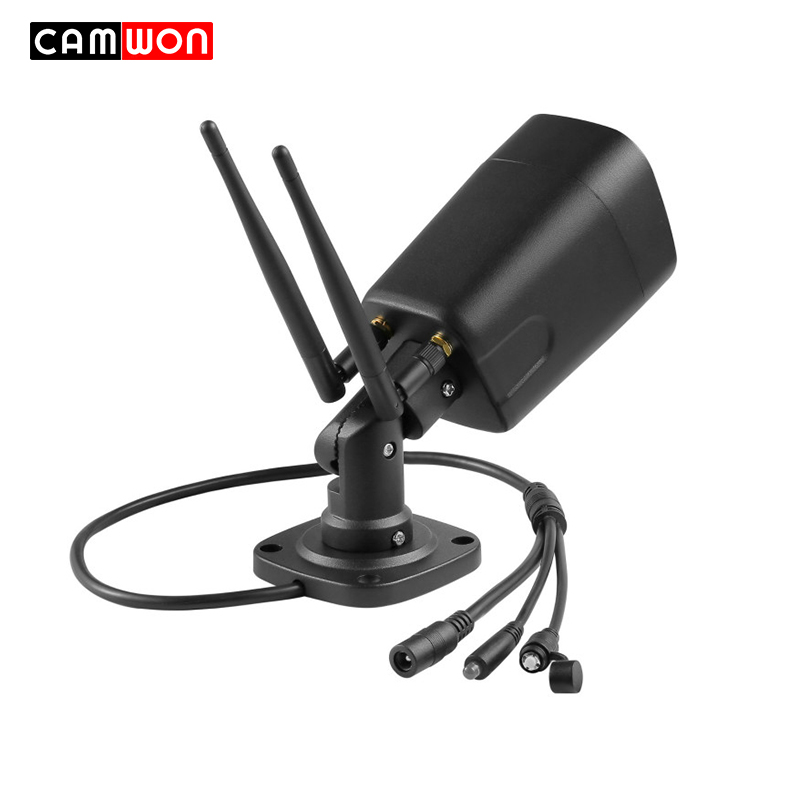

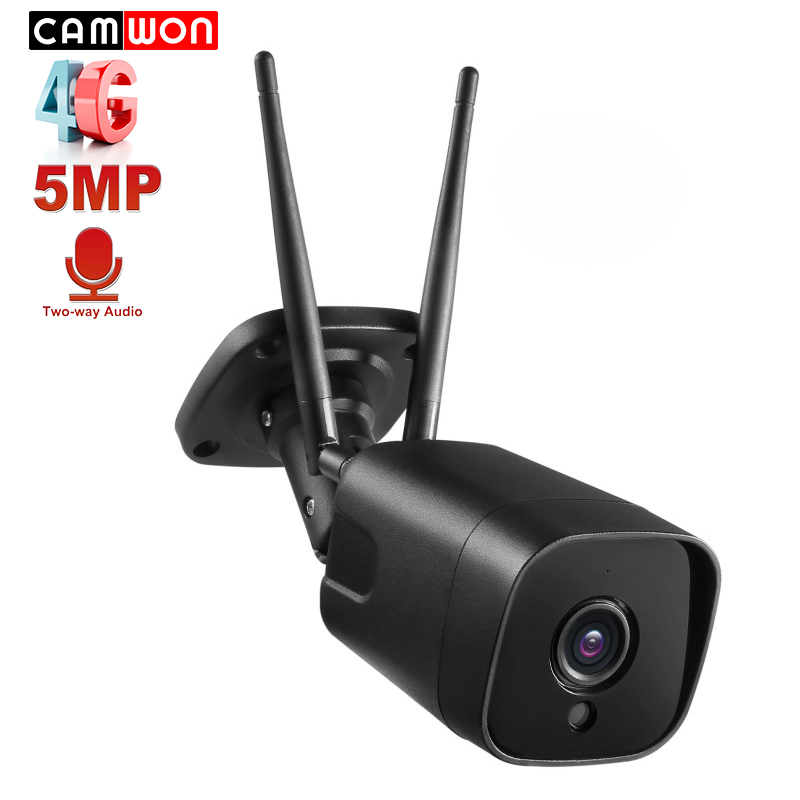

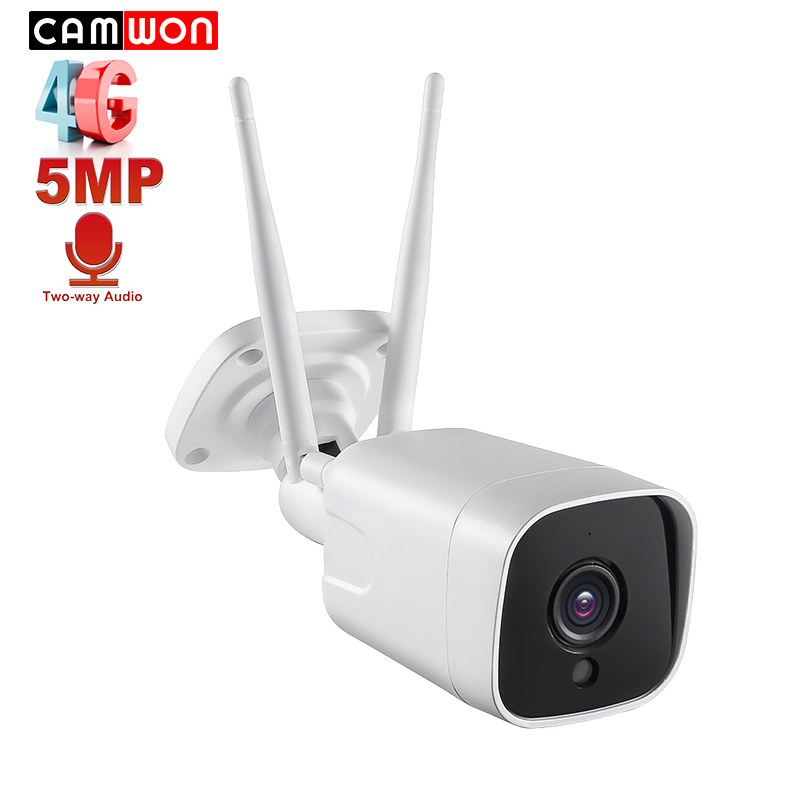

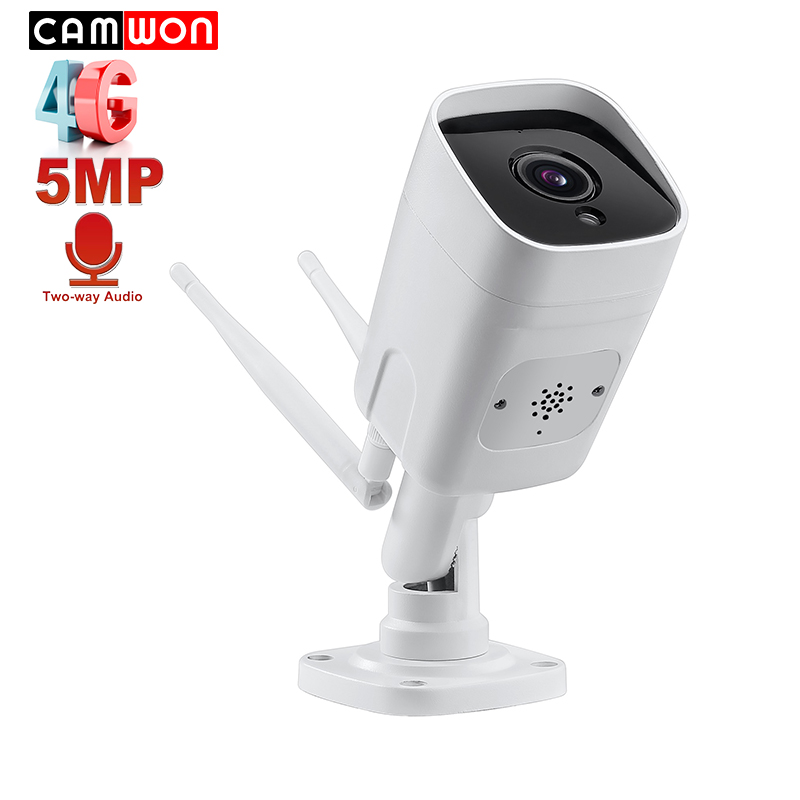

5.0 MP 3G/4G IP camera
▪ Support AP mode, P2P
▪ Support up to 128G TF card storage
▪ Support two way audio
▪ Optional 2.8/3.6(default) lens
▪ AI Human detection
▪ Night Vision: 20m (6pcs IR Array)
| Model | WIP-PB200J | WIP-PB500J | |
| APP | Camhi / Camhi pro | ||
| Video | Sensor | 2.0 / 5.0 megapixel 1/2.8" SONY335 low lux CMOS | |
| Video resolution | Main stream: 1920x1080@20fps, 1280x720@25fps Sub stream: 640x352@25fps, 320x176@25fps | Main stream: 2560x1920@15fps, 2560x1440@15fps Sub stream: 800x600/800x448@25fps, 640x480/640x352@25fps | |
| Video compression | H.264 / H.265 | ||
| Lens | Optional 2.8/3.6(default)/6mm lens | ||
| View angle | 89.9°/75.7°(default)/50° based on lens | ||
| Night vision | 10pcs SMD array infrared LEDs, night vision distance 25m | ||
| Audio | Audio compression | G.726/G.711 | |
| Audio code rate | 8Kbps, 16bit | ||
| Audio input/output | Built-in MIC and speakers, support two way audio | ||
| Alarm | Motion detecting alarm | Can set 4 independent detection region (1-100 sensitivity can be set) | |
| Alarm linkage | Alarm send pictures to the mailbox, Alarm upload pictures and videos to the FTP server, Alarm record pictures and videos to Micro SD card, Alarm mobile phone message push, Alarm trigger sound alarm | ||
| Alarm recording | Support Micro SD card and PC client linkage alarm recording | ||
| 3G/4G(Europe, Asia, Africa) | 3G standard | WCDMA | |
| 3G frequency range | B1(2100MHz), B8(900MHz) | ||
| 4G standard | FDD-LTE/TDD-LTE | ||
| 4G frequency range | B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz) | ||
| Interface type | Nano SIM card, Plug and play, no need to set | ||
| 3G/4G(America) | 3G standard | WCDMA/TD-SCDMA | |
| 3G frequency range | B2(1900MHz), B4(1700MHz) , B5(850MHz) | ||
| 4G standard | FDD-LTE | ||
| 4G frequency range | B1(2100MHz), B2(1900MHz), B12(700MHz), B13(700MHz) | ||
| Interface type | Micro SIM card, Plug and play, no need to set | ||
| Storage | Micro SD card | Support up to 128G micro SD card | |
| Recording mode | Alarm record, timing record, | ||
| Video playback | Support APP, IE browser, remote client play and download the video | ||
| General specification | Power | DC12V 1A | |
| Operating environment | Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%～90%, non-condensing | ||
| Shell material | All metal shell | ||
| Waterproof level | IP66 | ||
| Product size | 175mm×62mm×66mm(L×W×H) | ||
| Product weight | 0.35kg | ||
| Package size | 218mmx158mmx106mm(L×W×H) | ||
| Package weight | 0.6kg | ||
