H.264+/H.264 video encoding, support dual stream, AVI format; support stream adjustable 0.1M~6Mpbs; support frame rate adjustable from 1 to 30 frames per second
Image output
Main stream: 1920*1080@18fps; Substream: 704*576@25fps
shutter
1/50 (1/60) second to 1/10000 second
Lens
2.8MM/3.6MM
Day and night conversion mode
Support IR-CUT
Noise reduction
Supports 2D/3D noise reduction
Wide dynamic
Supports digital wide dynamics
Audio processing
G.711A codec standard, support two-way voice intercom function, support audio and video synchronization
Signal interface
1 photosensitive resistor interface, 1 IR-CUT drive interface, support the linkage of the photoresistor input signal with IR-CUT, infrared light
Human sensing
PIR infrared human sensor, support passive infrared sensor
WIFI antenna interface
1 WIFI antenna interface, support for wireless network connection, a key WPS function

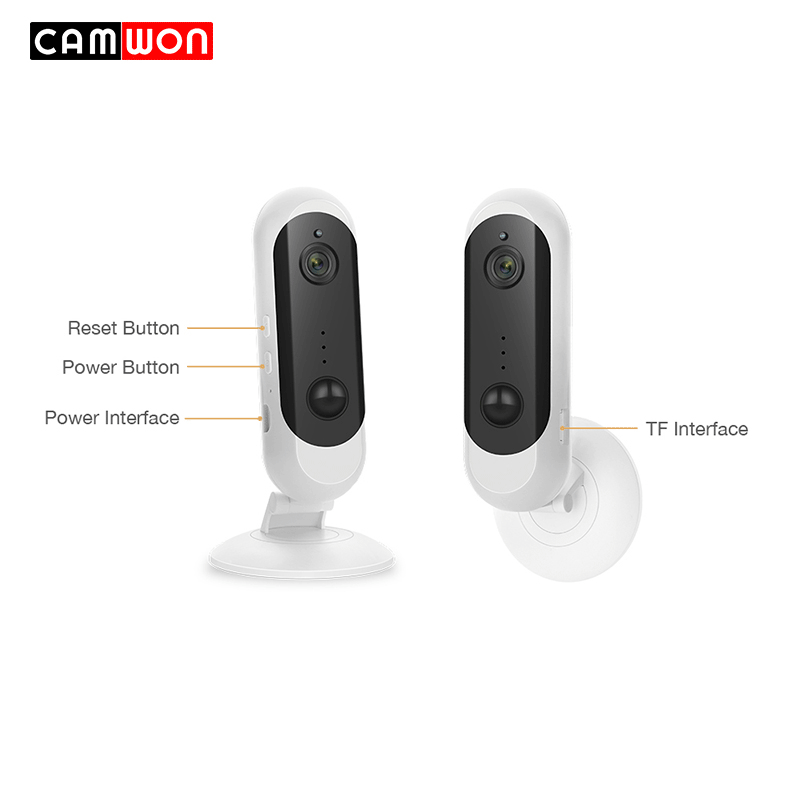

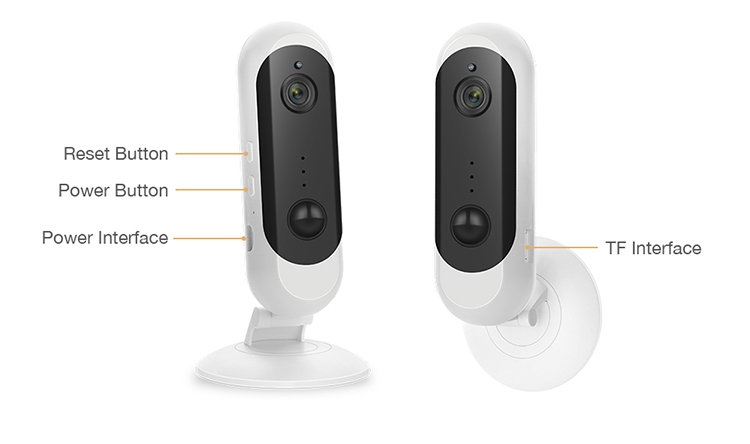

Reset key interface
Supports one-button reset
SD card slot
stand by
reliability
Comprehensive lightning protection, in line with national international standards; 7*24 hours high temperature test at 65°C is stable and reliable (including testing of the whole machine)
ONVIF
NO
IR
10M
power

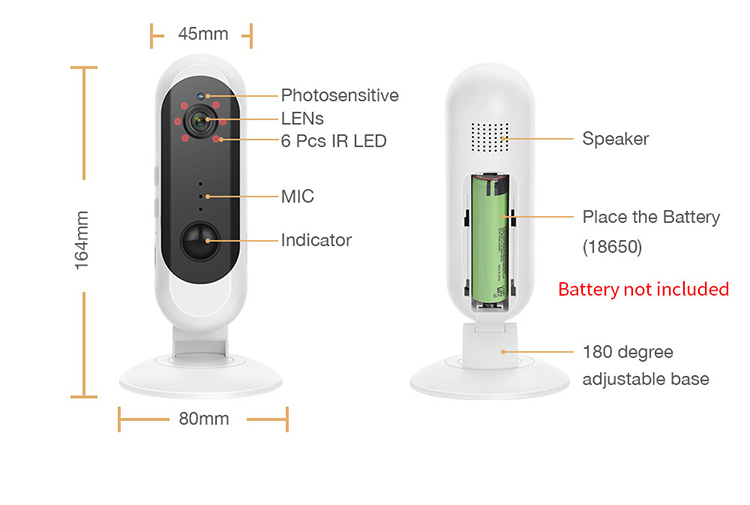

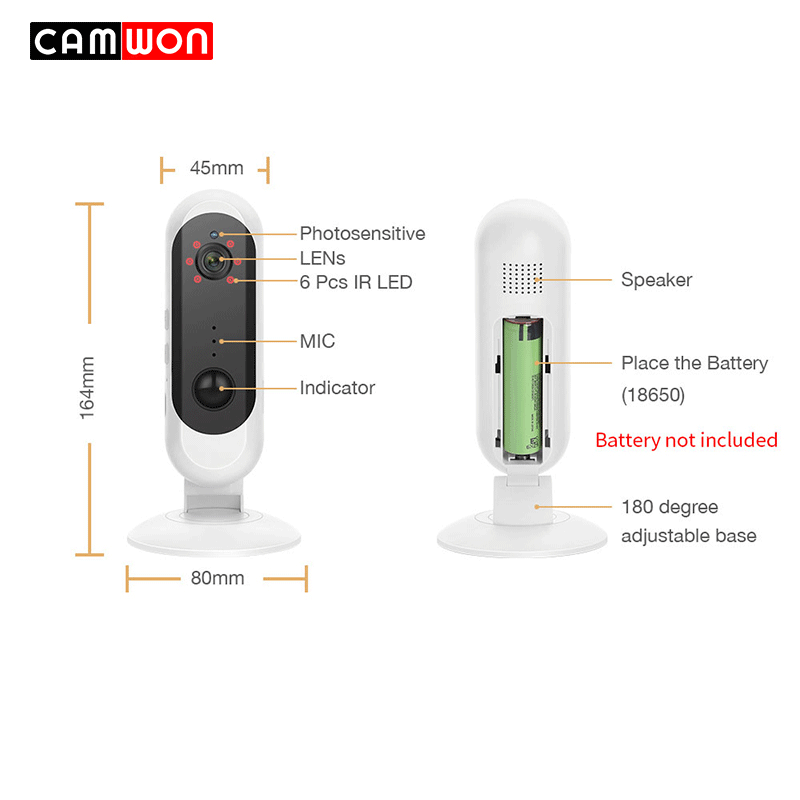

Power supply (optional): 1, DC5V; 2, 1 * 18650 power supply (support charging)
