Product Description

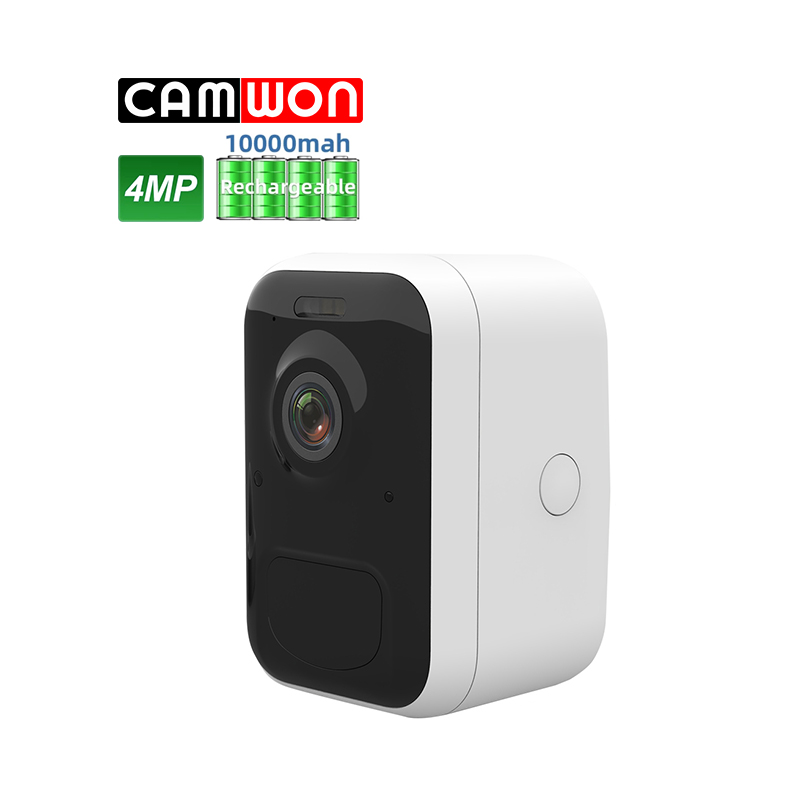

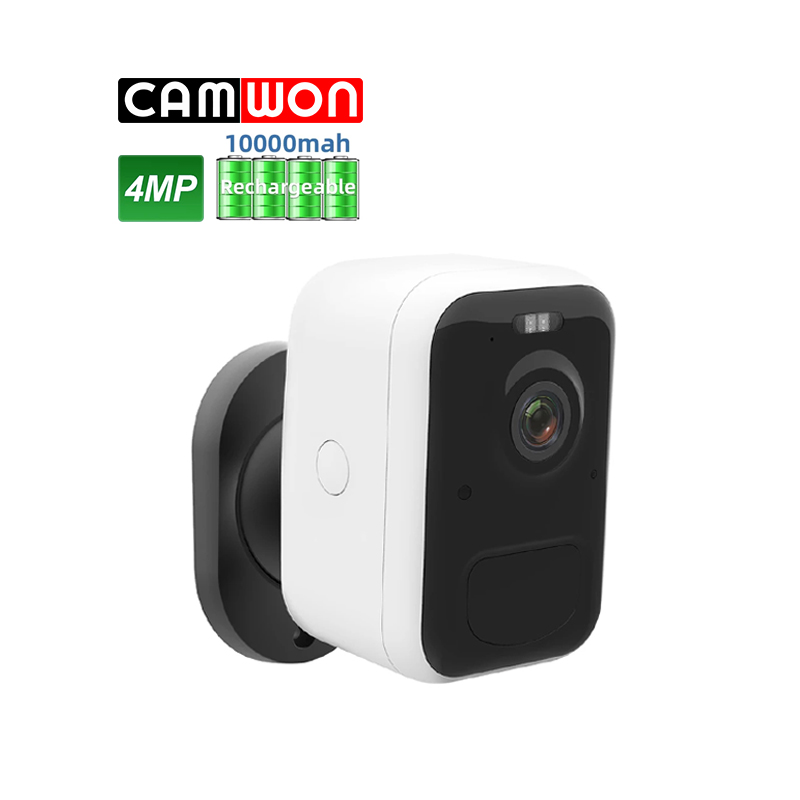

Wifi PIR Battery Camera

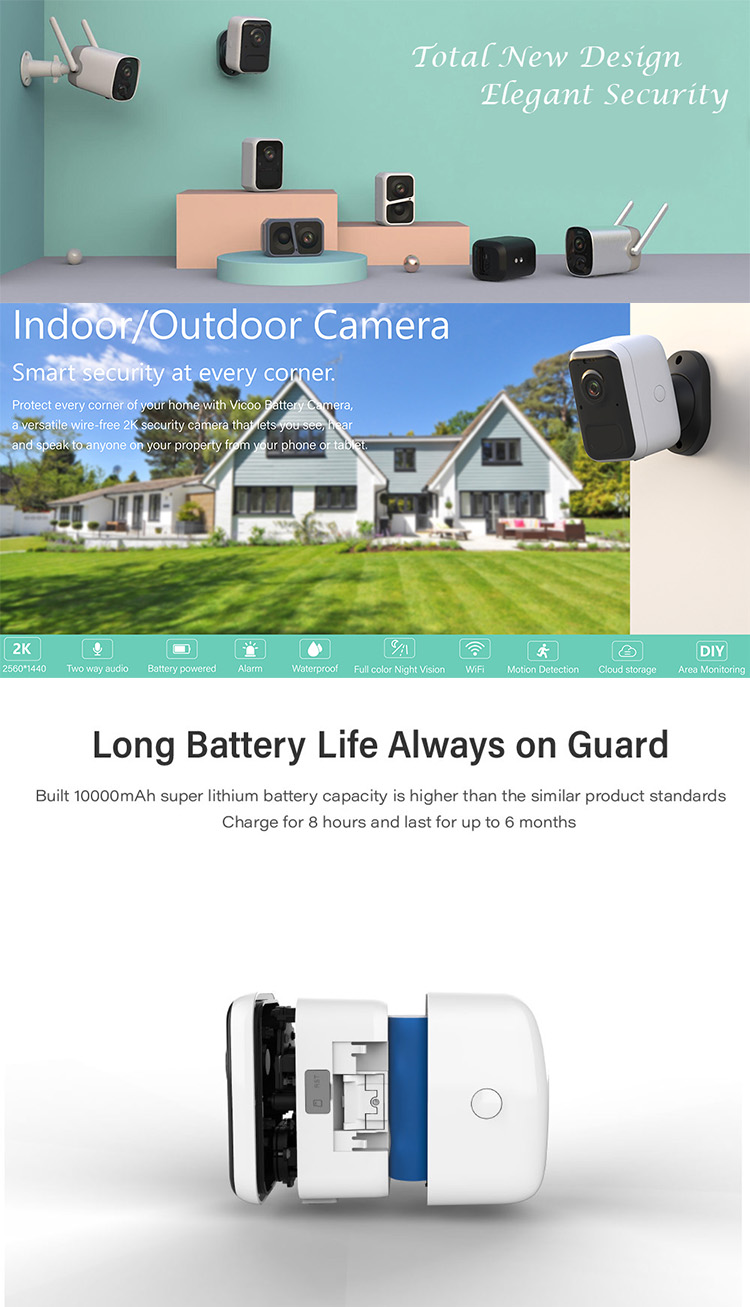

▪ Long Life Battery Wi-Fi Camera (Built-in 10000mAh battery)
▪ With SD Card slot, support SD Card up to 64G
▪ PIR body induction wake-up, and remote positive wake-up
▪ High Quality Dual-Way Audio
▪ Support push alarm to mobile via APP
▪ IP65 resistance to dust and water
| Master Processor | SOC | HI3518E V300: A dominant frequency of 900 MHz |
| DDR | 512M | |
| Image Sensor | Sensor | 1/3" color CMOS Sensor |
| Lens | M12, f: 2.8mm, F2.0, 2-megapixel | |
| Visual Angle | H (horizontal) 95 degrees; V (vertical) 55 degrees; D (diagonal) 110 degrees | |
| Minimum Illumination | 0.01 Lux | |
| Audio | Input/Output | Two-way voice intercom available (built-in microphone and speaker) |
| Audio Compressing Method | AAC | |
| Video | Video Compressing Method | H.265 |
| Lighting Frequency | 50Hz, 60Hz | |
| Image Frame Rate | 15 fps | |
| Maximum Image Resolution | 4MP | |
| Light Source for Night Vision | Mid-power infrared lamp (850nM in wavelength) / dual-source white-light source with an irradiation distance of 7m | |
| Network | Wireless Network | 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna |
| Protocols Supported | TCP/IP, UDP/IP, DHCP, RTMP, MUTP | |
| IP Address Supported | Dynamic IP address supported | |
| AI | Intelligent Features | Human contour detection, activity zone,intelligent push, pet snapshot |
| Alarm Methods | Alarm Notification | Alarm push by mobile APP，white light flashing and alarm sound |
| Wake-up | Wake-up Method | PIR body induction wake-up, and remote positive wake-up |
| Video Recording | Recording Method | Alarm triggered recording, and manual recording |
| Video Storage | Cloud storage, local MICRO SD card, and mobile phone memory | |
| Indicator Lamps | LED Indicator | RGB tri-color lamp indicating the status of power/network signal/functionality |
| Battery | Capacity | 10000mAh |
| Removability | Unremovable | |
| Battery Life | 6 months (provided that 20 10s videos are recorded per day) | |
| Standby Time | 1 year | |
| Charging Voltage | DV 5V+-5%/1.5A | |
| Charge Time | Within 8 hours | |
| Protection Method | IP65 resistance to dust and water; over-current/over-discharge/over-charge/short circuit/charging protection at high & low temperatures | |
| Power Consumption | Standby Power Consumption | 2.4mW (3.8V 0.63mA) |
| Power Consumption of Daytime Operation | 1W (3.8V 264mA) | |
| Power Consumption of Operation at Night | 2.23W (3.8V 588mA) | |

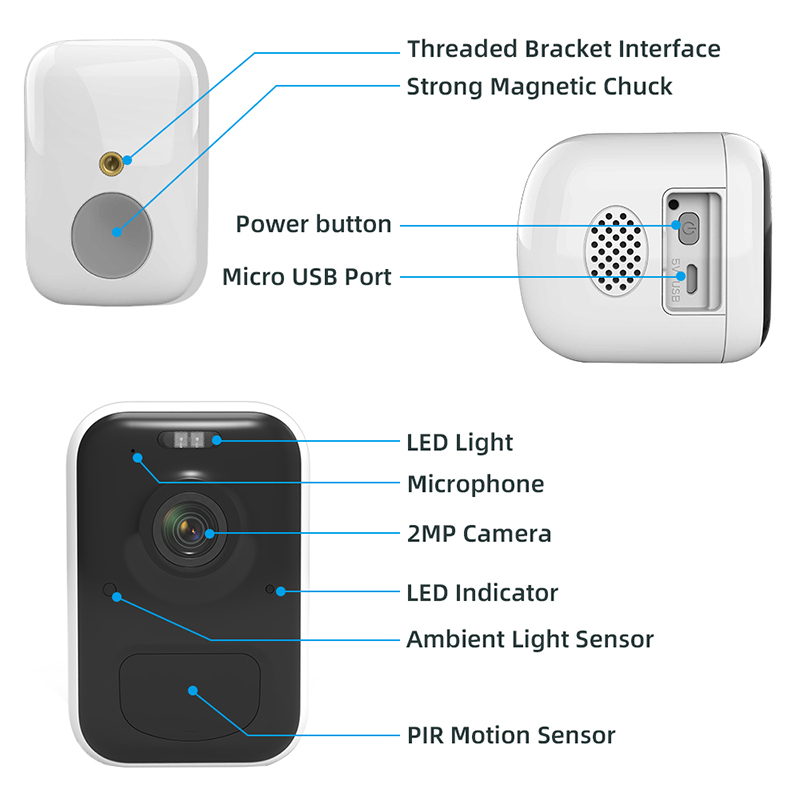

| Interfaces | Power Supply | 1 MICRO USB interface |
| SD Card | 1 MICRO SD card (up to 128GB supported) | |
| Keys | 1 reset key and 1 on/off key | |

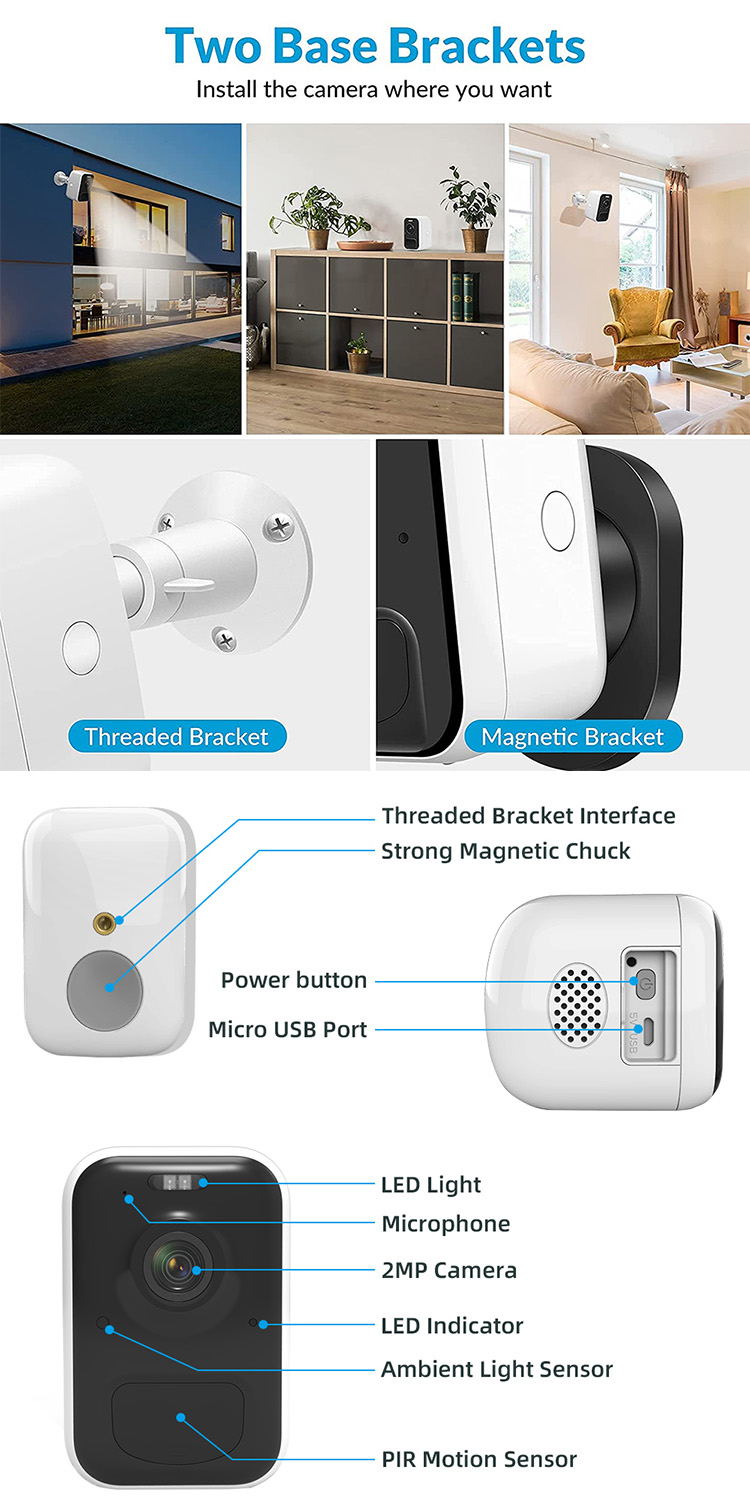

| Installation Method | Installation Method | Magnet and 1/4 universal screw holes |
| Environment | Dustproof and Waterproof | IP65 |
| Operating Environment | -10°~45°C / 0%~80% (no condensation) | |
| Storage Environment | -20°C~60° / 0%~90% (no condensation) | |

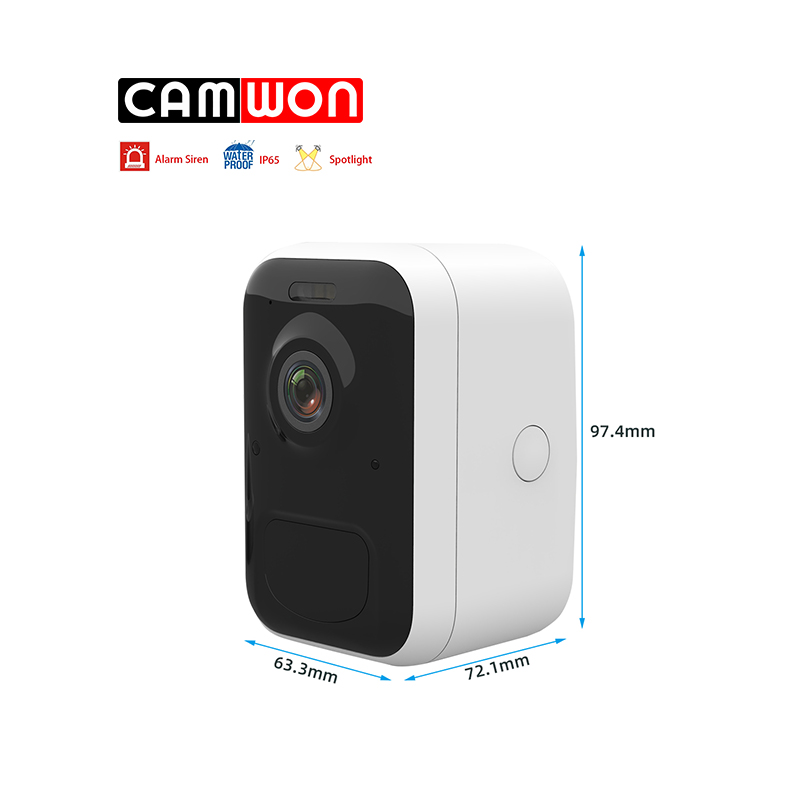

| Specifications | Size (LxWxH) | 72.1mm×63.3mm×97.4mm (with bracket excluded) |
| Net Weight of Bare Machine | Approx. 350g | |
| Finished Weight | Approx. 570g | |
| Material + Process | ABS + PC | |
| Color | White with high gloss |
