Product Description

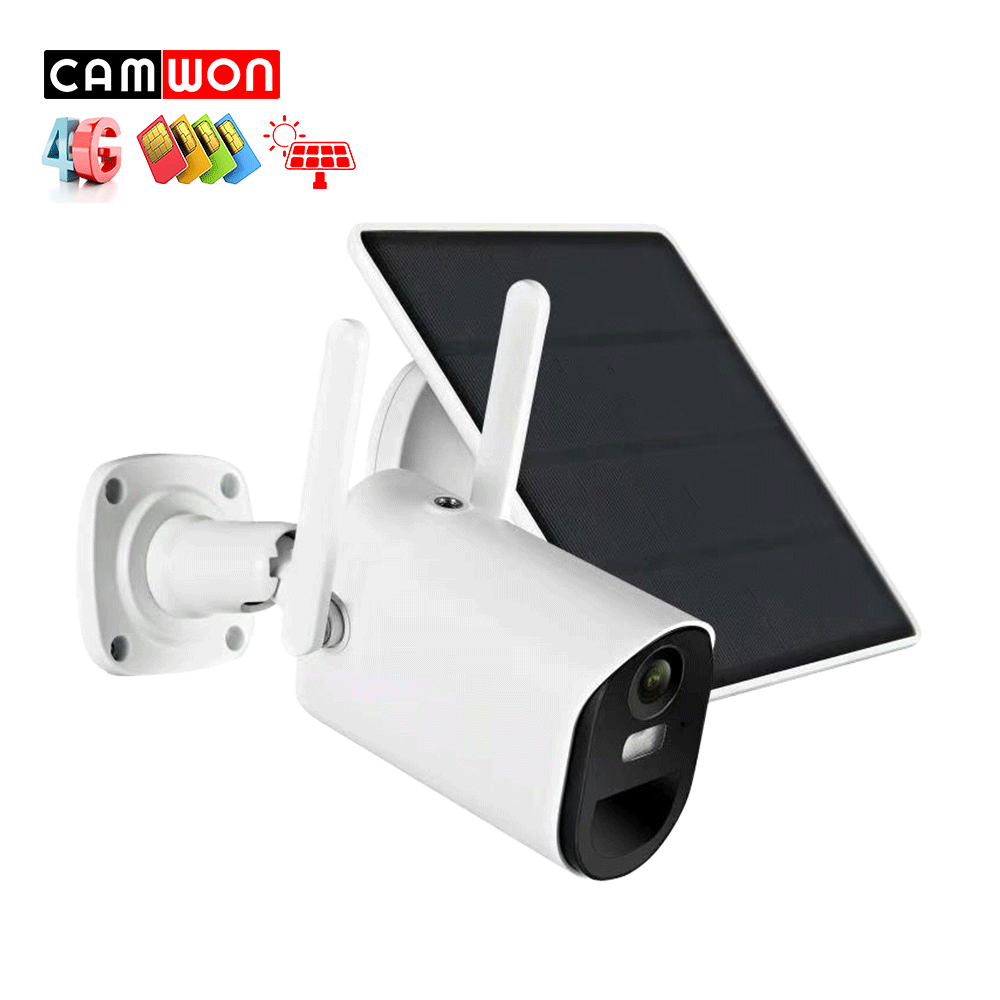

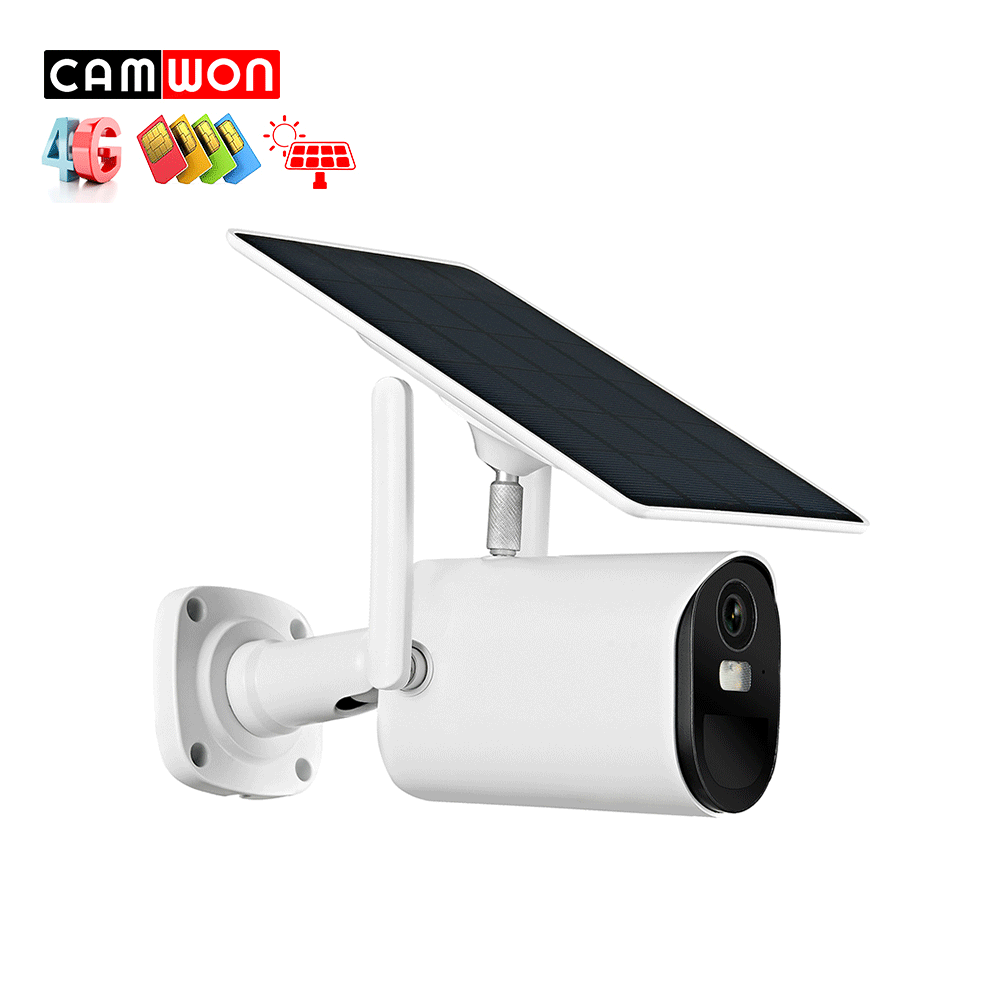

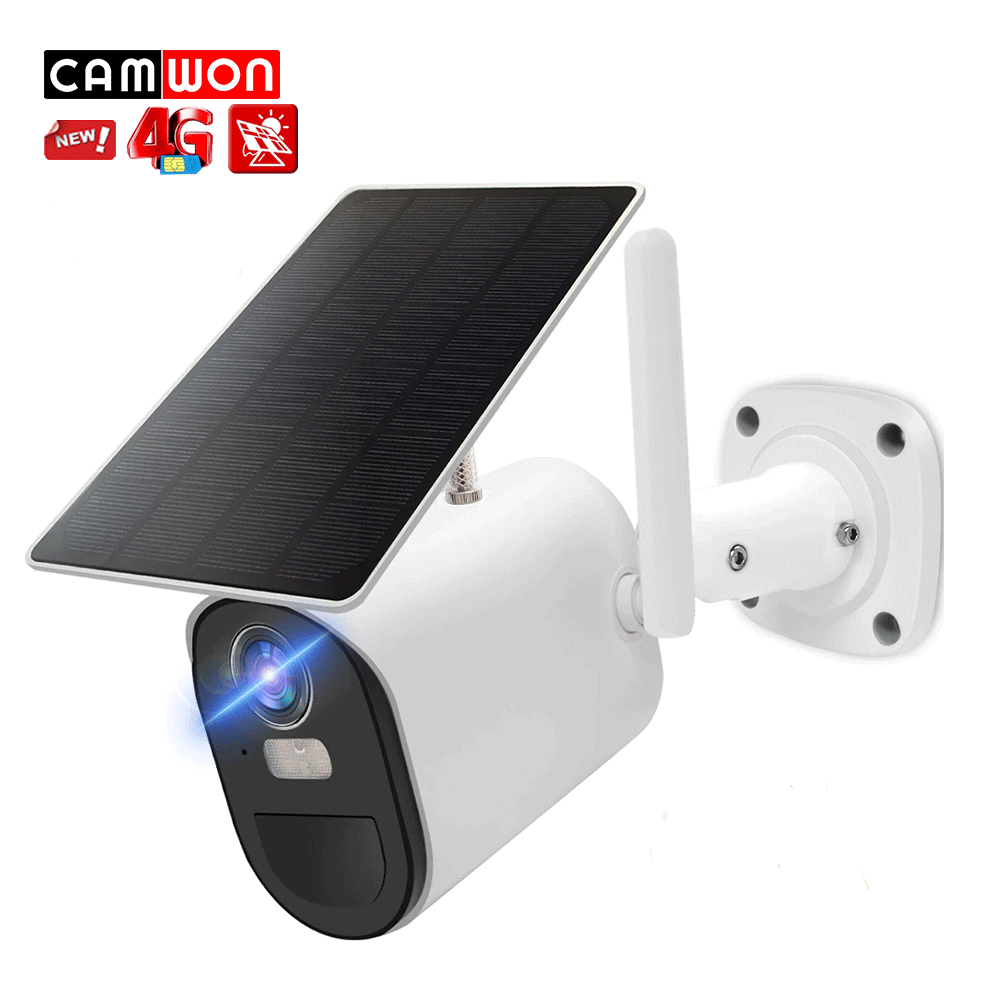

4G Solar Battery Camera
▪ Low power consumption, 6 Month's endurance
(Built-in 3pcs 21700 Battery, total 15,000mAh)
▪ With SD Card slot, support SD Card up to 64G
▪ 110° wide-angle, night vision: 4pcs Infra-Red LED Lights, IR Range: 20M
▪ With LED White Light Alarm
▪ PIR motion sensor accurate motion detection
▪ IP66 Weatherproof Housing
▪ High Quality Dual-Way Audio
| Model No. | WIP-SB200P | |
| APP | Ubox | |
| Main control chip | Ingenic-T31ZL | |
| APP operating system | for Android and for IOS | |
| Sensor | 1/2.7″ Image Sensor | |
| Compression format | H.264+/H.265 | |
| Pixel | 1920*1080 1080P | |
| Networking method | 4G | |
| 4G Mode | ||
| Zone | Module model | Frequency band |
| China/Southeast Asia | SIM7600CE-CNSE | LTE-FDD:B1,3,5,8 LTE-TDD:B34,38,39,40,41 UMTS/HSPA+:B1,8 GSM:900/1800MHz |
| Europe | SIM7600E-H1C | LTE:B1/B3/B5/B7/B8/B20/B38/B40/B41 WCDMA:B1/B5/B8 GSM:900/1800 |
| North America | SIM7600A-H | LTE:B2/B4/B12 WCDMA:B2/B5 |
| Japan | SIM7600JC-H | LTE:B1/B3/B8/B18/B19/B26 |
| Oceania | SIM7600SA-H-MNSE | LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD B40 UMTS/HSDPA/HSPA+ B1/B2/B5/B8 GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Alarm Mode | ||
| Detection mode | PIR motion detection | |
| Detection distance | 0-12M | |
| Detection angel | 105° | |
| Alarm mode | Real-time call to mobile phone or information push | |
| Night Vision Mode | ||
| Full-color night vision | illumination 0.00LUX | |
| Infrared light | Infrared LED; distance 15M | |
| White light | white light LED; distance 15M | |
| Sound | ||
| Built-in speaker | 3W | |
| Built-in microphone | monitoring range 20M | |
| Lens | ||
| Focal length | 2.8mm | |
| Angle | 105° | |
| Storage | ||
| Cloud storage | cloud storage (alarm recording) | |
| Local storage | TF card (max 128G) | |
| Power | ||
| Power supply mode | Solar panel + Built-in 21700 battery | |
| Solar panel material | Monocrystalline silicon | |
| Solar battery power | 3.5W | |
| Battery capacity | Built-in 15,000mAh battery | |
| Working power | 200-250 mA during the day, 400-600 mA at night | |
| Standby power | 0.003W | |
| Others | ||
| Working environment | indoor/outdoor | |
| Working temperature | -30°~+60° | |
| Working humidity | 0%~90%RH | |
| Packing | ||
| Net weight | about 1KG/PC | |
| Color box size | about 208*154*118mm | |
| Packing quantity | 12pcs | |
| Gross weight | 12.5KG | |
| Carton size | 48.5*22.1*1232.5px | |
