Product Description

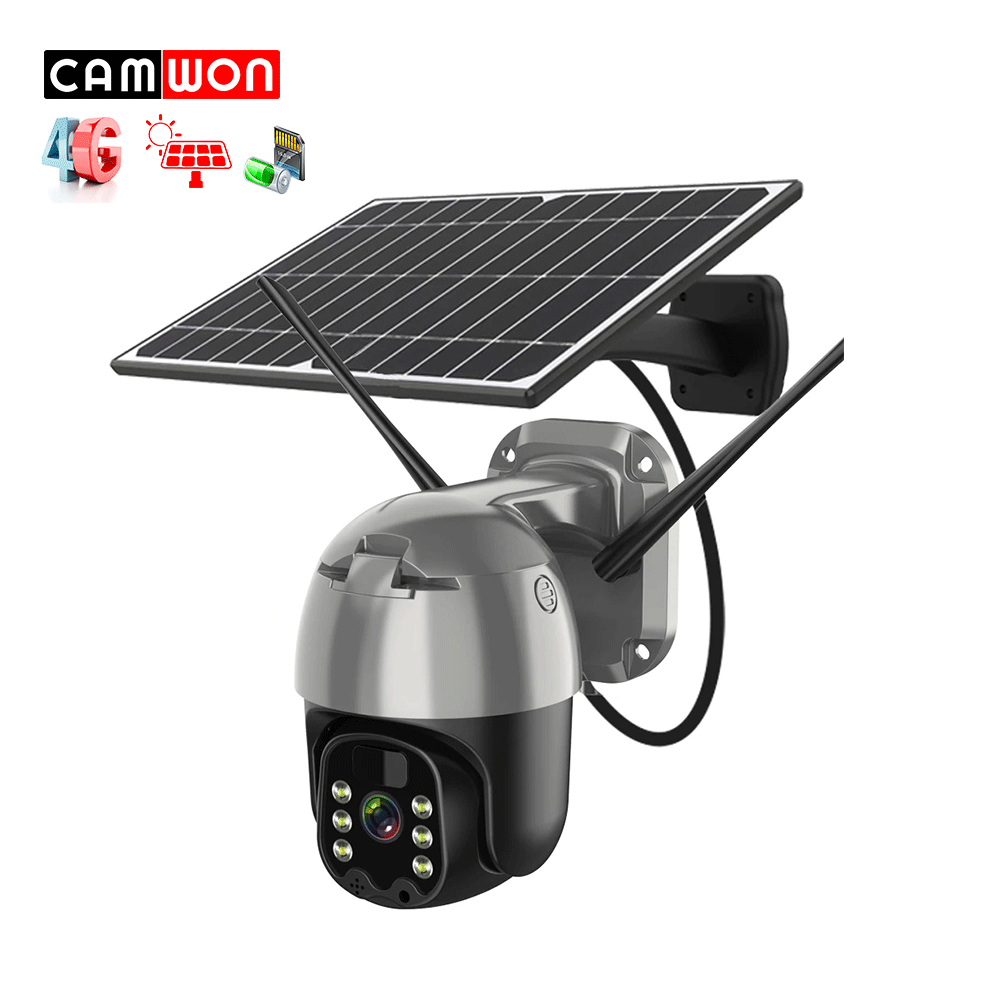

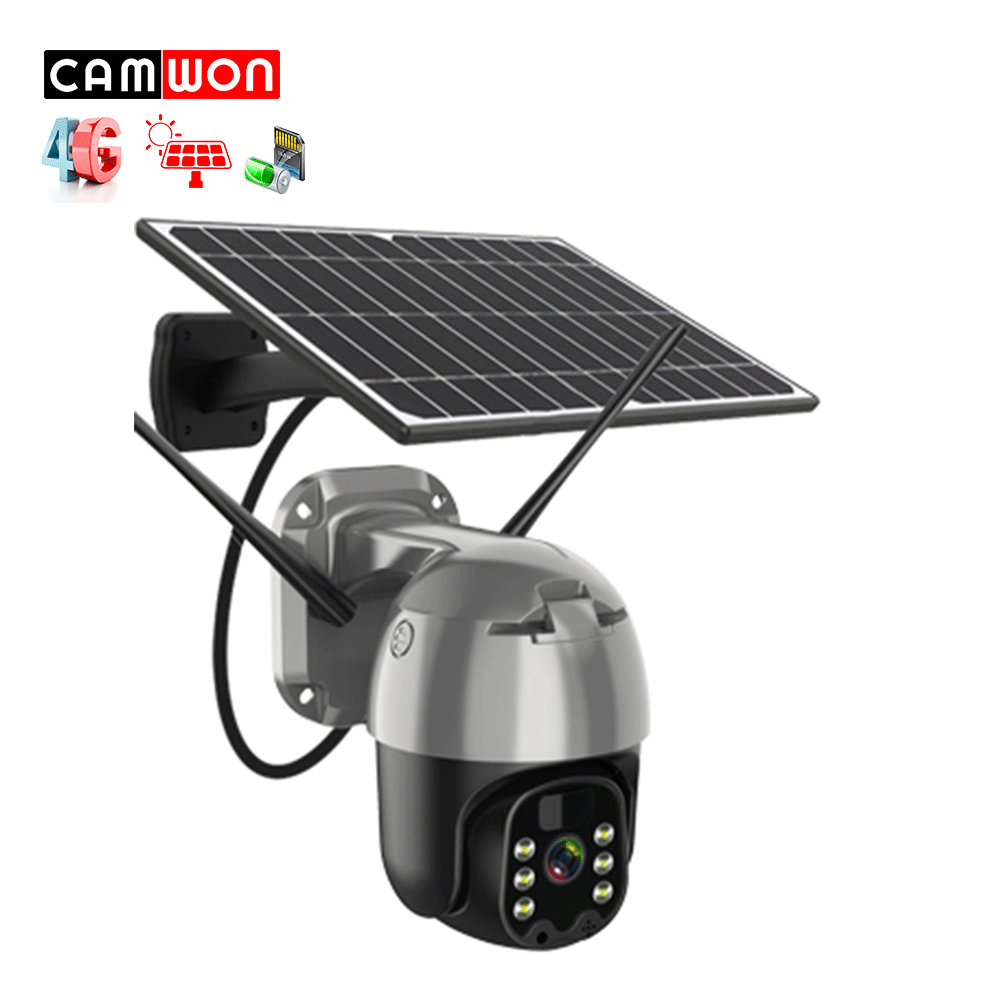

4G Solar PTZ Camera
▪ 5-6 Month's endurance
(Will Need 3 pairs of Battery Model 18650)
▪ With SD Card slot or Cloud storage, support SD Card up to 128G
▪ 110° wide-angle, 6pcs Infra-Red LED Lights, IR Range: 10M
▪ PIR motion sensor accurate motion detection
▪ IP65 Weatherproof Housing

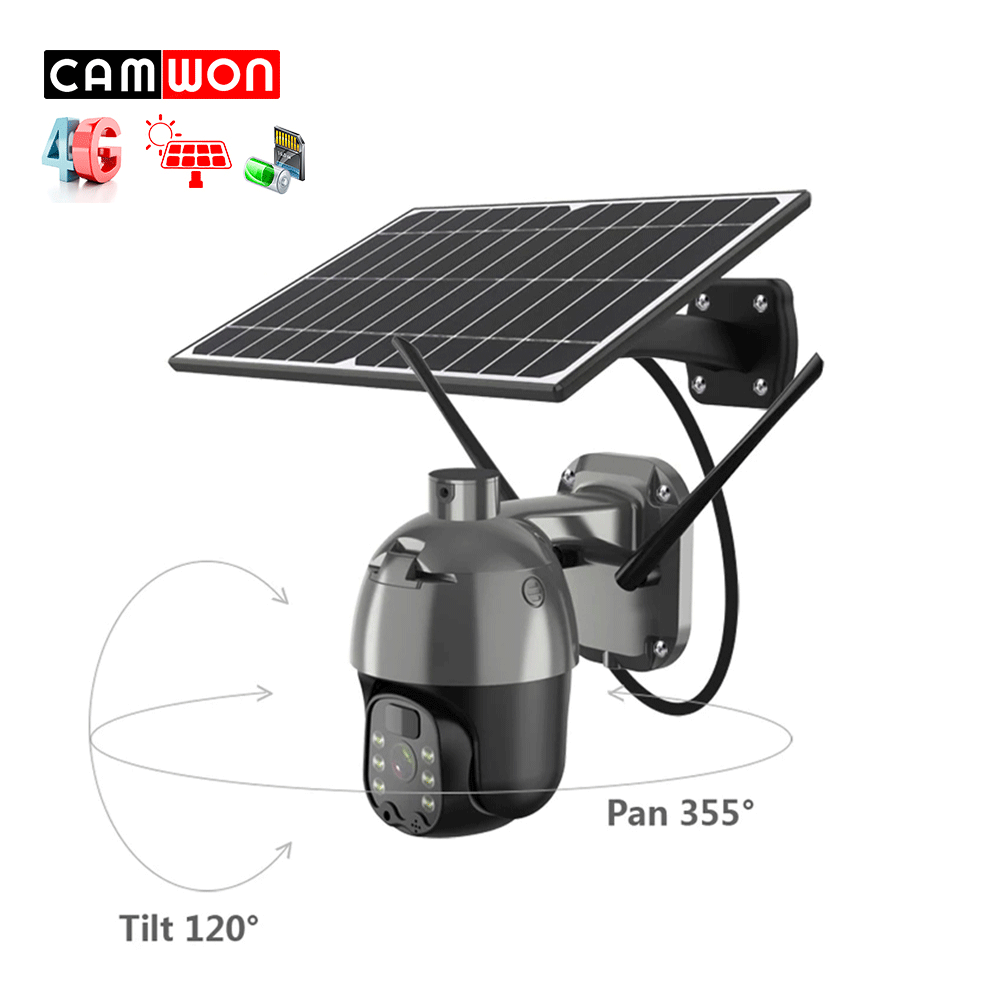

▪ PTZ angle: horizontal: 355°; Vertical: 120°
▪ High Quality Dual-Way Audio
、
| Model No. | WIP-SB200M | |
| APP | Ubox | |
| Main control chip | T31ZL | |
| APP operating system | for Android and for IOS | |
| Sensor | GC2063 Geke Micro Image Sensor | |
| Compression format | H.264+/H.265 | |
| Pixel | 1920*1080 1080P | |
| Networking method | 4G | |
| 4G Mode | ||
| Zone | Module model | Frequency band |
| China/Southeast Asia | SIM7600CE-CNSE | LTE-FDD:B1,3,5,8 LTE-TDD:B34,38,39,40,41 UMTS/HSPA+:B1,8 GSM:900/1800MHz |
| Europe | SIM7600E-H1C | LTE:B1/B3/B5/B7/B8/B20/B38/B40/B41 WCDMA:B1/B5/B8 GSM:900/1800 |
| North America | SIM7600A-H | LTE:B2/B4/B12 WCDMA:B2/B5 |
| Japan | SIM7600JC-H | LTE:B1/B3/B8/B18/B19/B26 |
| Oceania | SIM7600SA-H-MNSE | LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD B40 UMTS/HSDPA/HSPA+ B1/B2/B5/B8 GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Alarm Mode | ||
| Detection mode | PIR + radar dual induction detection | |
| Detection distance | 0-12M | |
| Detection angel | 120° | |
| Alarm mode | Double induction and confirm pushes alarm information to mobile phone | |
| PTZ | ||
| PTZ angle | horizontal: 355°; Vertical: 120° | |
| Speed | 55°/s; vertical: 40°/s | |
| Night Vision Mode | ||
| Full-color night vision | illumination 0.00001LUX | |
| Infrared light | Infrared LED; distance 30M | |
| White light | white light LED; distance 30M | |
| Sound | ||
| Built-in speaker | 3W | |
| Built-in microphone | monitoring range 20M | |
| Lens | ||
| Focal length | 4mm | |
| Angle | 120° | |
| Storage | ||
| Cloud storage | cloud storage (alarm recording) | |
| Local storage | TF card (max 128G) | |
| Power | ||
| Power supply mode | 8W solar panel + 3.7V 18650 battery | |
| Solar battery power | 5W | |
| Battery capacity | maximum support 6pcs 18650 batteries (6*2500mA=15000mA) | |
| Working power | 200-250 mA during the day, 400-600 mA at night | |
| Standby power | 700mA | |
| Others | ||
| Working environment | indoor/outdoor | |
| Working temperature | -30°~+50° | |
| Working humidity | 0%~80%RH | |
| Net weight | about 1.84KG/PC | |
| Color box size | about 288*203*170 mm | |
