Product Description

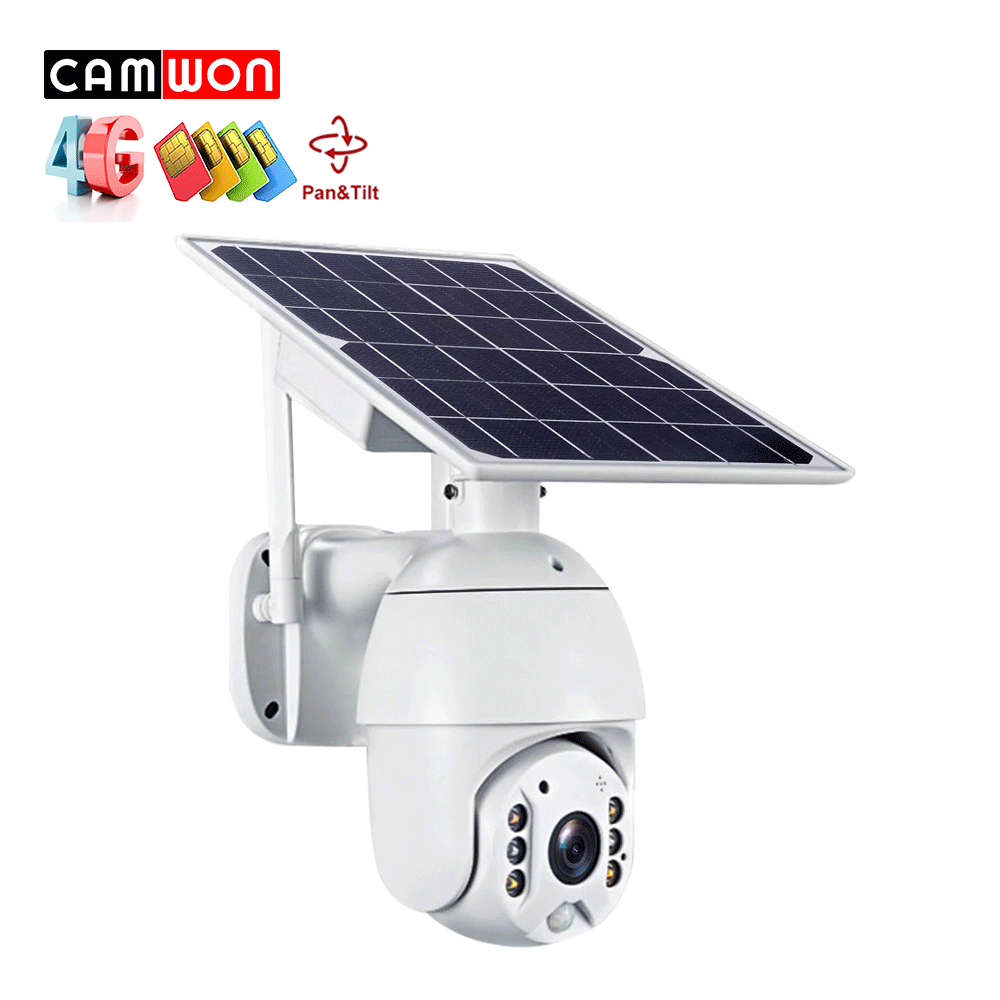

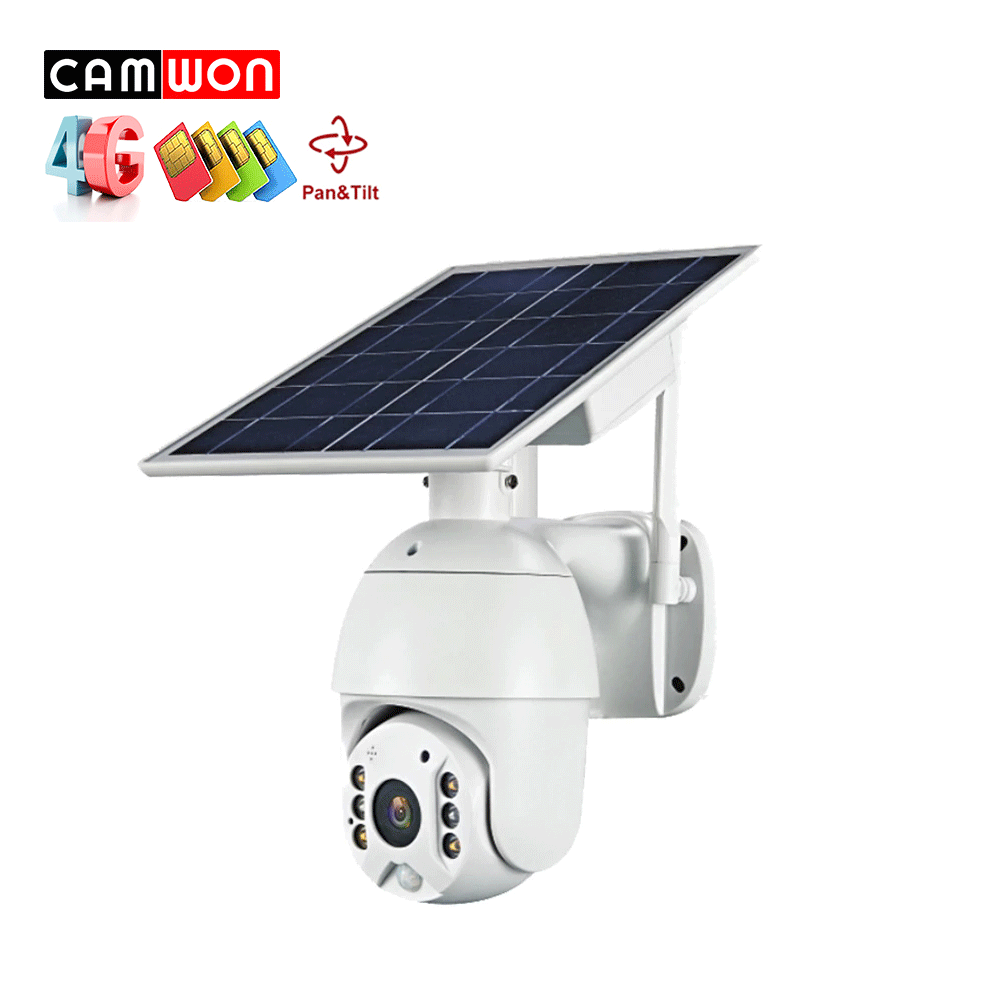

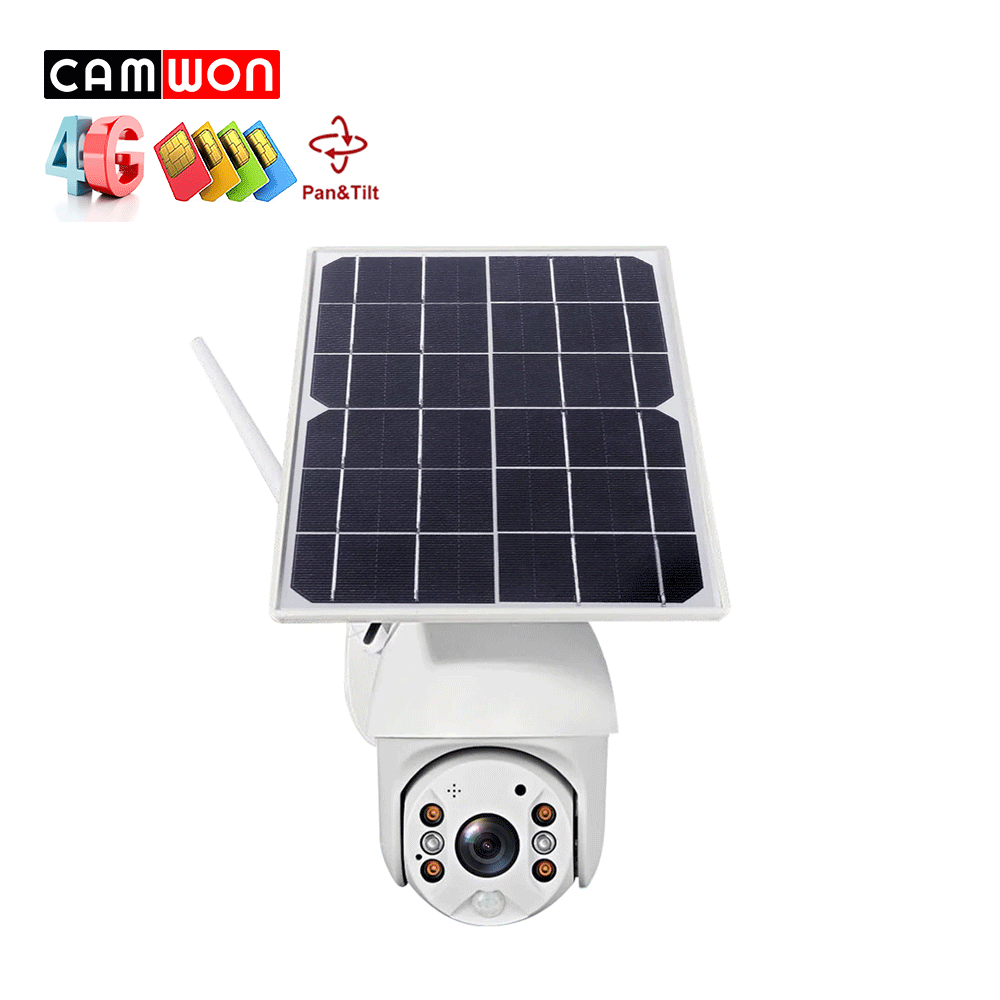

4G Solar PTZ Camera
▪ 5-6 Month's endurance
(Will Need 3 pairs of Battery Model 18650)
▪ With SD Card slot or Cloud storage, support SD Card up to 128G
▪ 110° wide-angle, 6pcs Infra-Red LED Lights, IR Range: 10M
▪ PIR motion sensor accurate motion detection
▪ IP65 Weatherproof Housing
▪ PTZ angle: horizontal: 355°; Vertical: 120°
▪ High Quality Dual-Way Audio
、
| Model No. | WIP-SB200J | |
| APP | Ubox | |
| Main control chip | GC2063+Hi3518EV300 | |
| APP operating system | for Android and for IOS | |
| Sensor | 1/2″ Image Sensor PS5280LT | |
| Compression format | H.264+/H.265 | |
| Pixel | 1920*1080 1080P | |
| Networking method | 4G | |
| 4G Mode | ||
| Zone | Modul | Frequency band |
| Southeast Asia | SIM7600CE-CNSE | LTE-FDD: B1, 3, 5, 8 LTE-TDD: B34, 38, 39, 40, 41 UMTS/HSPA+: B1, 8 GSM: 900/1800MHz |
| Europe | SIM7600E-H1C | LTE: B1/B3/B5/B7/B8/B20/B38/B40/B41 WCDMA: B1/B5/B8 GSM: 900/1800 |
| North America | SIM7600A-H | LTE: B2/B4/B12 WCDMA: B2/B5 |
| Japan | SIM7600JC-H | LTE: B1/B3/B8/B18/B19/B26 |
| Oceania | SIM7600SA-H-MNSE | LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TFF B40 UMTS/HSDPA/HSPA + B1/B2/B5/B8 GSM/GPRS/EDGE 850/900/1800/1900MHz |
| Alarm Mode | ||
| Detection mode | PIR + radar dual induction detection | |
| Detection distance | 0-12M | |
| Detection angel | 120° | |
| Alarm mode | Double induction and confirm pushes alarm information to mobile phone | |
| PTZ | ||
| PTZ angle | horizontal: 355°; Vertical: 120° | |
| Speed | 55°/s; vertical: 40°/s | |
| Night Vision Mode | ||
| Full-color night vision | illumination 0.00001LUX | |
| Infrared light | Infrared LED; distance 30M | |
| White light | white light LED; distance 30M | |
| Sound | ||
| Built-in speaker | 3W | |
| Built-in microphone | monitoring range 20M | |
| Lens | ||
| Focal length | 3.6mm | |
| Angle | 120° | |
| Storage | ||
| Cloud storage | cloud storage (alarm recording) | |
| Local storage | TF card (max 128G) | |
| Power | ||
| Power supply mode | solar + 18650 battery | |
| Solar cell power | 8W | |
| Battery capacity | maximum support 6pcs 18650 batteries (6*2500mA=15000mA) | |
| Maximum working power | 4W | |
| Standby power | 0.003W | |
| Others | ||
| Working environment | indoor/outdoor | |
| Working temperature | -30°~+60° | |
| Working humidity | 0%~90%RH | |
| Net weight | about 1.84KG/PC | |
| Color box size | about 287*201*172 mm | |
