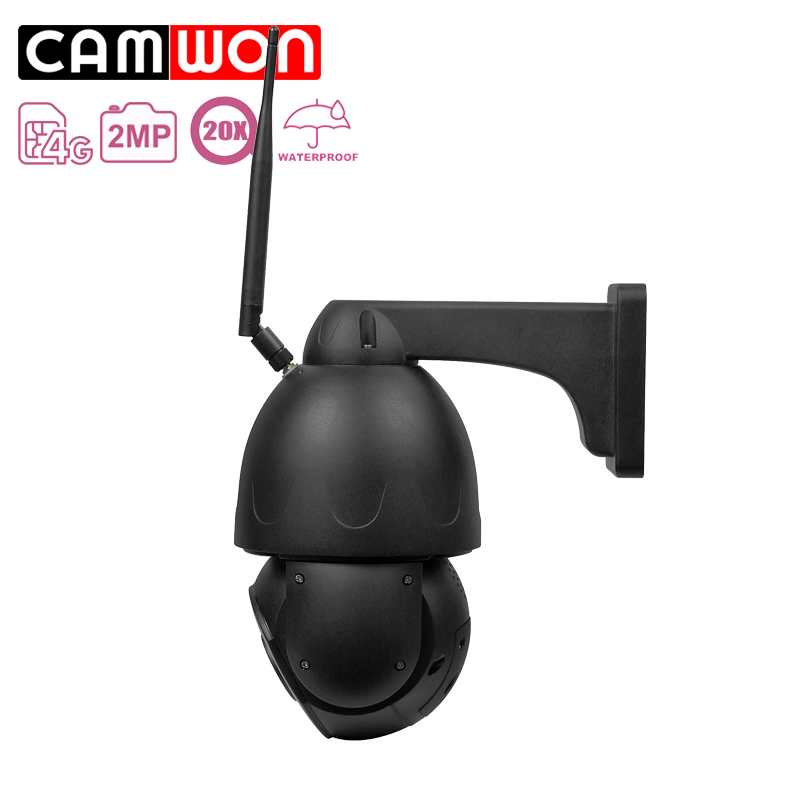

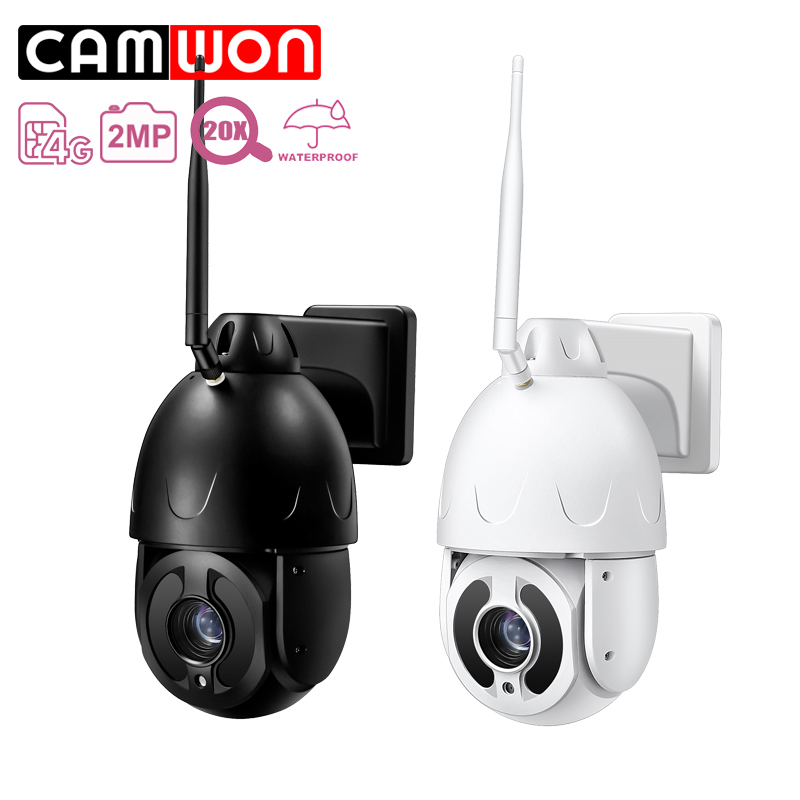

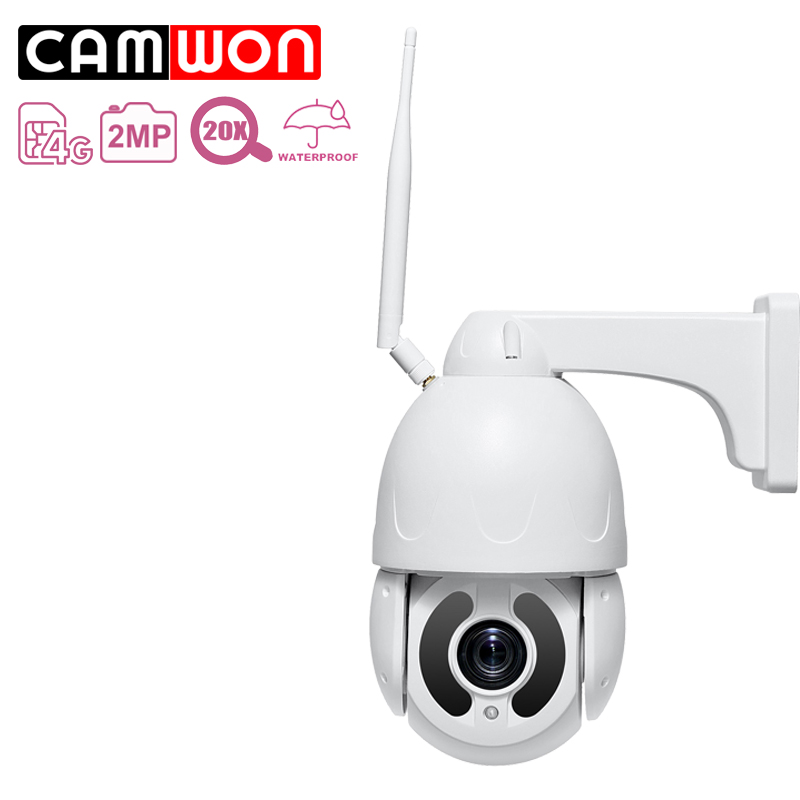

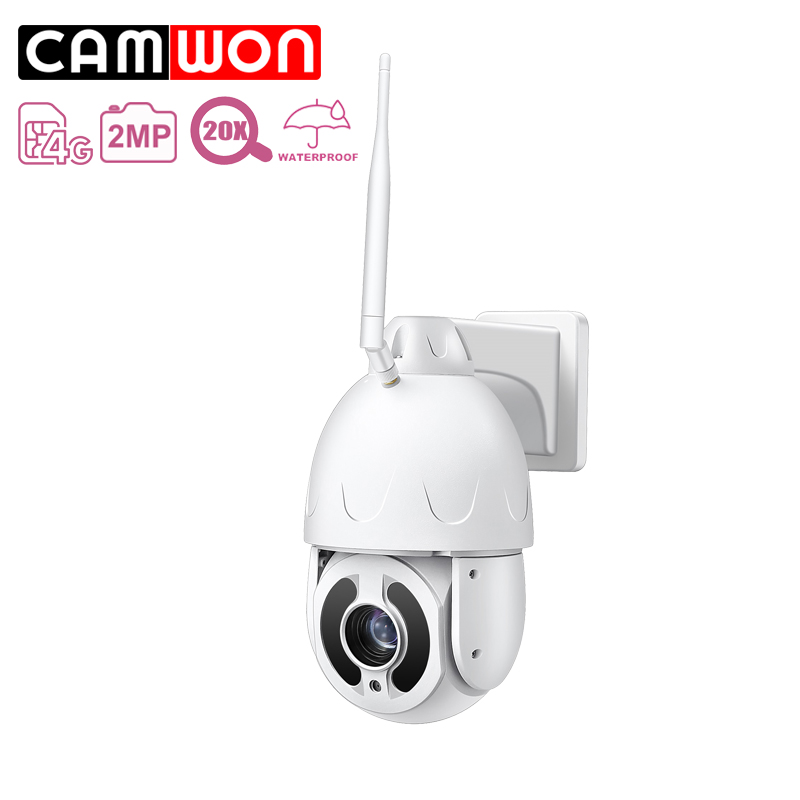

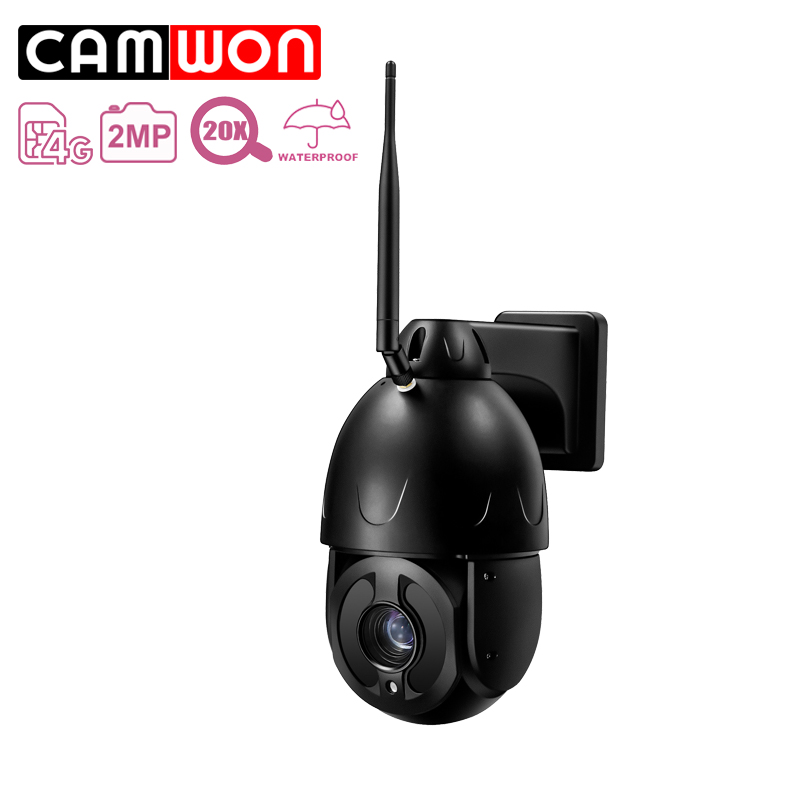

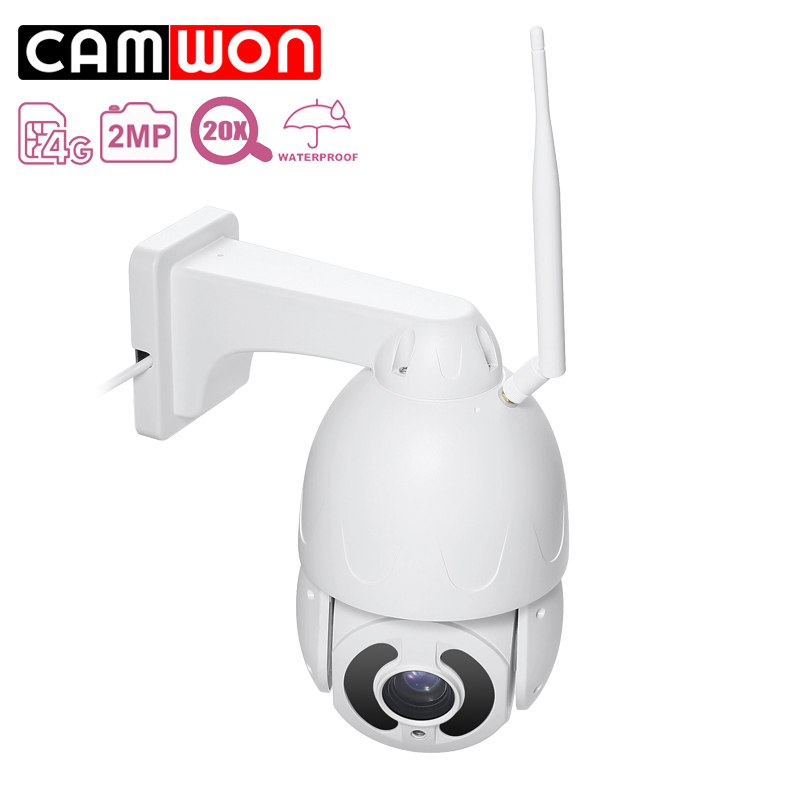

4G 20X 2MP/5MP PTZ Camera
• Lens: 20X Optical Zoom (4.7-94mm)
• AI Human Zoom Tracking
• Night vision: 80 meters (8pcs IR Array)
• Support ONVIF, CMS PC client software
• Vandalproof Aluminum Shell, IP66 Waterproof
Model | PTZW-IPM4G20S200A | PTZW-IPM4G20S500A | |
APP | Camhi pro / Camhi | ||
Video | Sensor | 2.0 megapixel 1/2.8" SONY307 star light CMOS | |
Video resolution | Main stream: 1920x1080@18fps, 1280x720@25fps Sub stream: 640x352@25fps, 320x176@25fps | Main stream: 2560x1920@15fps, 2560x1440@15fps Sub stream: 800x600/800x448@25fps, 640x480/640x352@25fps | |
Video compression | H.264/H.265 | ||
Lens | 4.7-94mm 20X optical zoom auto focus lens | ||
View angle | 61.4°~3.6° | ||
Night vision | 6pcs array infrared LEDs, night vision distance 100m | ||
Audio | Audio compression | G.726/G.711 | |
Audio code rate | 8Kbps, 16bit | ||
Audio input | Built-in MIC and speakers, support two way audio | ||
Audio output | Support, can connect speakers | ||
Audio | Audio compression | G.726/G.711 | |
Audio code rate | Rate adaptive | ||
Audio input | Support, can connect the pickup and MIC | ||
Audio output | Support, can connect speakers | ||
Alarm | Motion detecting alarm | Can set 4 independent detection region (1-100 sensitivity can be set) | |
Alarm linkage | Alarm send pictures to the mailbox, Alarm upload pictures and videos to the FTP server, Alarm record pictures and videos to Micro SD card, Alarm mobile phone message push | ||
Alarm recording | Support Micro SD card and PC client linkage alarm recording | ||
4G (Africa, Asia, EU) | 4G standard | FDD-LTE/TDD-LTE | |
4G frequency range | B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz), B38(2600MHz), B40(2300MHz), B41(2500MHz) | ||
Interface type | Micro SIM card, Plug and play, no need to set | ||
4G(US) | 4G standard | FDD-LTE | |
4G frequency range | B1(2100MHz), B2(1900MHz), B12(700MHz), B13(700MHz) | ||
Interface type | Micro SIM card, Plug and play, no need to set | ||
Storage | Micro SD card | Support up to 128G micro SD card | |
Recording mode | Alarm record, timing record, | ||
Video playback | Support APP, IE browser, remote client play and download the video | ||
PTZ | Rotation angle | Horizon: 0°~355°, Vertical: 0°~90° | |
Horizontal speed | 20°~ 40°/S | ||
Vertical speed | 10°~ 20°/S | ||
Preset | Support 8 preset points | ||
General specification | Power | DC12V 2A | |
Operating environment | Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%~90%, non-condensing | ||
Waterproof level | IP66 | ||
Product size | 190mm×130mm×235mm(L×W×H) | ||
Product weight | 1.4kg | ||
Package size | 275mmx230mmx170mm(L×W×H) | ||
Package weight | 2.0kg | ||
Reset button | Support |
